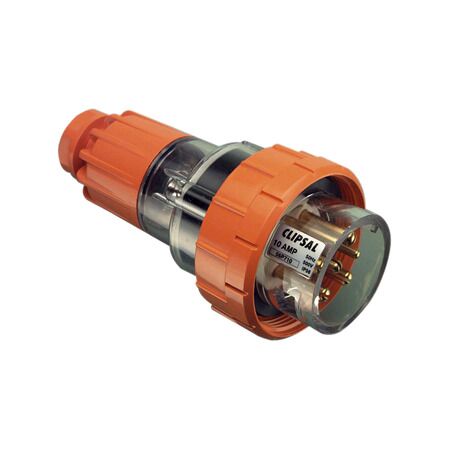

Industrial Straight Plug 500V 10A | IP66 Rated | 7 Round Pins | Electric Orange by Clipsal
Industrial straight plug with 500V 10A rating and IP66 protection—ideal for machinery and equipment. Built for industrial and commercial use, with secure screw terminal connections and durable polycarbonate housing.
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Straight Plug, IP66, 500V 10A - 7 Round PinsElectric Orange
Brand: Clipsal
SKU: 56P710-EO
Alternatively Known As: Industrial Plug, 3 Phase Plug, Heavy Duty Plug
- Rated current: 10A
- Rated operational voltage: 500V AC 50Hz
- Material: Polycarbonate housing with brass pins
- Cable entry: Cable gland
- Poles description: 3P + N + E
- Thread type: M25
- Pin arrangement: W
- Dimensions (H x L x W): 78mm x 167mm x 78mm
- Weight: 0.363 kg
- IP66 rated for protection against dust and water
- Rated operational voltage of 500V AC 50 Hz
- Screw terminal connections for secure wiring
- Professional installation is recommended for optimal safety and compliance.
- Industrial: Power supply for machinery and equipment
- Commercial: Suitable for small commercial applications
- Complies with AS/NZS 3123 for safety and performance standards.
- Compliant with RoHS directives and environmental standards.
Standard warranty applies.
The Clipsal 56 Series Straight Plug is available now for immediate purchase. Ideal for industrial and commercial applications.
