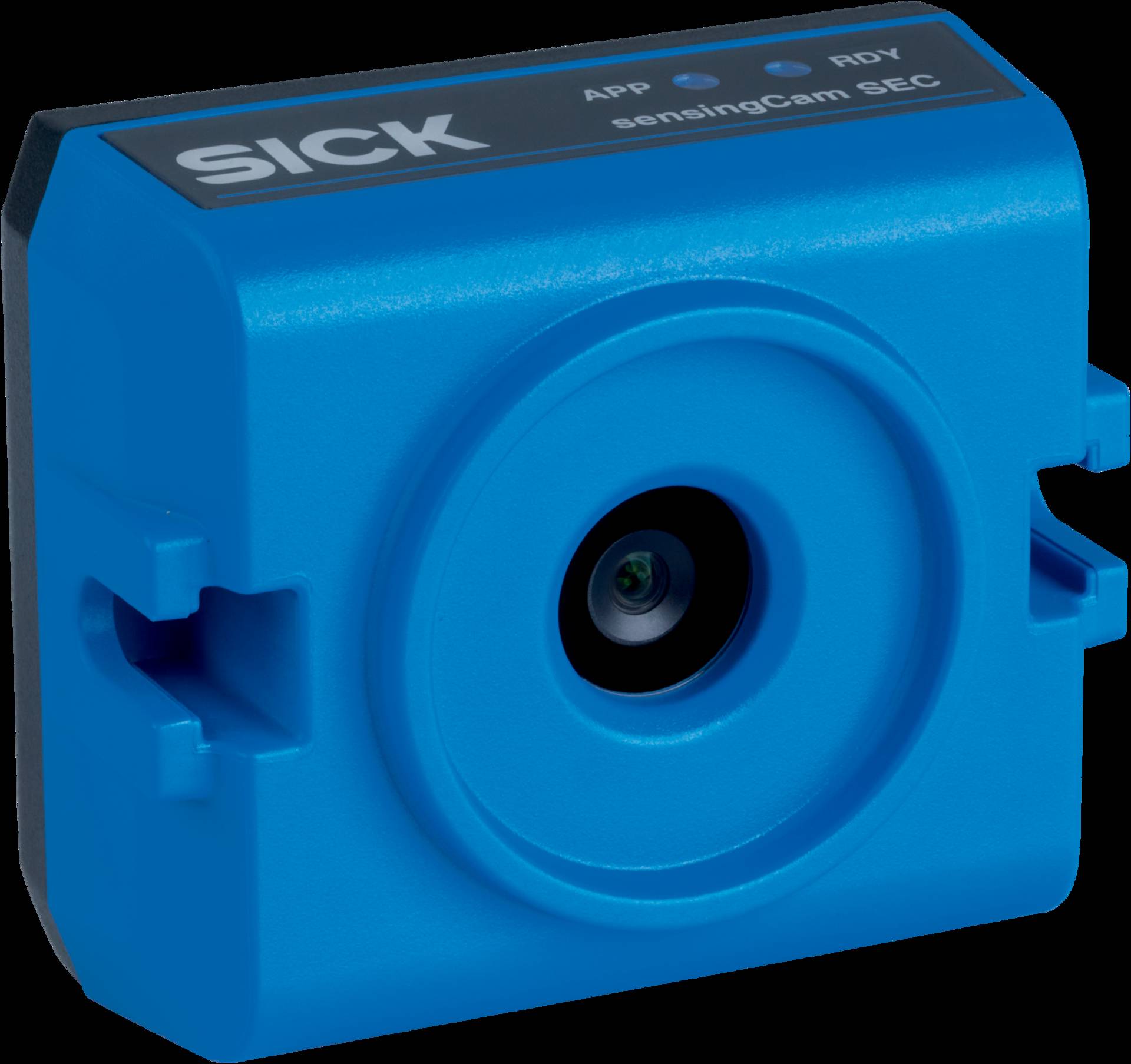

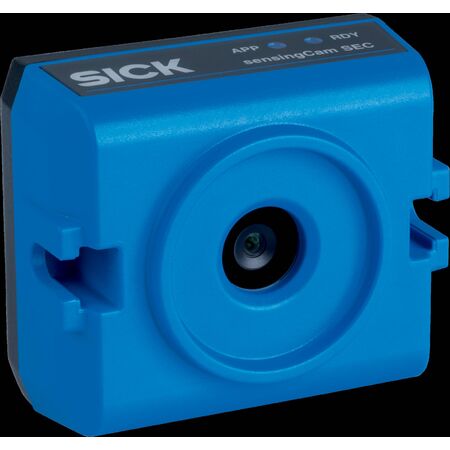

Industrial Streaming Camera sensingCam SEC100 | 5 Megapixel | IP65 Rated | RTSP & MJPEG Streaming | by SICK
The sensingCam SEC100 is an industrial streaming camera featuring a 5 megapixel color sensor and supports RTSP and MJPEG streaming formats. Ideal for industrial process monitoring and quality documentation, it records event videos 40 seconds before and after an event, ensuring critical moments are captured. With an IP65 rated housing and versatile mounting options, this camera is built for rugged environments and professional applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Industrial Streaming Camera sensingCam SEC100 | 5 Megapixel | IP65 Rated | RTSP & MJPEG Streaming | by SICK
Brand: SICK
SKU: 1144993
Alternatively Known As: Industrial streaming camera, Machine vision camera, Event recording camera, Process monitoring camera
Technical Specifications
- 5 megapixel color camera
- Streaming formats: RTSP, MJPEG
- Communication interfaces: REST API, Ethernet
- Technology: 2D snapshot, streaming, event recording
- Minimum working distance: 300 mm
- Maximum working distance: 10000 mm
- IP65 enclosure rating
- Mounting: M4 screws or ¼-inch camera thread
- Dimensions (H x L x W): 70mm x 120mm x 70mm
- Weight: 0.5 kg
Key Features
- Recording of event videos 40 seconds before and 40 seconds after an event
- 5 megapixel color camera with RTSP or MJPEG stream
- Acquired images can be saved on the device or transferred to a server via FTP
- Integrated web server for easy access
- Rugged IP65 rated housing with protected optics and M12 connections
- Mounting options with M4 screws or ¼-inch camera thread
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with industrial systems and network configuration.
Applications
- Industrial process monitoring
- Quality documentation
- Error analysis and root cause investigation
- Machine vision applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables efficient monitoring reducing downtime and waste
- Supports digital documentation reducing paper use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The sensingCam SEC100 by SICK is available now for immediate purchase. Ideal for industrial process monitoring, quality documentation, and error analysis applications.
