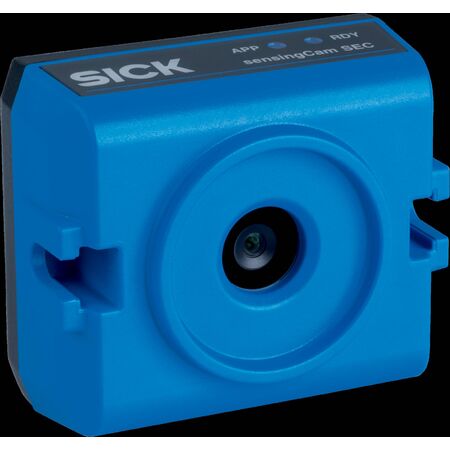

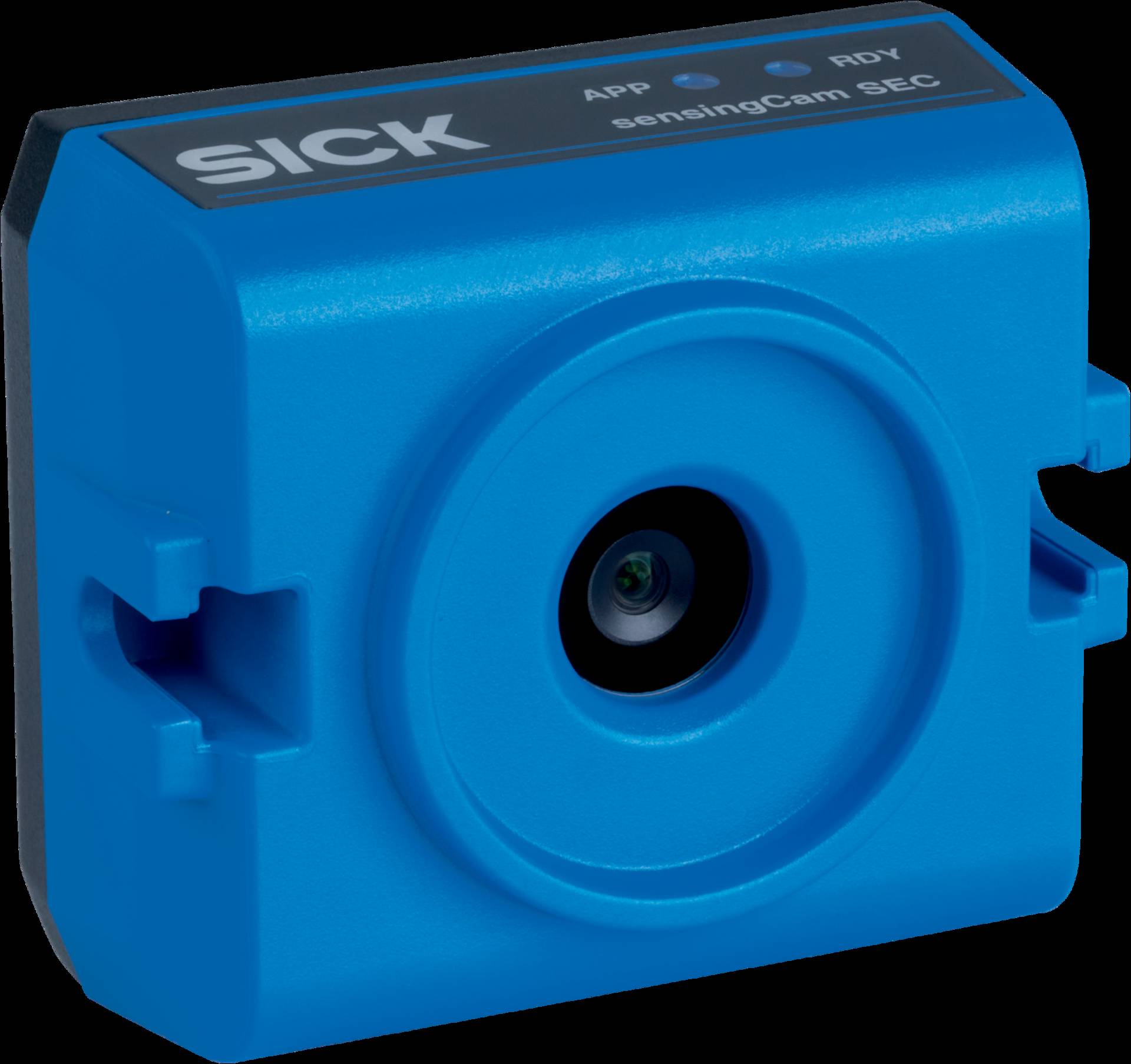

Industrial Streaming Camera sensingCam SEC100 | 5 Megapixel Color | IP65 Rated | by SICK
The sensingCam SEC100 is an industrial streaming camera featuring a 5 megapixel color sensor and supports RTSP and MJPEG streaming formats. Ideal for industrial process monitoring and quality documentation, it offers integrated image recording and event video capture, ensuring you never miss critical moments. With its rugged IP65 rated housing and M12 connections, this camera is built for durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Industrial Streaming Camera sensingCam SEC100 | 5 Megapixel Color | IP65 Rated | by SICK
Brand: SICK
SKU: 1143217
Alternatively Known As: Industrial streaming camera, Machine vision camera, Process monitoring camera, Event recording camera
Technical Specifications
- 5 megapixel color camera
- Streaming formats: RTSP, MJPEG
- Communication interfaces: REST API, Ethernet
- Technology: 2D snapshot and streaming
- Minimum working distance: 300 mm
- Maximum working distance: 10000 mm
- Integrated image recording and event video recording
- IP65 rated rugged housing with protected optics and M12 connections
- Dimensions (H x L x W): 70mm x 120mm x 70mm
- Weight: 0.5 kg
Key Features
- Recording of event videos 40 seconds before and 40 seconds after an event
- 5 megapixel color camera with RTSP or MJPEG stream
- Acquired images can be saved on the device or transferred to a server via FTP
- Integrated web server for easy access
- Rugged IP65 rated housing with protected optics and M12 connections
- Mounting options with M4 screws or ¼-inch camera thread
Professional Installation Requirements
- Professional installation by qualified personnel recommended to ensure proper network integration and secure mounting.
Applications
- Industrial process monitoring
- Quality documentation
- Error and event analysis in manufacturing
- Machine vision for automation
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables efficient process monitoring reducing waste and downtime
- Supports predictive maintenance to extend machine life and reduce resource consumption
Warranty Information
Standard manufacturer warranty of 1 year covering defects and malfunctions.
Available Now
The sensingCam SEC100 by SICK is available for immediate purchase, ideal for industrial process monitoring and quality control applications.
