Trade Discount 33%

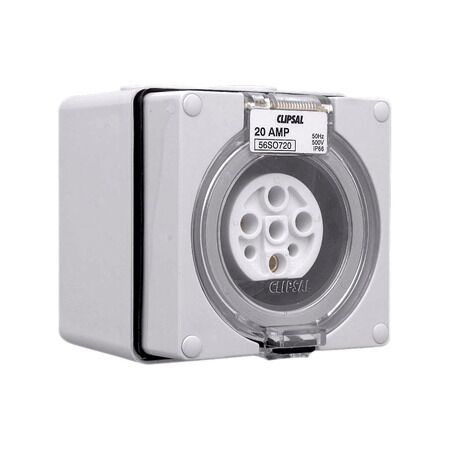

Industrial Surface Socket 20A 500V | IP66 Rated | 7 Round Pins Grey by Clipsal
Industrial surface socket with 20A and 500V rating—ideal for machinery and equipment power supply. Built for industrial use, with IP66 dust and water resistance and easy surface mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Surface Socket, IP66, 500V 20A - 7 Round Pins Grey
Brand: Clipsal
SKU: 56SO720-RO
Alternatively Known As: Clipsal 56 Series Socket, Industrial Surface Socket, 20A Power Socket
Technical Specifications
- Rated current: 20A
- Rated operational voltage: 500V AC 50Hz
- Socket number: 1
- Outlet standard: Industrial
- Poles description: 3P + N + E
- Material: Polycarbonate cover, Brass screws
- Tightening torque: 0.8 N.m
- Ambient air temperature for operation: -25...75 °C
- Dimensions (H x L x W): 107mm x 102mm x 101mm
- Weight: 0.62 kg
Key Features
- IP66 rated for dust and water resistance.
- Rated for 20A and 500V AC operation.
- Surface mounting design for easy installation.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Industrial: Power supply for machinery and equipment
- Utility: Suitable for small commercial applications
Standards & Compliance
- Complies with AS/NZS 3112 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Surface Socket is available now for immediate purchase. Ideal for industrial and small commercial applications.
