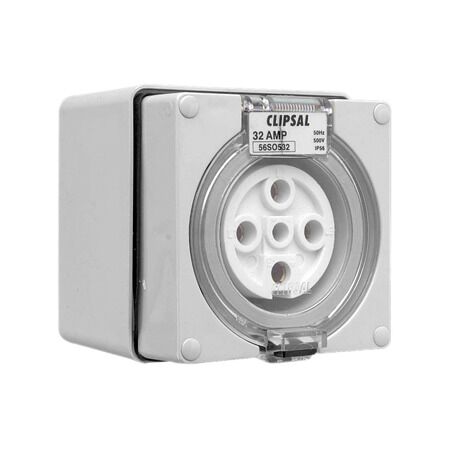

Industrial Surface Socket 32A | 500V | IP66 Rated | Chemical Grey by Clipsal
Industrial surface socket with 32A current and 500V voltage—ideal for machinery and equipment. Built for industrial and commercial use, with IP66 dust and water resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Surface Socket, IP66, 500V 32A - 5 Round Pins Chemical Grey
Brand: Clipsal
SKU: 56SO532-CG
Alternatively Known As: Industrial Surface Socket, 56 Series Socket, Clipsal Power Socket
Technical Specifications
- Rated current: 32A
- Rated operational voltage: 500V AC 50Hz
- Material: ABS housing, brass screws
- Socket number: 1
- Poles description: 3P + N + E
- Tightening torque: 0.8 N.m
- Ambient air temperature for operation: -25 to 75 °C
- Dimensions (H x L x W): 107mm x 102mm x 101mm
- Weight: 0.64 kg
Key Features
- IP66 rated for dust and water resistance.
- Rated current of 32A and operational voltage of 500V AC.
- Screw terminals for 4-16 mm² rigid or stranded cable.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power supply for machinery and equipment
- Commercial: Small commercial utilities
Standards & Compliance
- Complies with AS/NZS 3112 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives, contributing to reduced environmental impact.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Surface Socket is available now for immediate purchase. Ideal for industrial and small commercial applications.
