Industrial Surface Socket 32A | 500V | IP66 Rated | Grey by Clipsal
Industrial surface socket with 32A current and 500V operational voltage—ideal for machinery and equipment power supply. Built for industrial and commercial use, with IP66 dust and water resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

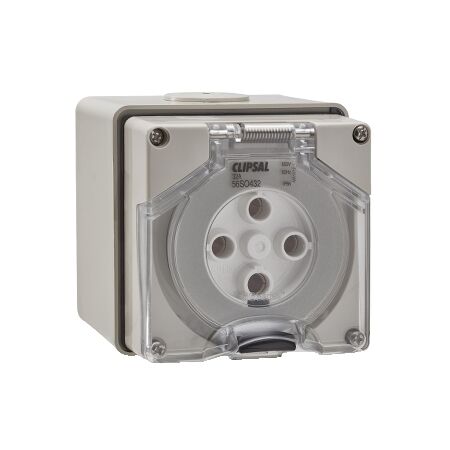

Product Name/Title: Clipsal - 56 Series, Surface Socket, IP66, 500V 32A - 4 Round Pins Grey
Brand: Clipsal
SKU: 56SO432-GY
Alternatively Known As: Industrial Surface Socket, 56 Series Socket, Clipsal Power Outlet
Technical Specifications
- Rated current: 32A
- Rated operational voltage: 500V AC 50Hz
- Material: Polycarbonate cover, brass screws
- Socket number: 1
- Cable entry: 1 tapped entry for cable gland
- Poles description: 3P + E
- Tightening torque: 0.8 N.m
- Ambient air temperature for operation: -25...75 °C
- Dimensions (H x L x W): 107mm x 102mm x 101mm
- Weight: 0.58 kg
Key Features
- IP66 rated for dust and water resistance
- Rated current of 32A and operational voltage of 500V AC
- Surface mounting design for easy installation
- Screw terminals for secure cable connections
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Industrial: Power supply for machinery and equipment
- Commercial: Small commercial applications requiring robust power solutions
Standards & Compliance
- Complies with AS/NZS 3112 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Surface Socket is available now for immediate purchase. Ideal for industrial and small commercial applications.
