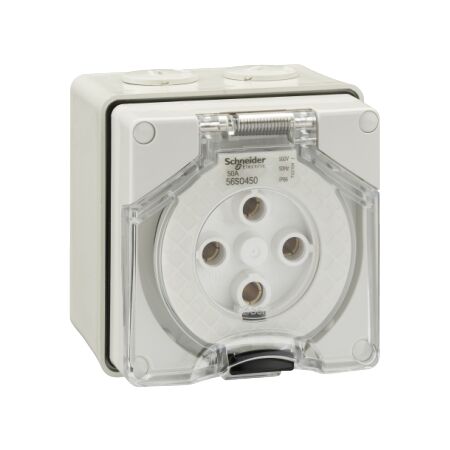

Industrial Surface Socket IP66 | 500V 50A | 4 Round Pins Grey by Clipsal
Industrial surface socket with IP66 rating and 500V 50A capacity—ideal for heavy-duty applications. Built for industrial use, with easy surface mounting and robust polycarbonate construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Surface Socket, IP66, 500V 50A - 4 Round Pins Grey
Brand: Clipsal
SKU: 56SO450-GY
Alternatively Known As: Clipsal 56 Series Socket, Industrial Surface Socket, IP66 Socket
Technical Specifications
- Rated current: 50 A
- Rated operational voltage: 500 V AC 50 Hz
- Device mounting: surface
- Connections: screw terminals 10-16 mm²
- Socket number: 1
- Outlet standard: industrial
- Poles description: 3P + E
- Material: polycarbonate cover, brass screws
- Ambient air temperature for operation: -25...75 °C
- Dimensions (H x L x W): 107mm x 102mm x 101mm
- Weight: 0.6 kg
Key Features
- IP66 rated for protection against dust and water.
- Rated for 50A at 500V AC, suitable for heavy-duty applications.
- Surface mounted design for easy installation.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Industrial: Suitable for small commercial and utility applications.
Standards & Compliance
- Complies with AS/NZS 3112 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Surface Socket is available now for immediate purchase. Ideal for industrial and commercial applications.
