Industrial Surface Switch 3-Pole | 500VAC 20A | IP66 Rated | Chemical Grey by Clipsal
Industrial surface switch with 3-pole rotary knob control and 500VAC 20A rating—ideal for small commercial and utility settings. Built for durability, with IP66 protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

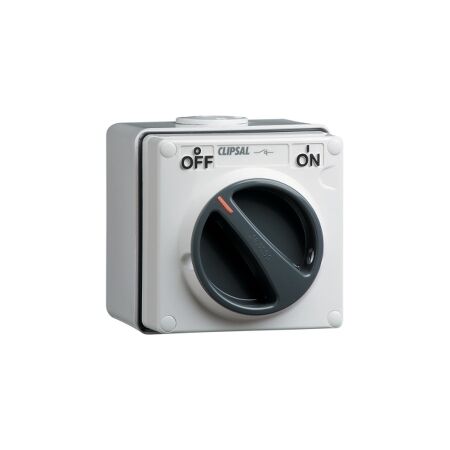

Product Name/Title: Clipsal - 56 Series, Surface Switch, 1 Gang, 3 Pole, 500VAC, 20A, with 2A control Circuit Switch - Chemical Grey
Brand: Clipsal
SKU: 56SW320CX-CG
Alternatively Known As: Clipsal 56 Series Switch, 3 Pole Switch, Industrial Control Switch
Technical Specifications
- Rated operational voltage: 500 V AC 50 Hz
- Rated current: 20 A
- Material: Polycarbonate
- Control type: Rotary knob
- IP Rating: IP66
- Breaking capacity: 20 kA
- Rated short-circuit making capacity: 2.1 kA
- Rated impulse withstand voltage: 4 kV
- Rated short-time withstand current: 1.5 kA for 1 s
- Dimensions (H x L x W): 107mm x 108mm x 101mm
- Weight: 0.76 kg
Key Features
- 3-pole switch with rotary knob control.
- IP66 rated for protection against dust and water.
- Rated operational voltage of 500VAC and current of 20A.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control applications in small commercial and utility settings.
Standards & Compliance
- Complies with AS/NZS 3133 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives and regulations.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Surface Switch is available now for immediate purchase. Ideal for industrial control applications.
