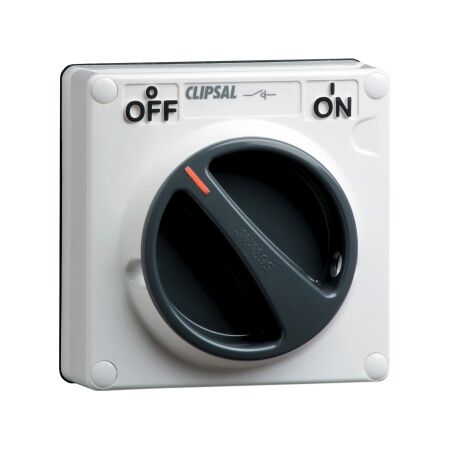

Industrial Surface Switch 3 Pole | IP66 Rated | 20A Control | Chemical Grey by Clipsal
Industrial surface switch with IP66 rating and 3-pole rotary control—ideal for utility and small commercial settings. Built for durability, with 20A capacity and chemical grey finish for robust performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Surface Switch, IP66 1 Gang 3 Pole 20A Control - Chemical Grey
Brand: Clipsal
SKU: 56SW320CXLE-CG
Alternatively Known As: Clipsal 56 Series Switch, 3 Pole Switch, Industrial Surface Switch
Technical Specifications
- Rated operational voltage: 500 V AC 50 Hz
- Rated current: 20 A
- Material: Polycarbonate (PC)
- Breaking capacity: 20 kA
- Rated short-circuit making capacity: 2.1 kA
- Rated impulse withstand voltage: 4 kV
- Rated short-time withstand current: 1.5 kA for 1 s
- Tightening torque: 0.8 N.m
- Dimensions (H x L x W): 107mm x 72mm x 101mm
- Weight: 0.38 kg
Key Features
- IP66 rated for protection against dust and water
- 3-pole rotary knob control
- Suitable for isolation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control applications in utility and small commercial settings
Standards & Compliance
- Complies with AS/NZS 3133 and AS 60529 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS regulations, contributing to reduced environmental impact.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Surface Switch IP66 1 Gang 3 Pole 20A Control in Chemical Grey is available now for immediate purchase. Ideal for industrial control applications.
