Trade Discount 33%

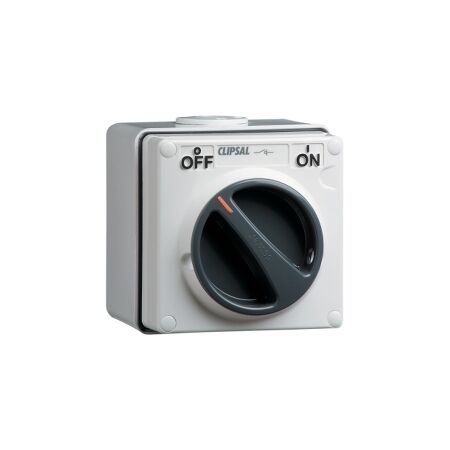

Industrial Surface Switch 4 Pole | 32A 500V AC | IP66 Rated | Grey by Clipsal
Industrial surface switch with 4-pole rotary control and 32A, 500V AC rating—ideal for small commercial and utility applications. Built for durability, with IP66 protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Surface Switch, 1 Gang, 4 Pole, 440VAC, 32A - Grey
Brand: Clipsal
SKU: 56SW432-GY
Alternatively Known As: Clipsal 56 Series Switch, 4 Pole Switch, Industrial Surface Switch
Technical Specifications
- Rated operational voltage: 500V AC 50Hz
- Rated current: 32A
- Material: Polycarbonate
- Marking: ON-OFF
- Fixing mode: by screws
- Ambient air temperature for operation: -25...75 °C
- Rated short-circuit making capacity: 1.7 kA
- Breaking capacity: 32 kA
- Rated impulse withstand voltage: 4 kV
- Dimensions (H x L x W): 107mm x 108mm x 101mm
- Weight: 0.66 kg
Key Features
- 4-pole rotary knob control
- IP66 rated for protection against dust and water
- Rated operational voltage of 500V AC
- Rated current of 32A
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Small commercial, utility, and industry applications
Standards & Compliance
- Complies with AS/NZS 3133 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives and regulations.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Surface Switch 1 Gang 4 Pole 440VAC 32A is available now for immediate purchase. Ideal for industrial applications requiring reliable control solutions.
