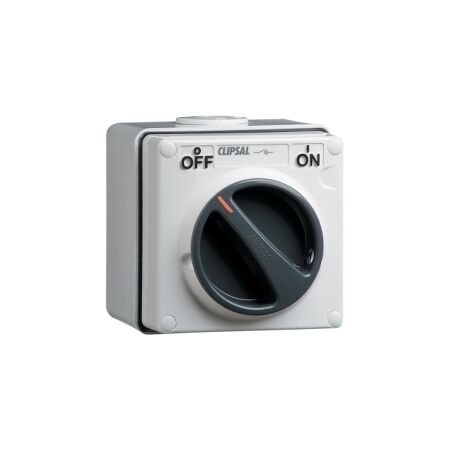

Industrial Surface Switch 4 Pole | 500V AC 20A | IP66 Rated | Resistant White by Clipsal
Industrial surface switch with 4-pole rotary control and 500V AC 20A capacity—ideal for utility and small commercial settings. Built for durability, with IP66 protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Surface Switch, 1 Gang, 4 Pole, 440VAC, 20A - Resistant White Electric
Brand: Clipsal
SKU: 56SW420-RW
Alternatively Known As: Clipsal 56 Series Switch, 4 Pole Switch, Industrial Surface Switch
Technical Specifications
- Rated operational voltage: 500V AC 50Hz
- Rated current: 20A
- Material: Polycarbonate (PC)
- IP Rating: IP66
- Breaking capacity: 20 kA
- Rated short-circuit making capacity: 1.7 kA
- Rated impulse withstand voltage: 4 kV
- Ambient air temperature for operation: -25...75 °C
- Dimensions (H x L x W): 107mm x 108mm x 101mm
- Weight: 0.558 kg
Key Features
- 4-pole rotary knob control type.
- IP66 rated for protection against dust and water.
- Rated operational voltage of 500V AC.
- Rated current of 20A.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control applications in utility and small commercial settings.
Standards & Compliance
- Complies with AS/NZS 3133 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives and regulations.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Surface Switch 1 Gang 4 Pole 440VAC 20A is available now for immediate purchase. Ideal for industrial control applications.
