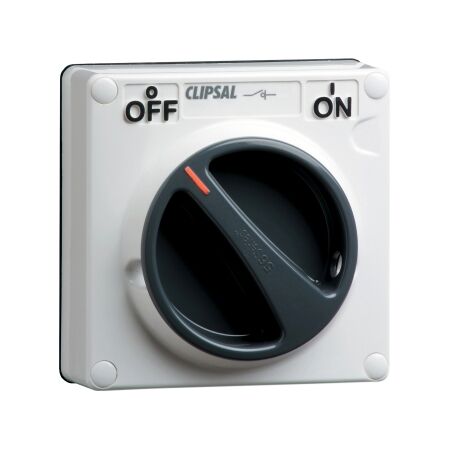

Industrial Surface Switch IP66 | 1 Gang 3 Pole 20A | Chemical Grey by Clipsal
Industrial surface switch with IP66 rating and 1 gang 3 pole 20A capacity—ideal for industrial and small commercial applications. Built for durability, with chemical grey finish and rotary knob control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Surface Switch, IP66 1 Gang 3 Pole 20A Less Enclosure - Chemical Grey
Brand: Clipsal
SKU: 56SW320LE-CG
Alternatively Known As: Clipsal 56 Series Switch, Industrial Surface Switch, IP66 Switch
Technical Specifications
- Rated operational voltage: 500 V AC 50 Hz
- Rated current: 20 A
- Material: Polycarbonate (PC)
- Breaking capacity: 20 kA
- Rated impulse withstand voltage: 4 kV
- Rated short-circuit making capacity: 1 kA
- Tightening torque: 0.8 N.m
- Ambient air temperature for operation: -25...75 °C
- Dimensions (H x L x W): 107mm x 72mm x 101mm
- Weight: 0.281 kg
Key Features
- IP66 rated for protection against dust and water.
- 3-pole switch with rotary knob control.
- Suitable for isolation.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Utility: Industrial and small commercial applications
Standards & Compliance
- Complies with AS/NZS 3133 and AS 60529 for safety and performance.
Environmental Benefits
- Compliant with RoHS directives and environmental regulations.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Surface Switch IP66 1 Gang 3 Pole 20A is available now for immediate purchase. Ideal for industrial and commercial applications.
