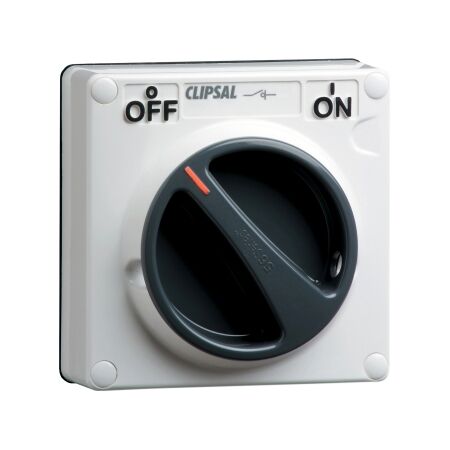

Industrial Surface Switch IP66 1G 3P 20A Grey Clipsal

BRAND: Clipsal
SKU: CLI56SW320CXLEGY
$231.70 List price: $288.70
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal Industrial Surface Switch Grey features 500V AC 50Hz, 20A rated current and Polycarbonate. IP66 rated for protection against dust and water.
Technical Specifications
  • Rated operational voltage: 500 V AC 50 Hz
  • Rated current: 20 A
  • Material: Polycarbonate (PC)
  • Breaking capacity: 20 kA
  • Rated short-circuit making capacity: 2.1 kA
  • Rated impulse withstand voltage: 4 kV
  • Rated short-time withstand current: 1.5 kA for 1 s
  • Tightening torque: 0.8 N.m
  • Dimensions (H x L x W): 107mm x 72mm x 101mm
  • Weight: 0.38 kg
Key Features
  • IP66 rated for protection against dust and water.
  • 3-pole rotary knob control.
  • Suitable for isolation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Control applications in utility and small commercial settings.
Standards & Compliance
  • Complies with AS/NZS 3133 and AS 60529 for safety and performance.
Environmental Benefits
  • Compliant with RoHS regulations, contributing to reduced environmental impact.
Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Clipsal 56 Series Surface Switch IP66 1 Gang 3 Pole 20A Control in Chemical Grey is available now for immediate purchase. Ideal for industrial control applications.

56SW320CXLE-GY (56SW320CXLE-GY, 255 Kb) [Download]
