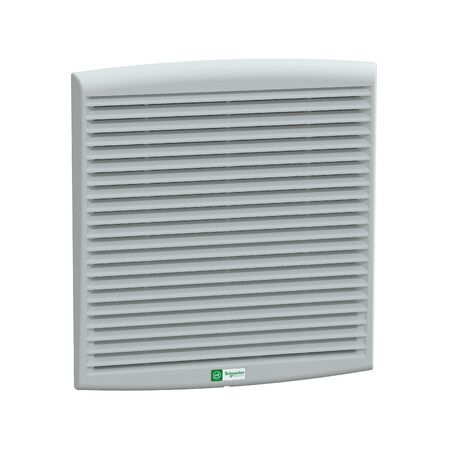

Industrial Ventilation Fan | 560m³/h Airflow | IP54 Rated | 230V by Clipsal

BRAND: Clipsal
SKU: NSYCVF560M230PF
$449.30 List price: $674.00
+
Industrial ventilation fan with 560m³/h airflow and IP54 rating—ideal for commercial and industrial settings. Built for efficient airflow management, with outlet grille and G2 filter for enhanced performance.

Product Name/Title: ClimaSys, ClimaSys forced vent, IP54, 560m3/h, 230V, with outlet grille and filter G2

Brand: Clipsal

SKU: NSYCVF560M230PF

Alternatively Known As: ClimaSys Ventilation Fan, Forced Vent Fan, Industrial Ventilation System

Technical Specifications
  • Rated current: 0.29 A at 50 Hz, 0.35 A at 60 Hz
  • Input voltage: 230 V 50/60 Hz
  • Power consumption: 64 W at 50 Hz, 80 W at 60 Hz
  • Noise level: 59 dB
  • Maximum pressure: 140 Pa
  • Dimensions (H x L x W): 336mm x 161mm x 316mm
  • Weight: 3.2 kg
Key Features
  • IP54 rated for protection against dust and water
  • High airflow capacity of 560 m³/h
  • Includes outlet grille and G2 filter
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Industrial: Ventilation in commercial and industrial settings
  • General: Suitable for environments requiring controlled airflow
Standards & Compliance
  • Complies with relevant Australian standards for safety and performance.
Environmental Benefits
  • Complies with environmental regulations and standards.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal ClimaSys Forced Ventilation Fan is available now for immediate purchase. Ideal for industrial applications requiring efficient airflow management.

NSYCVF560M230PF (NSYCVF560M230PF, 216 Kb) [Download]
