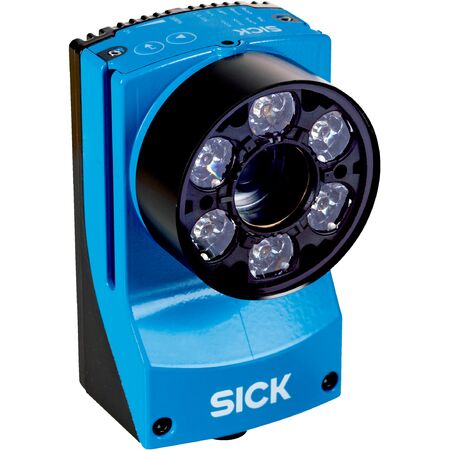

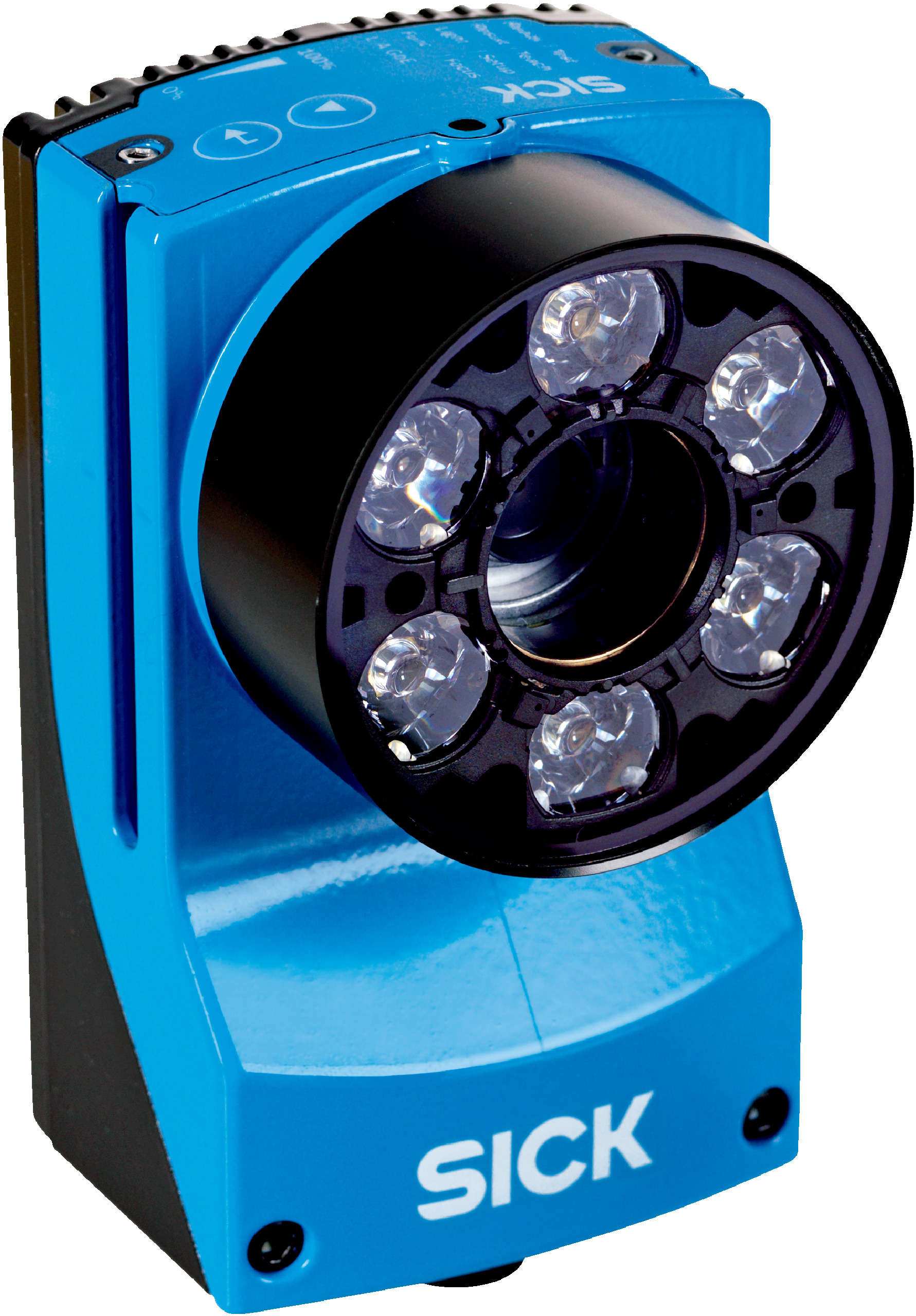

Industrial Vision Sensor V2D631R-MISCB8 | 1.3 Megapixel CMOS | IP67 Rated | Adjustable Focus | by SICK
The Industrial Vision Sensor V2D631R-MISCB8 features a 1.3 Megapixel CMOS monochrome sensor and adjustable manual optical focus, making it ideal for industrial automation and barcode reading applications. With integrated white LED illumination and robust IP67 rated aluminum housing, this sensor ensures reliable performance in challenging environments, perfect for logistics, packaging, and quality control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1280 px x 1024 px (1.3 Mpixel)
- Optical focus: Adjustable manual
- Illumination: Integrated white LED
- Feedback spot: Green (525 nm ±15 nm) and Red (630 nm ±20 nm) LEDs
- Alignment aid: Red laser (630 nm to 680 nm), Class 1 laser
- Lens: S-mount, 1/1.8" optical format, 9.6 mm focal length, aperture 8
- Scanning frequency: ≤ 50 Hz at 1.3 megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 50 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet 1 Gbit/s), M8 4-pin socket (USB), M12 4-pin socket (illumination control)
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typical 10 W ±20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Readable code types: 1D, stacked, 2D codes including GS1-128, UPC, QR code, Data Matrix ECC200, PDF417
- Interfaces: Ethernet TCP/IP, PROFINET, EtherNet/IP, Serial RS-232/422, CAN, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 6
- Operator interface: Web server
- Configuration software: SOPAS ET
- Memory card: Micro SD up to 32 GB
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 59mm x 108mm x 63mm
- Weight: 0.45 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 1.3 Megapixel resolution
- Integrated white LED illumination
- Visible green and red LED feedback spots
- Red laser alignment aid, Class 1 laser safety
- Supports 1D, 2D, and stacked code reading
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, Serial, CAN, and PROFIBUS DP
- IP67 rated aluminum die cast housing for robust industrial use
- Configurable digital inputs and outputs
- Web server operator interface and SOPAS ET configuration software
- Micro SD memory card support for image and data storage
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and packaging for code verification
- Manufacturing for quality control and traceability
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements
- Energy-efficient LED illumination minimizes power consumption
- Supports digital data transmission reducing paper-based processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D631R-MISCB8 Industrial Vision Sensor is available for immediate purchase, ideal for industrial automation and barcode reading applications.
