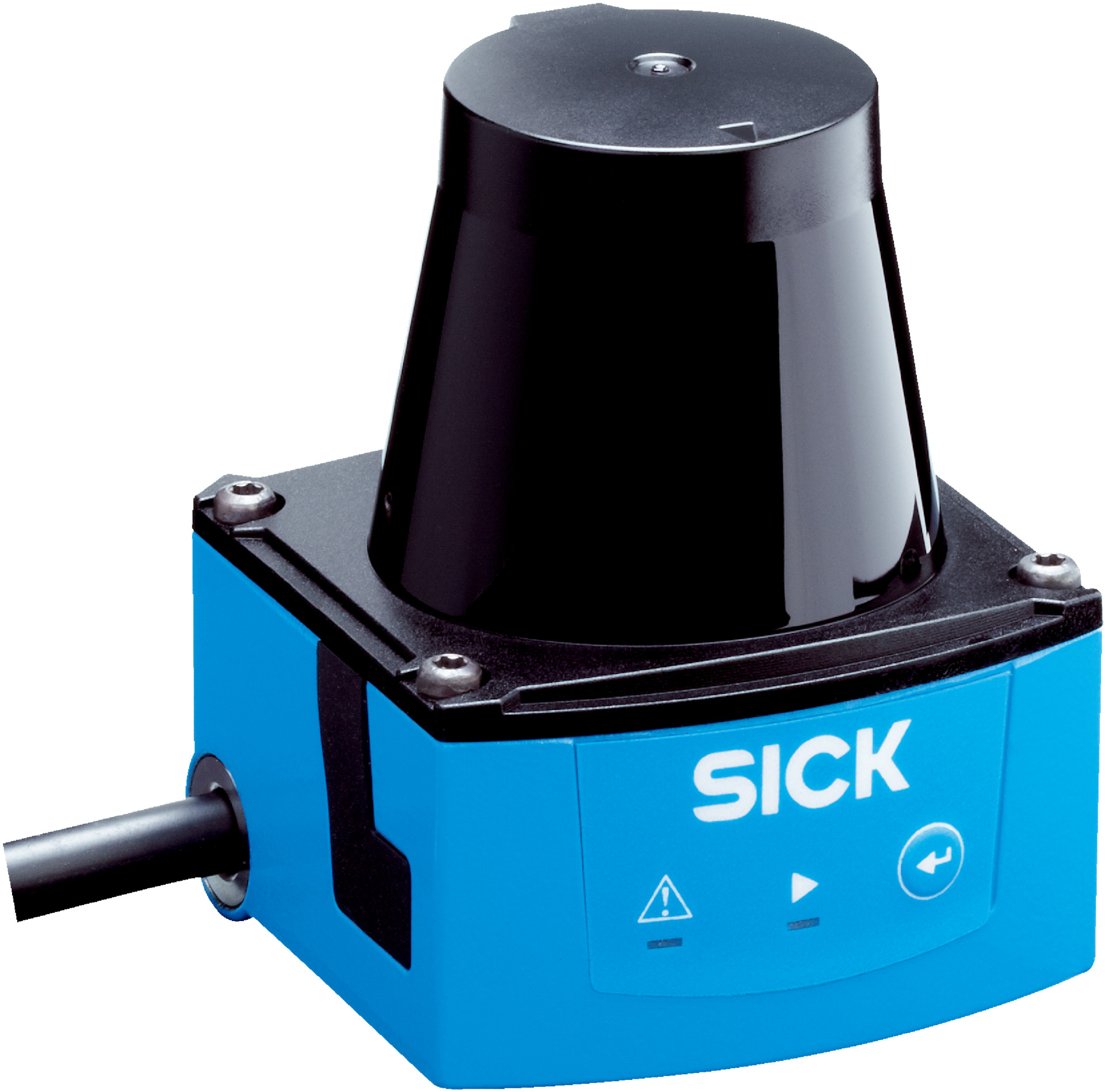

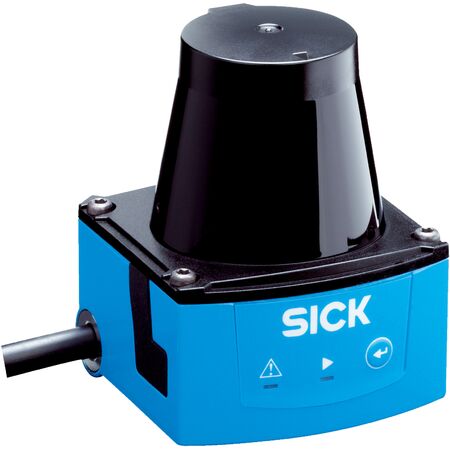

Infrared Distance Sensor TIM310-1130000 | HDDM+ Measurement | IP65 Rated | 270° Aperture Angle | by SICK
The Infrared Distance Sensor TIM310-1130000 features advanced HDDM+ measurement technology and a 270° horizontal aperture angle, making it ideal for indoor object detection and industrial automation. With an IP65 rated enclosure for dust and water protection, this sensor operates efficiently in challenging environments, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Infrared Distance Sensor TIM310-1130000 | HDDM+ Measurement | IP65 Rated | 270° Aperture Angle | by SICK
Brand: SICK
SKU: 1056550
Alternatively Known As: Infrared Distance Sensor, HDDM+ Sensor, SICK TIM310 Sensor, Industrial Proximity Sensor
Technical Specifications
- Measurement principle: HDDM+
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution horizontal: 1°
- Scanning frequency: 15 Hz
- Working range: 0.05 m to 4 m
- Scanning range at 10% remission factor: 2 m
- Connection type: 1 x M12 12-pin male connector (0.8 m cable)
- Supply voltage: 9 V DC to 28 V DC
- Power consumption: Typical 4 W, 16 W with max loaded digital outputs
- Output current: ≤ 100 mA
- Enclosure rating: IP65 (IEC 60529)
- Protection class: III (IEC 61140)
- Weight: 150 g without cables
- Response time: Typical 67 ms per scan
- Digital inputs: 4
- Digital outputs: 3 PNP plus 1 device ready output
- Delay time configurable from 67 ms to 30,000 ms
- Dwell time configurable from 67 ms to 600,052 ms
- Optical indicators: 2 LEDs (ON, switching status)
- Electromagnetic compatibility: Residential and industrial standards
- Vibration resistance: 10 Hz to 1,000 Hz sine resonance scan
- Shock resistance: Up to 50 g
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Ambient light immunity: 80,000 lx
- Dimensions (H x L x W): 79mm x 60mm x 60mm
- Weight: 0.15 kg
Key Features
- Measurement principle: HDDM+ with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1 standards
- 270° horizontal aperture angle with 1° angular resolution
- Scanning frequency of 15 Hz with working range from 0.05 m to 4 m
- IP65 rated enclosure for dust and water protection
- Light blue housing (RAL 5012) with compact dimensions
- Multiple digital inputs and outputs with configurable delay and dwell times
- Micro USB service interface for parameterization
- High vibration and shock resistance suitable for industrial environments
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Indoor object detection and measurement
- Industrial automation and safety systems
- Field evaluation and scanning applications
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of typically 4 W reduces energy usage
- Durable design with long MTBF (>100 years) minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK TIM310-1130000 sensor is available for immediate purchase, ideal for indoor industrial automation and measurement applications.
