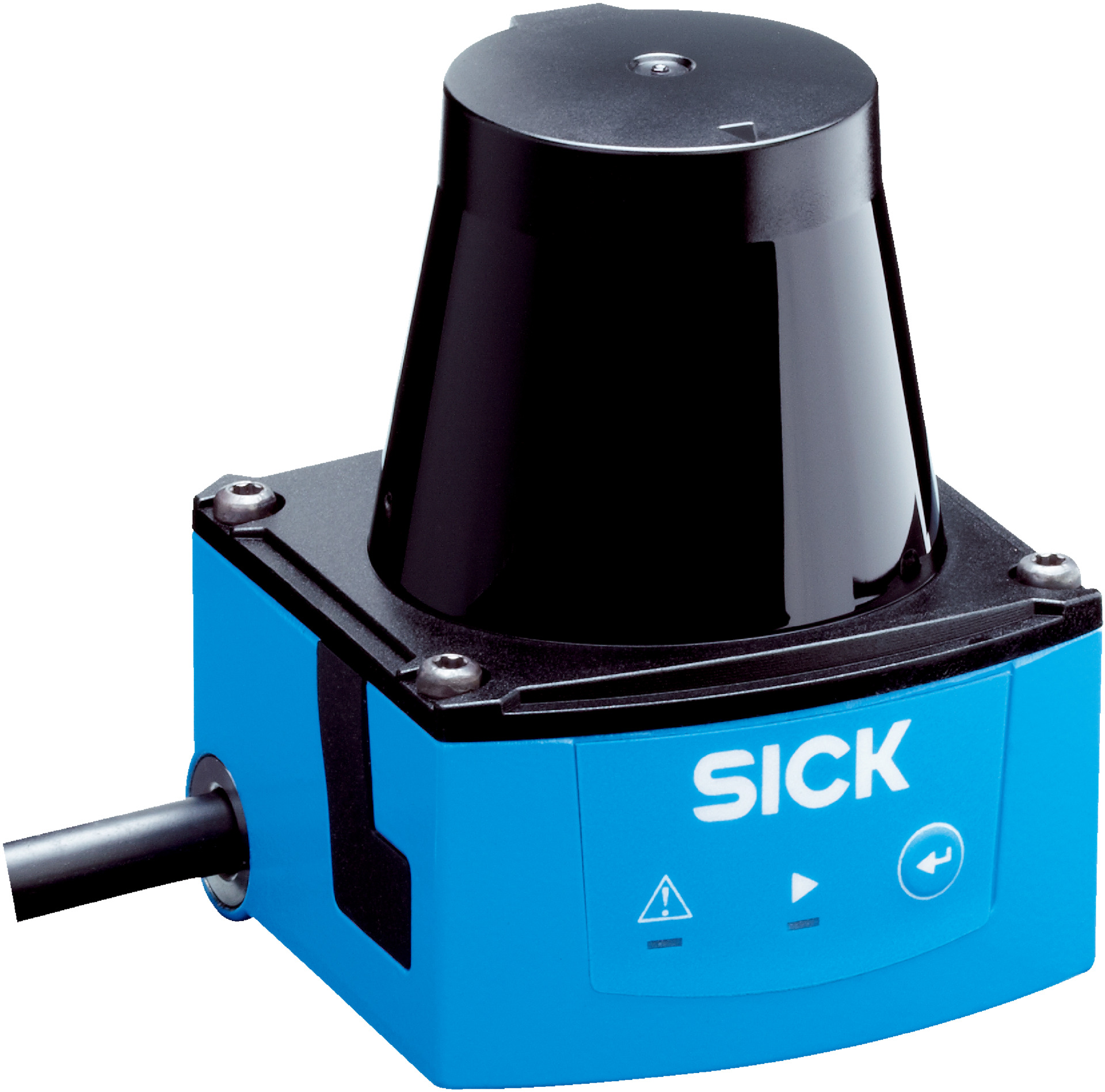

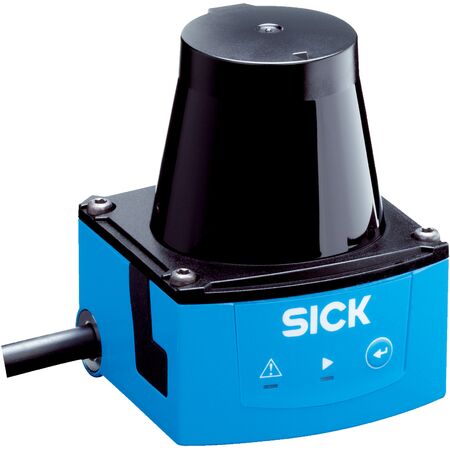

Infrared Distance Sensor TIM320-1131000 | HDDM+ Measurement | IP65 Rated | 270° Aperture Angle | by SICK
The Infrared Distance Sensor TIM320-1131000 utilizes HDDM+ technology with an infrared light source for precise object detection and measurement. With a wide horizontal aperture angle of 270° and a robust IP65 enclosure, it's perfect for industrial automation and safety systems. Designed for reliable performance in harsh environments, this sensor operates within a temperature range of -10 °C to +50 °C, ensuring durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution horizontal: 1°
- Scanning frequency: 15 Hz
- Working range: 0.05 m to 4 m
- Scanning range at 10% remission factor: 2 m
- Connection type: 1 x M12 12-pin male connector (0.8 m cable)
- Supply voltage: 9 V DC to 28 V DC
- Power consumption: Typical 4 W, 16 W with 4 max loaded digital outputs
- Output current: ≤ 100 mA
- Enclosure rating: IP65 (IEC 60529)
- Protection class: III (IEC 61140)
- Response time: Typical 67 ms per scan
- Digital inputs: 4
- Digital outputs: 3 PNP plus 1 device ready output
- Delay time configurable from 67 ms to 30,000 ms
- Dwell time configurable from 67 ms to 600,052 ms
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Shock resistance: 50 g, 11 ms single shocks; 25 g, 6 ms continuous shocks
- Vibration resistance: 10 Hz to 1,000 Hz sine resonance scan
- Dimensions (H x L x W): 79mm x 60mm x 60mm
- Weight: 0.15 kg
Key Features
- Measurement principle: HDDM+ with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Wide horizontal aperture angle of 270° with 1° angular resolution
- Scanning frequency of 15 Hz with working range from 0.05 m to 4 m
- Robust IP65 rated enclosure suitable for industrial environments
- Low power consumption typically 4 W, up to 16 W with max digital outputs
- Multiple digital inputs and outputs with configurable delay and dwell times
- Micro USB interface for service and parameterization
- High vibration and shock resistance for harsh conditions
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Indoor object detection and measurement
- Industrial automation and safety systems
- Field evaluation applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK TIM320-1131000 sensor is available for immediate purchase, ideal for indoor industrial automation and safety applications.
