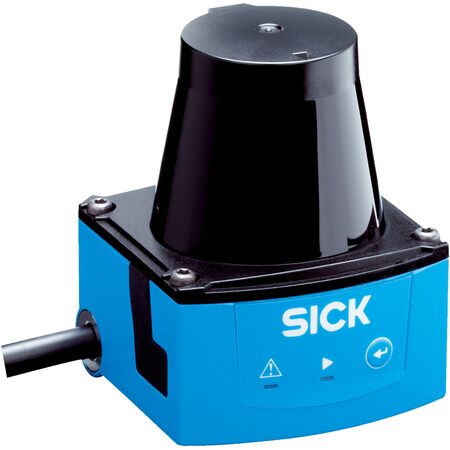

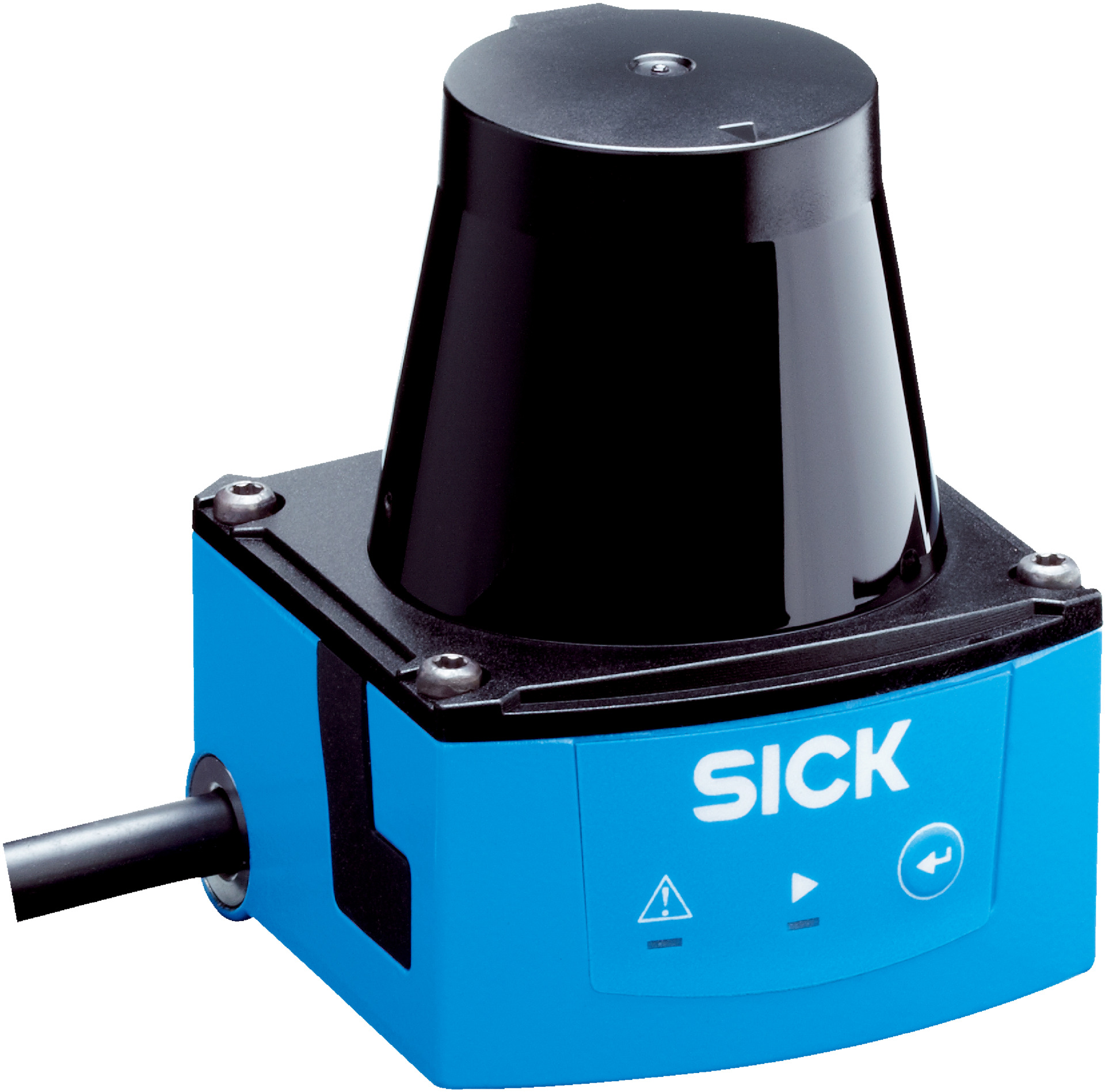

Infrared Distance Sensor TIM510-9950000S01 | HDDM+ Measurement | IP65 Rated | 0.05m to 4m Range | by SICK
The Infrared Distance Sensor TIM510-9950000S01 features advanced HDDM+ measurement technology and an infrared light source for precise distance detection. With a working range of 0.05m to 4m and an IP65 rated enclosure, it's perfect for indoor industrial applications. Designed for reliability, this sensor ensures low power consumption and robust performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution horizontal: 1°
- Scanning frequency: 15 Hz
- Working range: 0.05 m to 4 m
- Scanning range at 10% remission factor: 2 m
- Connection type: 1 x cable with 12-pin M12 male connector (0.3 m), 1 x Micro USB female connector, type B
- Supply voltage: 9 V DC to 28 V DC
- Power consumption: Typical 4 W
- Output current: ≤ 100 mA
- Enclosure rating: IP65 (IEC 60529)
- Protection class: III (IEC 61140)
- Response time: 1 scan typically 67 ms
- Object remission: 4% to 1000% (reflectors)
- Electromagnetic compatibility: Residential and industrial standards
- Vibration resistance: 10 Hz to 1000 Hz sine resonance scan
- Shock resistance: up to 50 g
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Ambient light immunity: 80,000 lx
- Dimensions (H x L x W): 79mm x 60mm x 60mm
- Weight: 0.15 kg
Key Features
- Measurement principle: HDDM+
- Infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Horizontal aperture angle of 270° with 1° angular resolution
- Scanning frequency of 15 Hz
- Working range from 0.05 m to 4 m
- Scanning range of 2 m at 10% remission factor
- IP65 rated enclosure for dust and water protection
- Supply voltage range from 9 V DC to 28 V DC
- Power consumption typically 4 W
- Output current up to 100 mA
- Connection via 12-pin M12 male connector and Micro USB type B
- Response time typically 67 ms per scan
- Robust vibration and shock resistance
- Operating temperature range from -10 °C to +50 °C
- Storage temperature range from -30 °C to +70 °C
- High electromagnetic compatibility for residential and industrial environments
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and compliance with safety standards.
Applications
- Indoor measurement and detection applications requiring precise distance measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of approximately 4 W reduces energy usage.
- Durable IP65 housing extends product life and reduces waste.
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK TIM510-9950000S01 sensor is available for immediate purchase, ideal for indoor industrial measurement and detection applications.
