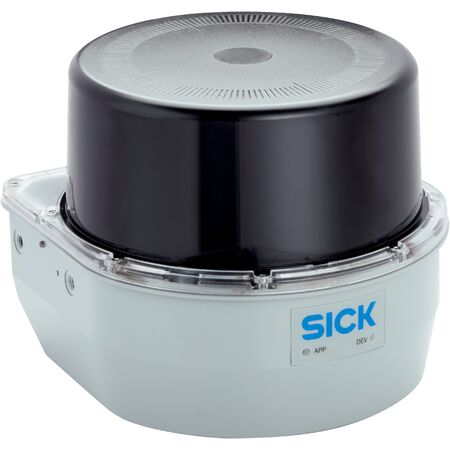

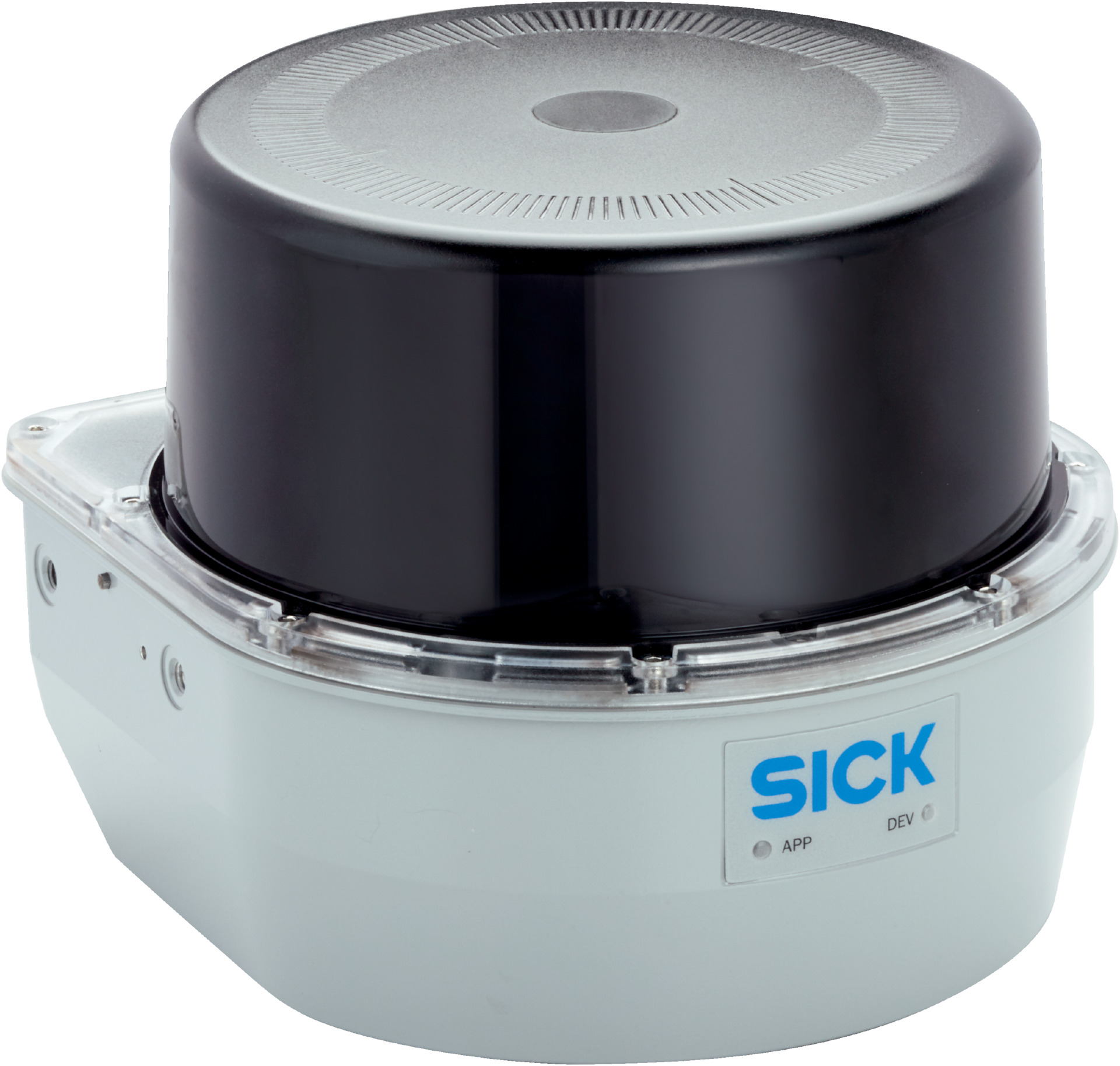

Infrared Laser Scanner | 360° Aperture Angle | 0.02° Angular Resolution | IP65 & IP67 Rated | by SICK
The Infrared Laser Scanner is designed for precise object detection and measurement, featuring a 360° horizontal aperture angle and 0.02° angular resolution. With a working range of 0.2 m to 300 m and robust IP65/IP67 enclosure, it's perfect for industrial automation and safety monitoring in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared (886 nm, max output power 7.7 W, pulse duration 2.44 ns)
- Laser class: 1 (IEC 60825-1 Ed.3 compliant)
- Aperture angle horizontal: 360°
- Angular resolution horizontal: 0.02° to 0.12°
- Scanning frequency: 12.5 Hz, 25 Hz
- Working range: 0.2 m to 300 m
- Scanning range: 120 m at 10% remission, 250 m at 90% remission
- Spot size: 2.6 mrad x 0.4 mrad
- Amount of evaluated echoes: 3
- Connection type: 3 x M12 stainless steel connectors
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: Typical 13 W, max 20 W
- Output current: ≤ 0.25 A
- Housing material: AlSi12
- Optical hood: Polycarbonate
- Enclosure rating: IP65 and IP67
- Protection class: III (IEC 61140)
- Electrical safety: IEC 61010-1
- Scan/frame rate: 37,500 to 225,000 measurement points per second
- Response time: ≥ 40 ms
- Systematic error: ± 15 mm
- Statistical error: < 10 mm
- Temperature drift: ± 0.2 mm/K
- Number of field sets: 16
- Filters: Median, Average, Particle
- Ethernet: TCP/IP, UDP/IP, 10/100 MBit/s
- Digital inputs/outputs: 6 inputs, 6 outputs
- Encoder inputs: 2
- Optical indicators: LEDs
- Configuration software: Web server
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Permissible relative humidity: ≤ 90%, non-condensing
- Ambient light immunity: 80 klx
- Vibration resistance: 10 Hz to 500 Hz, 5 g, 10 cycles
- Shock resistance: 50 g, 11 ms, 6 shocks per axis
- Dimensions (H x L x W): 127mm x 152mm x 150mm
- Weight: 1.7 kg
Key Features
- Infrared light source with 886 nm wavelength and max output power of 7.7 W
- Laser class 1 compliant with IEC 60825-1 Ed.3 and 21 CFR 1040.10/1040.11
- 360° horizontal aperture angle with 0.02° angular resolution
- Scanning frequency options of 12.5 Hz and 25 Hz
- Working range from 0.2 m up to 300 m
- Scanning range of 120 m at 10% remission factor and 250 m at 90% remission factor
- Self-heating with robust AlSi12 housing and polycarbonate optical hood
- IP65 and IP67 rated enclosure for dust and water protection
- High scan/frame rate up to 225,000 measurement points per second
- Multiple digital inputs/outputs and Ethernet TCP/IP communication
- Vibration and shock resistant for industrial environments
- Operating temperature range from -30 °C to +50 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with electrical safety standards and optimal device performance.
Applications
- Outdoor and indoor object detection and measurement
- Industrial automation and safety monitoring
- Field evaluation and measurement data output
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3123 – Industrial Plugs and Socket-Outlets
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable and robust design reduces need for frequent replacements
- Energy-efficient infrared laser technology minimizes power consumption
- High reliability reduces electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LRS4581R-230001 infrared laser scanner is available for immediate purchase, ideal for industrial automation, safety monitoring, and precise object detection in harsh environments.
