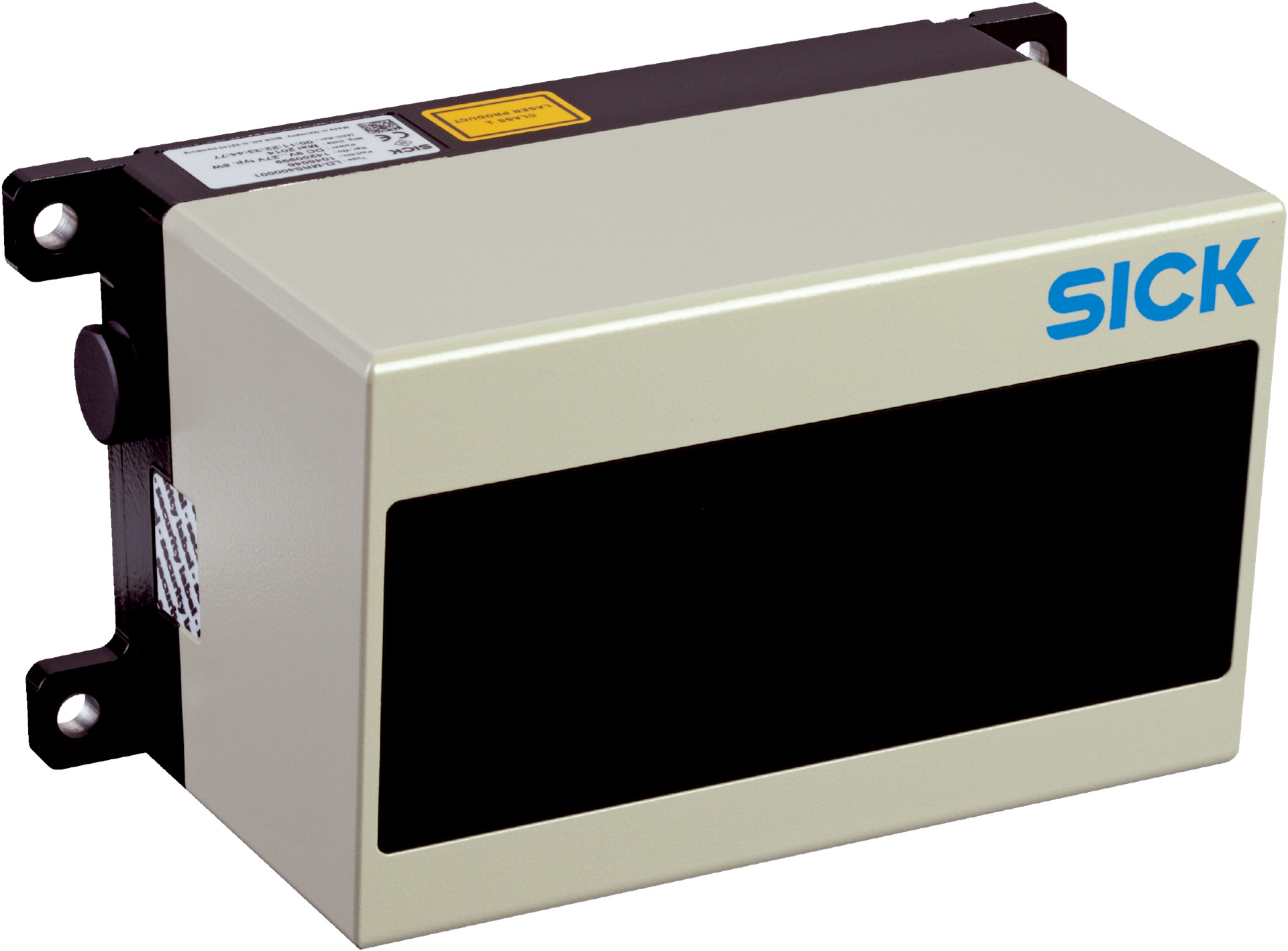

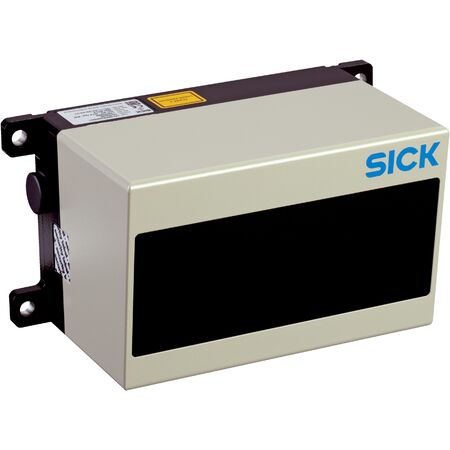

Infrared Laser Scanner LD-MRS400001S01 | IP69K Rated | 320m Working Range | 12.5-50Hz Scanning Frequency | by SICK
The Infrared Laser Scanner LD-MRS400001S01 is designed for precise object detection in both outdoor and indoor environments. With a robust aluminum housing and an IP69K rating, it operates efficiently in extreme temperatures from -40 °C to +70 °C. This scanner features a working range of up to 320 m and a high scanning frequency of 12.5 to 50 Hz, making it ideal for applications requiring reliable tracking and monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Infrared Laser Scanner LD-MRS400001S01 | IP69K Rated | 320m Working Range | 12.5-50Hz Scanning Frequency | by SICK
Brand: SICK
SKU: 1052960
Alternatively Known As: Infrared Laser Scanner, 3D Laser Scanner, Outdoor Laser Sensor, SICK Laser Scanner
Technical Specifications
- Light source: Infrared light (905 nm, ± 10 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 85° (4 scan layers), extendable to 110° (2 scan layers)
- Aperture angle vertical: 3.2°
- Horizontal angular resolution: 0.125°, 0.25°, 0.5°
- Vertical angular resolution: 0.8°
- Scanning frequency: 12.5 Hz to 50 Hz
- Working range: 0.5 m to 320 m
- Scanning range at 10% remission factor: 50 m
- Amount of evaluated echoes: 3
- Connection type: 2 x Odu Mini-snap round connectors (4-pin for supply voltage and Ethernet, 12-pin for Sync)
- Supply voltage: 9 V to 30 V
- Power consumption: 8 W
- Housing material: Aluminum
- Enclosure rating: IP69K
- Protection class: III
- Weight: 1 kg
- Dimensions (L x W x H): 94 mm x 165 mm x 88 mm
- MTBF: > 100 years
- Ambient operating temperature: -40 °C to +70 °C
- Ambient light immunity: 100 klx
- Interfaces: Ethernet (TCP/IP), Serial (RS-232), CAN
- Data transmission rate: Ethernet 100 Mbit/s, Serial 57,600 Baud
- Dimensions (H x L x W): 88mm x 94mm x 165mm
- Weight: 1 kg
Key Features
- Infrared light source (905 nm, ± 10 nm)
- Laser class 1 compliant with IEC 60825-1:2014 and EN 60825-1:2014+A11:2021
- Horizontal aperture angle of 85° with 4 scan layers, extendable to 110° with 2 scan layers
- Vertical aperture angle of 3.2°
- High scanning frequency from 12.5 Hz to 50 Hz with object tracking at 12.5 Hz
- Angular resolution options: Horizontal 0.125°, 0.25°, 0.5°; Vertical 0.8°
- Working range from 0.5 m up to 320 m
- Scanning range of 50 m at 10% remission factor
- Evaluates up to 3 echoes
- Robust aluminum housing with IP69K enclosure rating
- Wide ambient operating temperature range from -40 °C to +70 °C
- Supports Ethernet (TCP/IP), Serial (RS-232), and CAN interfaces
- Weight approximately 1 kg with dimensions 94 mm x 165 mm x 88 mm
- Mean time between failures (MTBF) greater than 100 years
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Outdoor environments
- Indoor environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Robust design with long MTBF reduces waste and replacement frequency
- Low power consumption of 8 W supports energy efficiency
- High ambient light immunity ensures reliable operation reducing maintenance needs
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LD-MRS400001S01 Infrared Laser Scanner is available now for immediate purchase. Ideal for outdoor and indoor applications requiring precise object detection and tracking.
