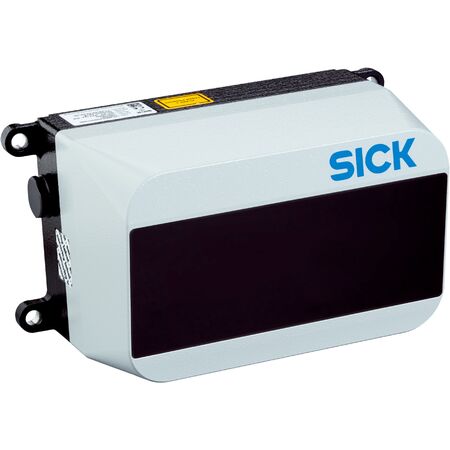

Infrared Laser Scanner LD-MRS820301 | IP69K Rated | 320m Working Range | 12.5-50Hz Scanning Frequency | by SICK
The Infrared Laser Scanner LD-MRS820301 is designed for precise object detection and measurement in various environments. With a robust IP69K rated housing and a working range of up to 320 meters, it excels in industrial automation and safety monitoring applications. Its high scanning frequency of 12.5 to 50 Hz and wide aperture angles ensure accurate data collection, making it ideal for both indoor and outdoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared light (905 nm, ± 10 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 85° with 8 scan layers, extendable to 110° with 4 scan layers
- Aperture angle vertical: 4.2° to 6.4°, ± 0.2°
- Horizontal angular resolution: 0.25°
- Vertical angular resolution: 0.8°
- Scanning frequency: 12.5 Hz to 50 Hz
- Working range: 0.5 m to 320 m
- Scanning range at 10% remission factor: 30 m
- Scanning range at 90% remission factor: 150 m
- Amount of evaluated echoes: 2
- Connection type: 2 x Odu Mini-snap round connectors (4-pin for supply voltage and Ethernet, 12-pin for Sync)
- Supply voltage: 9 V to 30 V
- Power consumption: 8 W
- Housing material: Aluminum
- Housing color: Gray (RAL 7042), Black (RAL 9005)
- Enclosure rating: IP69K
- Protection class: III
- Weight: 0.77 kg
- MTBF: > 100 years
- MTTFD: > 100 years
- Detectable object shape: Almost any
- Systematic error: ± 300 mm
- Statistical error: 100 mm
- Integrated application: Output of measurement data
- Interfaces: Ethernet (TCP/IP), Serial (RS-232), CAN
- Data transmission rate: Ethernet 100 Mbit/s, Serial 57,600 Baud
- Ambient operating temperature: -40 °C to +70 °C
- Ambient light immunity: 100 klx
- Dimensions (H x L x W): 88mm x 91.3mm x 164.5mm
- Weight: 0.77 kg
Key Features
- Infrared light source (905 nm, ± 10 nm)
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Wide aperture angle: Horizontal 85° with 8 scan layers, extendable to 110° with 4 scan layers; Vertical 4.2° to 6.4°
- High scanning frequency from 12.5 Hz to 50 Hz
- Angular resolution of 0.25° horizontal and 0.8° vertical
- Working range from 0.5 m up to 320 m
- Scanning range of 30 m at 10% remission factor and 150 m at 90% remission factor
- Evaluates up to 2 echoes per scan
- Robust housing with IP69K rating and protection class III
- Wide ambient operating temperature range from -40 °C to +70 °C
- Multiple interface options including Ethernet (TCP/IP), RS-232 serial, and CAN
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical connections to ensure compliance and optimal performance.
Applications
- Outdoor and indoor object detection and measurement
- Industrial automation and safety monitoring
- Vehicle and traffic monitoring systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption of 8 W
- Durable IP69K rated housing ensures long product life and reduces waste
- Wide temperature tolerance reduces need for additional climate control equipment
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LD-MRS820301 Infrared Laser Scanner Sensor is available for immediate purchase, ideal for industrial automation, safety monitoring, and vehicle detection applications.
