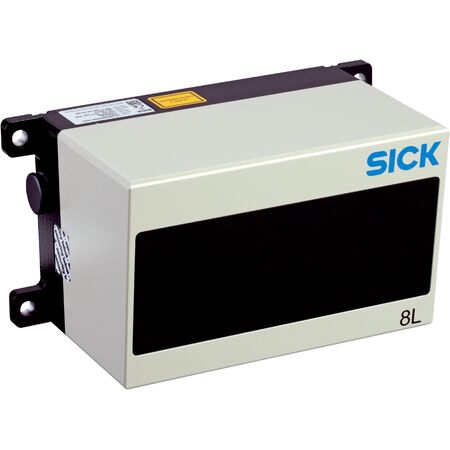

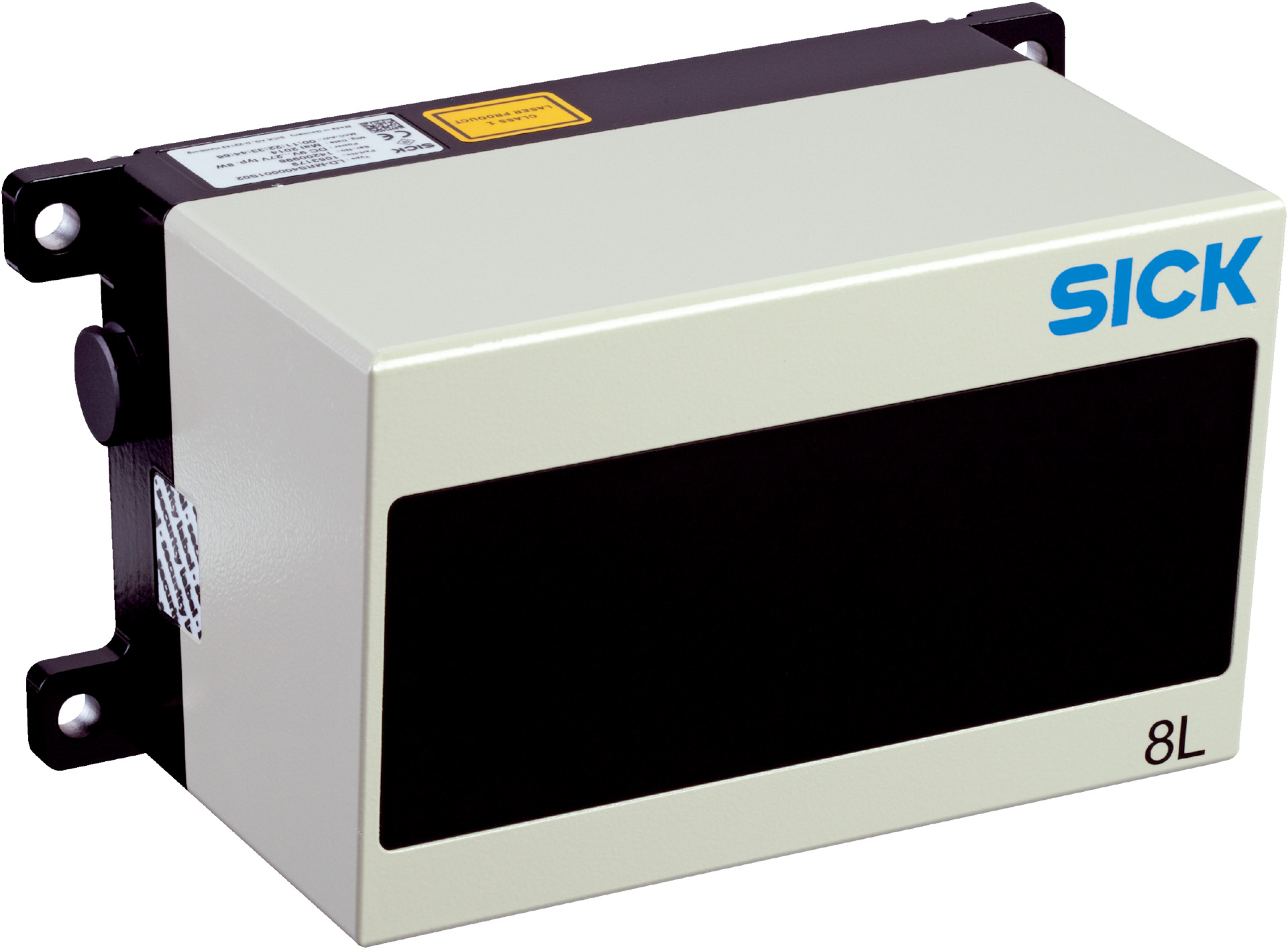

Infrared Laser Scanner | IP69K Rated | 3D Scanning | 0.5m to 320m Range | by SICK
The Infrared Laser Scanner LD-MRS800001S01 is designed for precise object detection and tracking in both indoor and outdoor environments. With a robust IP69K rated housing, it operates effectively in harsh conditions, making it ideal for industrial automation and safety monitoring. Its scanning range extends from 0.5m to 320m, ensuring versatility for various applications, including vehicle ego motion data integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 88mm x 94mm x 165mm
- Weight: 1 kg
Key Features
- Infrared light source (905 nm, ± 10 nm)
- Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Horizontal aperture angle 85° with 8 scan layers, extendable to 110° with 4 scan layers
- Vertical aperture angle 4.2° to 6.4°, ± 0.2°
- Horizontal angular resolution options: 0.125°, 0.25°, 0.5°
- Vertical angular resolution 0.8°
- Scanning frequency from 12.5 Hz to 50 Hz with object tracking at 12.5 Hz
- Working range from 0.5 m to 320 m
- Scanning range: 50 m at 10% remission factor, 150 m at 90% remission factor
- Evaluates up to 3 echoes
- IP69K rated housing for harsh environments
- Supply voltage 9 V to 30 V with 8 W power consumption
- Multiple interface options including Ethernet (TCP/IP), RS-232, and CAN
- Operating temperature range from -40 °C to +70 °C
- Weight approximately 1 kg with compact dimensions
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Outdoor and indoor object detection and tracking
- Industrial automation and safety monitoring
- Vehicle ego motion data integration
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP69K housing reduces need for frequent replacements
- Low power consumption of 8 W supports energy efficiency
- Long MTBF and MTTFD (>100 years) reduce waste and maintenance frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LD-MRS800001S01 Infrared Laser Scanner is available for immediate purchase, ideal for industrial automation, safety monitoring, and vehicle tracking applications.
