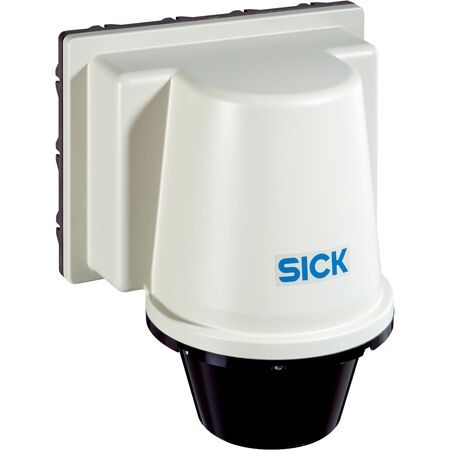

Infrared Laser Scanner LD-LRS3611 | 360° Aperture Angle | IP67 Rated | Adjustable Scanning Frequency | by SICK
The Infrared Laser Scanner LD-LRS3611 features a 360° horizontal aperture angle and adjustable scanning frequency from 5 Hz to 15 Hz, making it ideal for both outdoor and indoor environment scanning. With a robust IP67 rated housing and a working range of up to 250 m, this scanner is built for industrial automation and safety monitoring, ensuring precise object detection and reliable performance in various conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 360° horizontal
- Angular resolution: 0.0625° interlaced
- Scanning frequency: 5 Hz to 15 Hz
- Working range: 5 m to 250 m
- Scanning range at 10% remission factor: 120 m
- Scanning range at 90% remission factor: 250 m
- Connection type: 1 x 20-pin Harting plug
- Supply voltage: 24 V DC, ± 15%
- Power consumption: 36 W plus 140 W heating
- Housing material: PU (polyurethane rigid integral foam)
- Enclosure rating: IP67
- Protection class: III
- MTBF: 86 years
- MTTFD: > 100 years
- Data transmission rate: up to 100 Mbit/s Ethernet, 19,200 to 115,200 Baud serial
- Digital outputs: 1 digital output
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -25 °C to +80 °C
- Dimensions (H x L x W): 391mm x 250mm x 350mm
- Weight: 9.1 kg
Key Features
- Infrared light source (905 nm) with laser class 1 safety
- 360° horizontal aperture angle with 0.0625° interlaced resolution
- Scanning frequency adjustable between 5 Hz and 15 Hz
- Working range from 5 m up to 250 m depending on remission factor
- IP67 rated polyurethane rigid integral foam housing for durability
- Operating temperature range from -25 °C to +50 °C
- Ethernet (TCP/IP) and RS-422 serial communication interfaces
- Heating function for operation in cold environments
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical connections to ensure compliance and optimal performance.
Applications
- Outdoor and indoor environment scanning
- Object detection and ranging
- Industrial automation and safety monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements
- Low power consumption with efficient heating system
- Supports precise detection reducing waste and improving operational efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LD-LRS3611 Infrared Laser Scanner is available for immediate purchase, ideal for industrial and safety monitoring applications in both outdoor and indoor environments.
