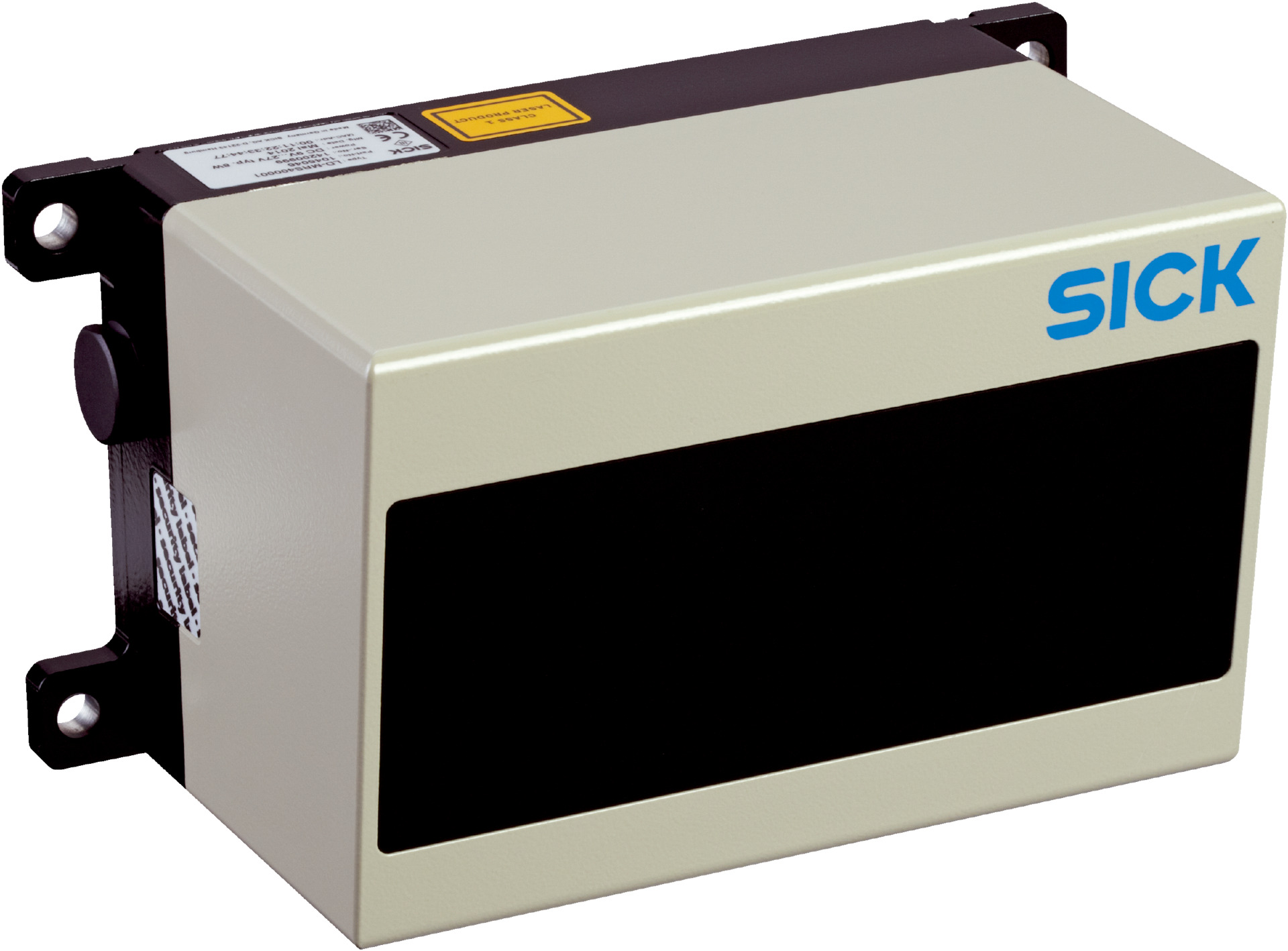

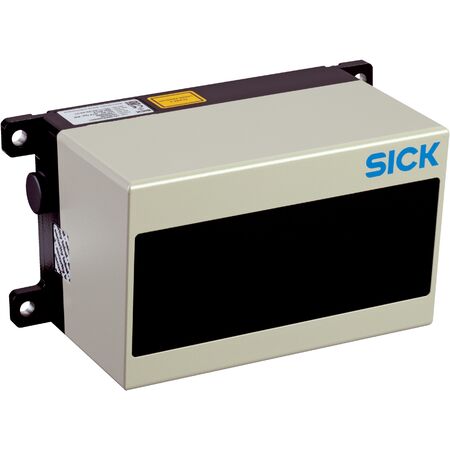

Infrared Laser Scanner LD-MRS400001 | IP69K Rated | 320m Working Range | 85° Horizontal Aperture | by SICK
The Infrared Laser Scanner LD-MRS400001 is designed for precise object detection and field evaluation in both indoor and outdoor environments. With a robust IP69K rating and a working range of up to 320 meters, this scanner is perfect for industrial automation and safety applications. Its advanced features include a scanning frequency of 12.5 Hz to 50 Hz and the ability to evaluate up to 3 echoes, ensuring reliable performance in various conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Infrared Laser Scanner LD-MRS400001 | IP69K Rated | 320m Working Range | 85° Horizontal Aperture | by SICK
Brand: SICK
SKU: 1045046
Alternatively Known As: Infrared Laser Scanner, LD-MRS4000, SICK Laser Scanner, Industrial Laser Scanner
Technical Specifications
- Dimensions (H x L x W): 88mm x 94mm x 165mm
- Weight: 1 kg
Key Features
- Infrared light source (905 nm, ± 10 nm)
- Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Horizontal aperture angle 85° with 4 scan layers, extendable to 110° with 2 scan layers
- Vertical aperture angle 3.2°
- Scanning frequency from 12.5 Hz to 50 Hz
- Angular resolution options: Horizontal 0.125°, 0.25°, 0.5°; Vertical 0.8°
- Working range from 0.5 m up to 320 m
- Scanning range of 50 m at 10% remission factor
- Evaluates up to 3 echoes
- Connection via Odu Mini-snap round connectors (4-pin and 12-pin)
- Supply voltage 9 V to 30 V with 8 W power consumption
- Housing made of aluminum with gray and black color options
- Enclosure rating IP69K and protection class III
- MTBF and MTTFD greater than 100 years
- Supports Ethernet (TCP/IP), Serial (RS-232), and CAN interfaces
- Ambient operating temperature from -40 °C to +70 °C
- Ambient light immunity up to 100 klx
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Outdoor and indoor object detection and field evaluation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable housing and long MTBF reduce waste and replacement frequency
- Low power consumption of 8 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LD-MRS400001 Infrared Laser Scanner is available for immediate purchase, ideal for industrial automation and safety applications.
