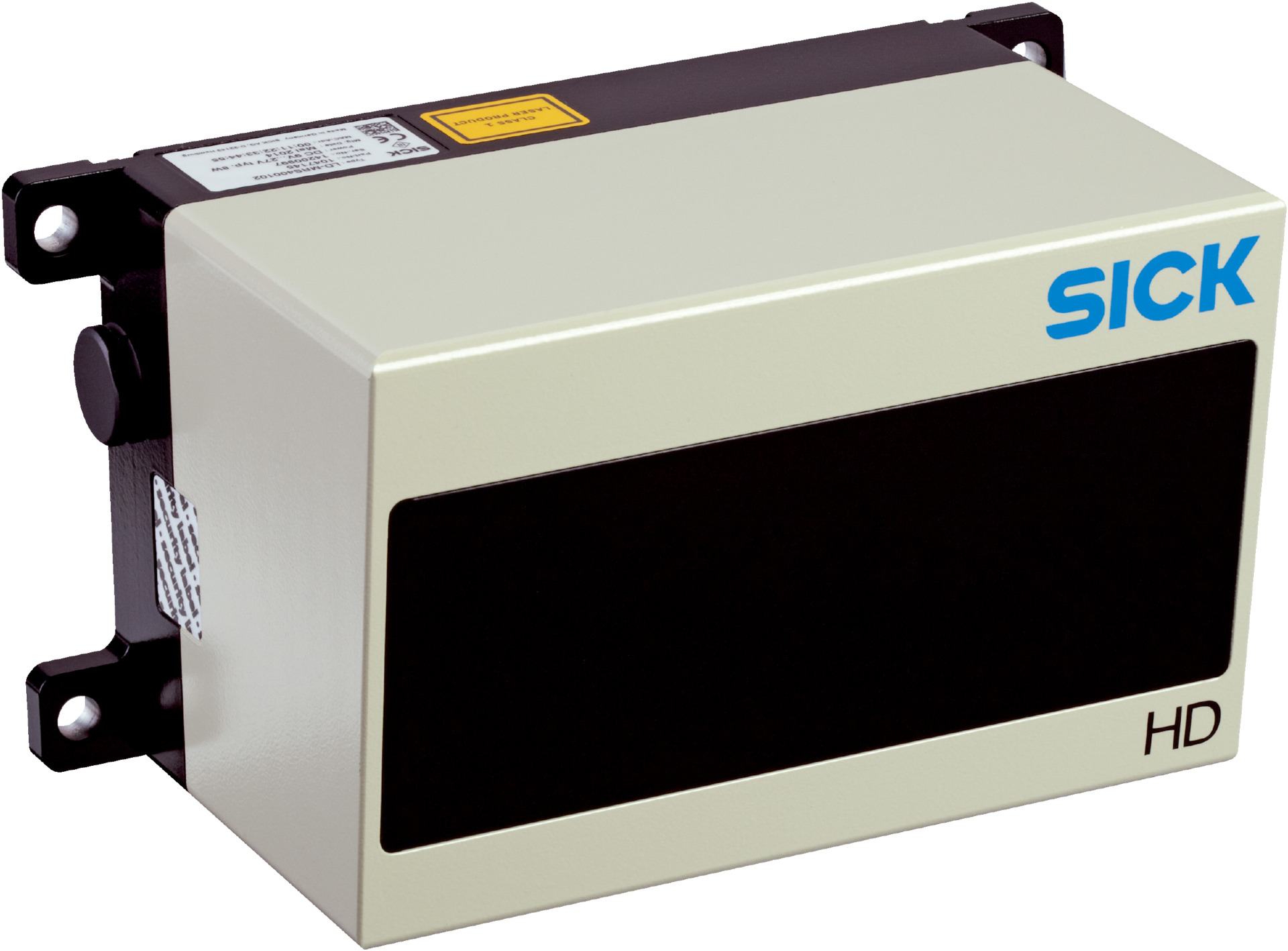

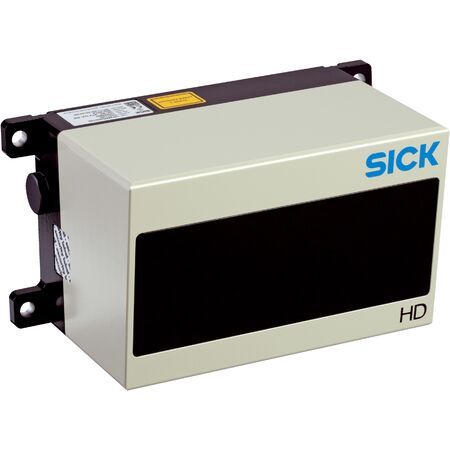

Infrared Laser Scanner LD-MRS400102 HD | IP69K Rated | 320m Working Range | 12.5-50Hz Scanning Frequency | by SICK
The Infrared Laser Scanner LD-MRS400102 HD is designed for precise object detection and scanning in various environments. With a robust IP69K rating and a long working range of up to 320 meters, it operates efficiently in temperatures from -40 °C to +70 °C. Ideal for industrial automation and safety monitoring, this scanner evaluates up to 3 echoes per scan, ensuring reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Infrared Laser Scanner LD-MRS400102 HD | IP69K Rated | 320m Working Range | 12.5-50Hz Scanning Frequency | by SICK
Brand: SICK
SKU: 1047145
Alternatively Known As: Infrared Laser Scanner, LD-MRS400102, SICK Laser Scanner, Industrial Laser Scanner, 3D Laser Scanner
Technical Specifications
- Light source: Infrared light (905 nm, ± 10 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: Horizontal 85° (4 scan layers), extendable to 110° (2 scan layers), Vertical 3.2°
- Scanning frequency: 12.5 Hz to 50 Hz
- Angular resolution: Horizontal 0.125°, 0.25°, 0.5°; Vertical 0.8°
- Working range: 0.5 m to 320 m
- Scanning range at 10% remission factor: 30 m
- Scanning range at 90% remission factor: 150 m
- Amount of evaluated echoes: 3
- Connection type: Odu Mini-snap round connectors (4-pin and 12-pin)
- Supply voltage: 9 V to 30 V
- Power consumption: 8 W
- Housing material: Aluminum
- Enclosure rating: IP69K
- Protection class: III
- Weight: 1 kg
- MTBF: > 100 years
- Ambient operating temperature: -40 °C to +70 °C
- Ambient light immunity: 100 klx
- Interfaces: Ethernet (TCP/IP), RS-232, CAN
- Dimensions (H x L x W): 88mm x 94mm x 165mm
- Weight: 1 kg
Key Features
- Infrared light source (905 nm, ± 10 nm)
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Wide aperture angle: Horizontal 85° with 4 scan layers, extendable to 110° with 2 scan layers; Vertical 3.2°
- High scanning frequency from 12.5 Hz to 50 Hz
- Angular resolution options: Horizontal 0.125°, 0.25°, 0.5°; Vertical 0.8°
- Long working range from 0.5 m up to 320 m
- Scanning range varies with remission factor: 30 m at 10%, 150 m at 90%
- Evaluates up to 3 echoes per scan
- Robust housing with IP69K rating and aluminum material
- Wide ambient operating temperature range from -40 °C to +70 °C
- Multiple interface options including Ethernet (TCP/IP), RS-232, and CAN
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and industrial sensor integration to ensure compliance and optimal performance.
Applications
- Outdoor and indoor object detection and scanning
- Field evaluation and industrial automation
- Safety and monitoring in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 8 W
- Durable design reduces waste and replacement frequency
- Wide operating temperature range supports diverse environments reducing need for additional climate control
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LD-MRS400102 HD Infrared Laser Scanner is available for immediate purchase, ideal for industrial automation, safety monitoring, and object detection applications.
