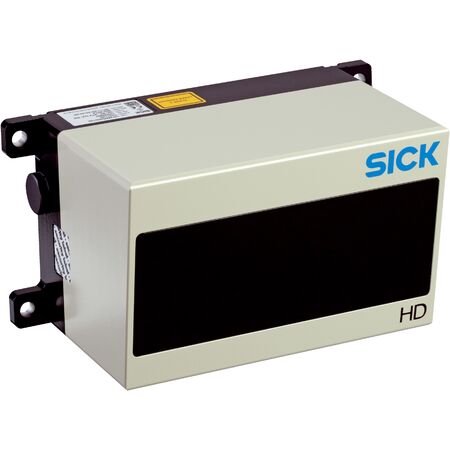

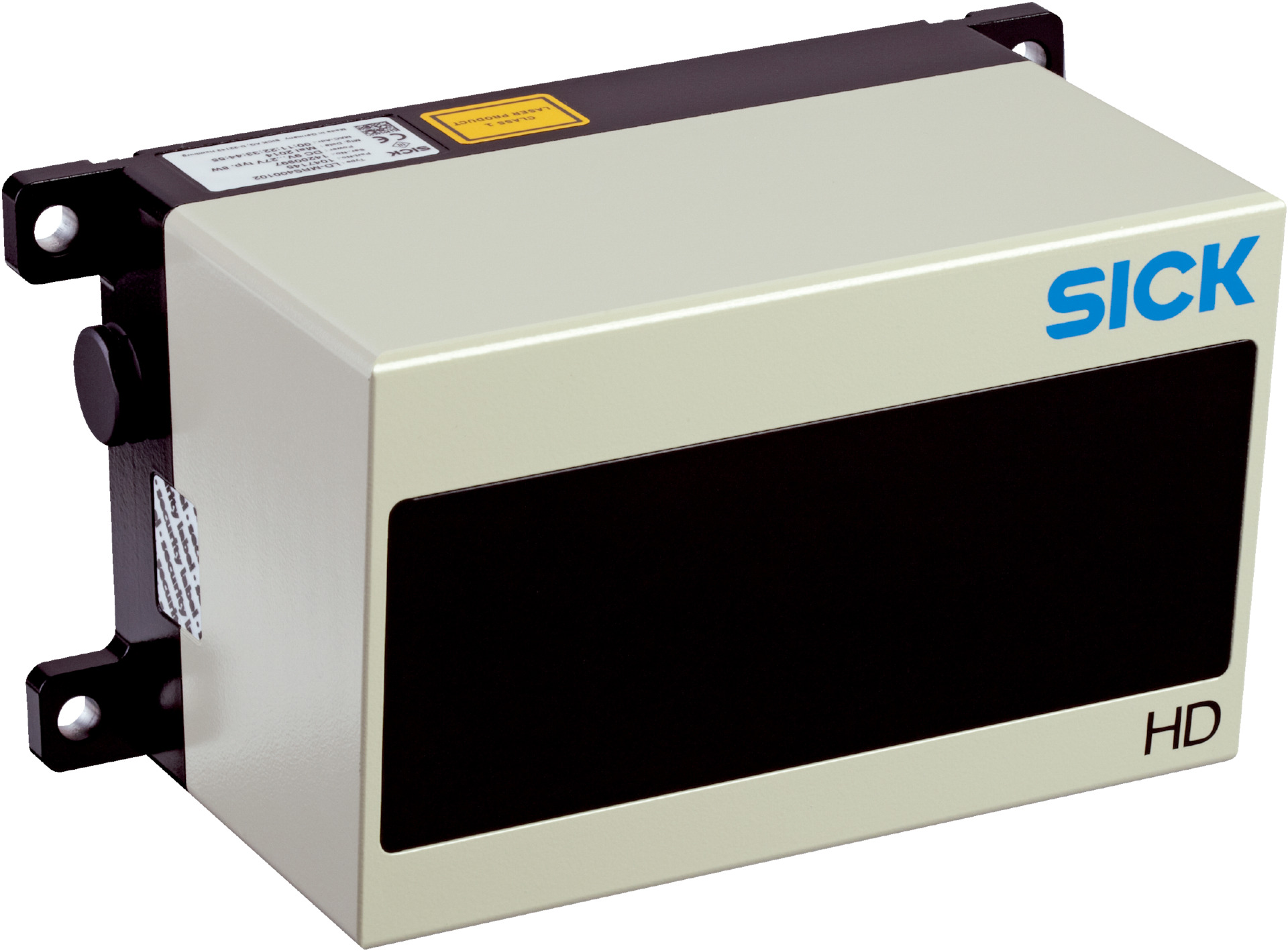

Infrared Laser Scanner LD-MRS400102S01 | IP69K Rated | 320m Working Range | 12.5Hz to 50Hz Scanning Frequency | by SICK
The Infrared Laser Scanner LD-MRS400102S01 is designed for precise object detection and tracking, featuring a robust IP69K rated aluminum housing and a wide working range of 0.5 m to 320 m. With a high scanning frequency of 12.5 Hz to 50 Hz and multiple evaluated echoes, it's perfect for industrial automation and safety monitoring in both indoor and outdoor environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Infrared Laser Scanner LD-MRS400102S01 | IP69K Rated | 320m Working Range | 12.5Hz to 50Hz Scanning Frequency | by SICK
Brand: SICK
SKU: 1052961
Alternatively Known As: Infrared Laser Scanner, 3D Laser Scanner, Object Tracking Laser Sensor, SICK LD MRS400102S01
Technical Specifications
- Light source: Infrared light (905 nm, ± 10 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 85°, extendable to 110° with 2 scan layers
- Aperture angle vertical: 3.2°
- Horizontal angular resolution: 0.125°
- Vertical angular resolution: 0.8°
- Scanning frequency: 12.5 Hz to 50 Hz
- Working range: 0.5 m to 320 m
- Scanning range at 10% remission: 30 m
- Scanning range at 90% remission: 150 m
- Amount of evaluated echoes: 3
- Connection type: Odu Mini-snap round connectors (4-pin and 12-pin)
- Supply voltage: 9 V to 30 V
- Power consumption: 8 W
- Housing material: Aluminum
- Enclosure rating: IP69K
- Protection class: III
- Weight: 1 kg
- MTBF: > 100 years
- Interfaces: Ethernet (TCP/IP), RS-232 serial, CAN
- Data transmission rate: 100 Mbit/s (Ethernet), 57,600 Baud (Serial)
- Ambient operating temperature: -40 °C to +70 °C
- Ambient light immunity: 100 klx
- Dimensions (H x L x W): 88mm x 94mm x 165mm
- Weight: 1 kg
Key Features
- Infrared light source (905 nm, ± 10 nm)
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Wide aperture angle: Horizontal 85° (up to 110° with 2 scan layers), Vertical 3.2°
- High scanning frequency from 12.5 Hz to 50 Hz with object tracking at 12.5 Hz
- Working range from 0.5 m up to 320 m
- Multiple evaluated echoes (3) for enhanced detection
- Robust aluminum housing with IP69K rating for harsh environments
- Supports Ethernet (TCP/IP), RS-232 serial, and CAN interfaces
- Wide ambient operating temperature range from -40 °C to +70 °C
- High ambient light immunity up to 100 klx
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure proper connection and compliance with safety standards.
Applications
- Outdoor and indoor object detection and tracking
- Industrial automation and safety monitoring
- Vehicle ego motion data input and object output
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of 8 W reduces energy usage
- Durable IP69K rated housing ensures long product life and reduces waste
- Supports precise detection reducing false alarms and unnecessary interventions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and duration.
Available Now
The SICK LD-MRS400102S01 HD Infrared Laser Scanner is available for immediate purchase, ideal for industrial automation, safety monitoring, and object tracking applications.
