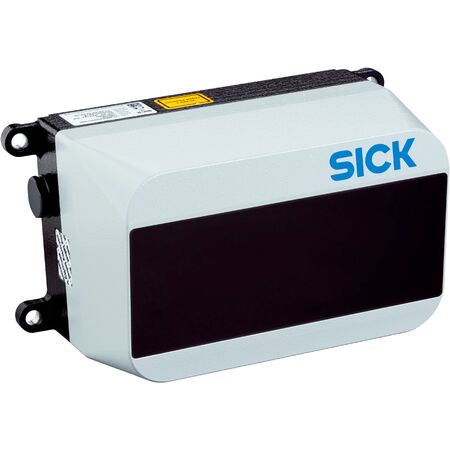

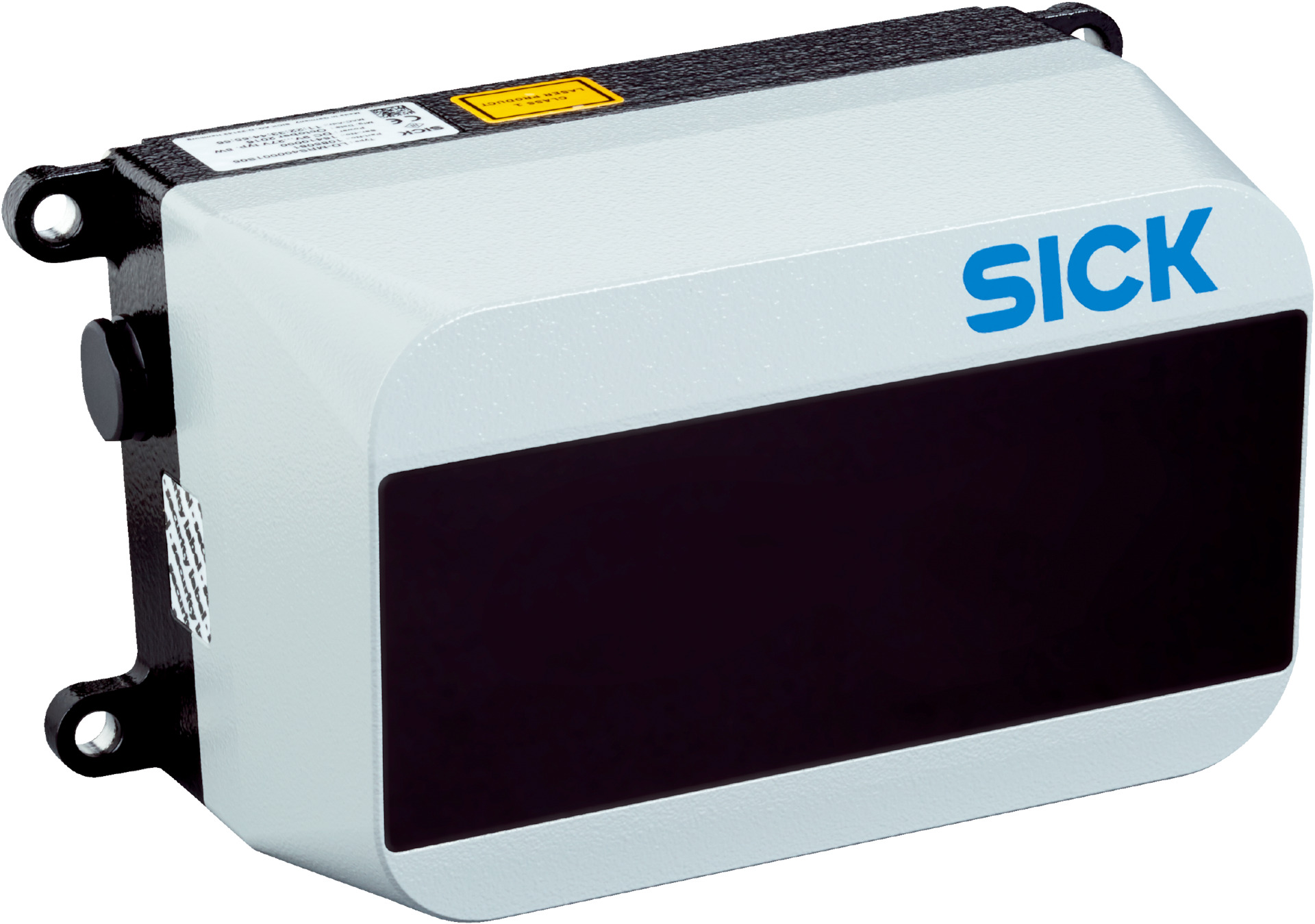

Infrared Laser Scanner LD-MRS420201 | IP69K Rated | 320m Working Range | 12.5Hz to 50Hz Scanning Frequency | by SICK
The Infrared Laser Scanner LD-MRS420201 is designed for precise object detection and tracking in both indoor and outdoor environments. With a robust IP69K housing and a working range of up to 320 meters, it excels in industrial automation and safety monitoring applications. Its high scanning frequency of 12.5Hz to 50Hz ensures reliable performance, making it ideal for various operational needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared light (905 nm, ± 10 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 85°, up to 110° with 2 scan layers
- Aperture angle vertical: 3.2°
- Horizontal angular resolution: 0.125°, 0.25°, 0.5°
- Vertical angular resolution: 0.8°
- Scanning frequency: 12.5 Hz to 50 Hz
- Working range: 0.5 m to 320 m
- Scanning range at 10% remission factor: 50 m
- Scanning range at 90% remission factor: 150 m
- Amount of evaluated echoes: 3
- Connection type: Odu Mini-snap round connectors (4-pin and 12-pin)
- Supply voltage: 9 V to 30 V
- Power consumption: 8 W
- Housing material: Aluminum
- Enclosure rating: IP69K
- Protection class: III
- Weight: 0.77 kg
- MTBF: > 100 years
- Ambient operating temperature: -40 °C to +70 °C
- Ambient light immunity: 100 klx
- Interfaces: Ethernet (TCP/IP), Serial (RS-232), CAN
- Dimensions (H x L x W): 88mm x 91.3mm x 164.5mm
- Weight: 0.77 kg
Key Features
- Infrared light source (905 nm, ± 10 nm)
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Wide aperture angle: Horizontal 85° (up to 110° with 2 scan layers), Vertical 3.2°
- High scanning frequency from 12.5 Hz to 50 Hz with object tracking at 12.5 Hz
- Working range from 0.5 m up to 320 m
- Multiple evaluated echoes (3) for enhanced detection
- Robust housing with IP69K rating and protection class III
- Supports Ethernet (TCP/IP), Serial (RS-232), and CAN interfaces
- Wide ambient operating temperature range from -40 °C to +70 °C
- High ambient light immunity up to 100 klx
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical connections to ensure compliance with safety standards.
Applications
- Outdoor and indoor object detection and tracking
- Industrial automation and safety monitoring
- Vehicle ego motion data input and object output
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 8 W reduces energy usage
- Durable housing extends product lifespan, reducing waste
- High ambient light immunity ensures reliable operation in diverse environments
Warranty Information
Warranty details are provided by the manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK LD-MRS420201 Infrared Laser Scanner is available for immediate purchase, ideal for industrial automation, safety monitoring, and object tracking applications.
