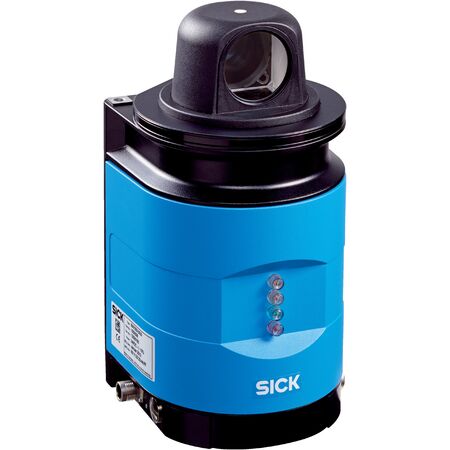

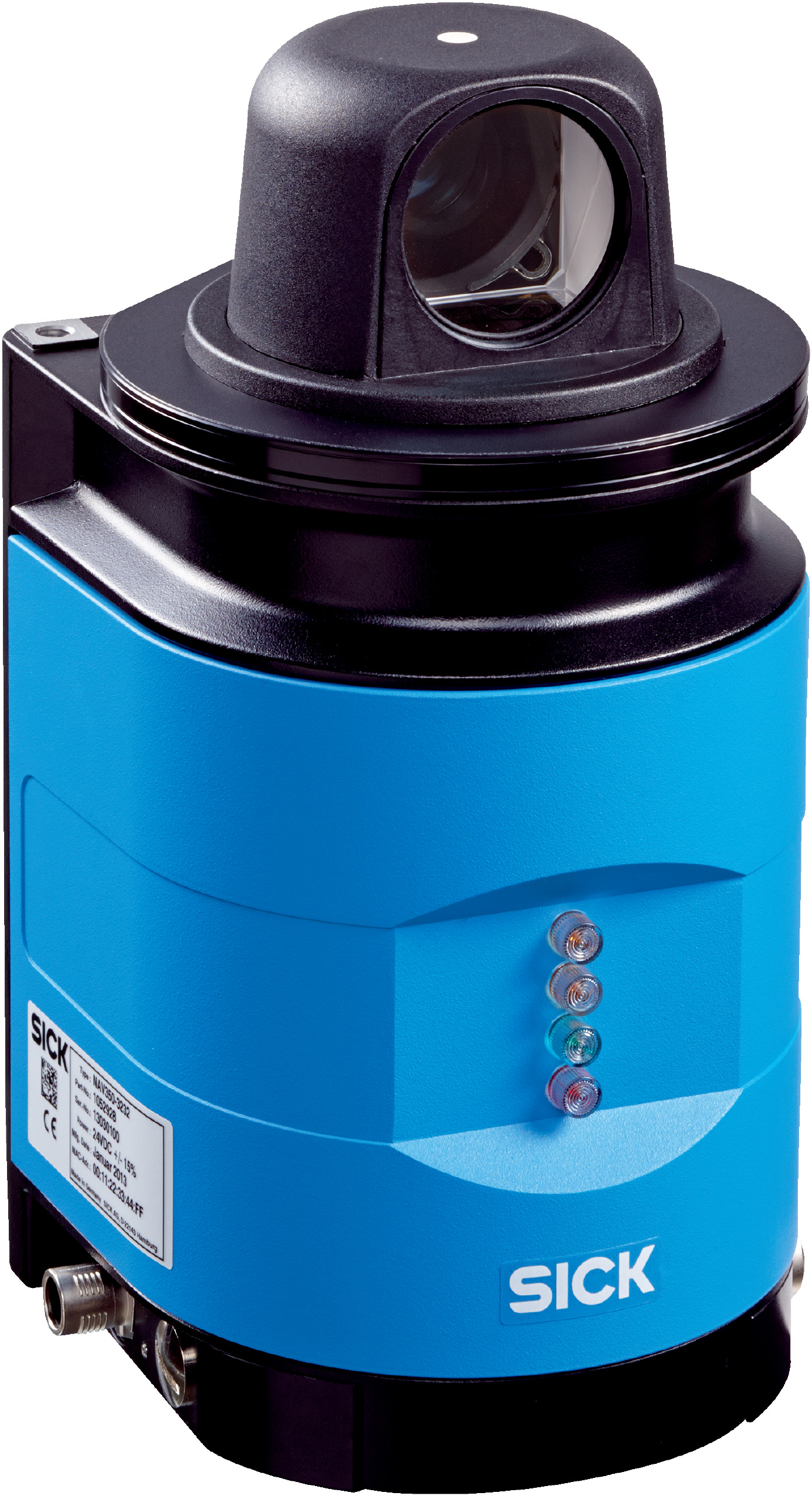

Infrared Laser Scanner LD-OEM1500 | 360° Aperture Angle | 0.125° Angular Resolution | IP65 Rated | by SICK
The Infrared Laser Scanner LD-OEM1500 is designed for precise distance measurement and object detection in indoor applications. With a 360° horizontal aperture angle and 0.125° angular resolution, it offers a working range of 0.5 m to 250 m, making it ideal for industrial automation and field evaluations. Its robust aluminum housing and IP65 rating ensure durability and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 360°
- Angular resolution: 0.125° (interlaced 0.0625°)
- Scanning frequency: 5 Hz to 20 Hz
- Working range: 0.5 m to 250 m
- Scanning range at 10% remission: 55 m
- Scanning range at 90% remission: 180 m
- Connection type: 3 x M12 male/female connectors
- Supply voltage: 24 V DC ± 15%
- Power consumption: 36 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Weight: 2.4 kg
- MTBF: 86 years
- MTTFD: > 100 years
- Data transmission rate: 19,200 Baud to 115,200 Baud
- Digital outputs: 4
- Optical indicators: 4 LEDs
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +80 °C
- Permissible relative humidity: 85%, non-condensing
- Dimensions (H x L x W): 222mm x 115mm x 120mm
- Weight: 2.4 kg
Key Features
- Infrared light source (905 nm) with laser class 1 safety
- 360° horizontal aperture angle with 0.125° angular resolution
- Scanning frequency adjustable from 5 Hz to 20 Hz
- Working range from 0.5 m up to 250 m
- High scanning range with 55 m at 10% remission and 180 m at 90% remission
- Robust aluminum die cast housing with IP65 rating
- Multiple interfaces including Ethernet TCP/IP and RS-232 serial communication
- 4 digital outputs and 4 LED status indicators
- Operating temperature range from 0 °C to +50 °C
- MTBF of 86 years and MTTFD greater than 100 years
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Indoor applications requiring precise distance measurement and object detection
- Field evaluation and industrial automation
- Non-safety related machine monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable aluminum housing reduces need for frequent replacements
- Low power consumption of 36 W supports energy efficiency
- Non-safety component reduces complexity and waste in safety system upgrades
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LD-OEM1500 Infrared Laser Scanner is available for immediate purchase. Ideal for indoor industrial automation and field evaluation applications.
