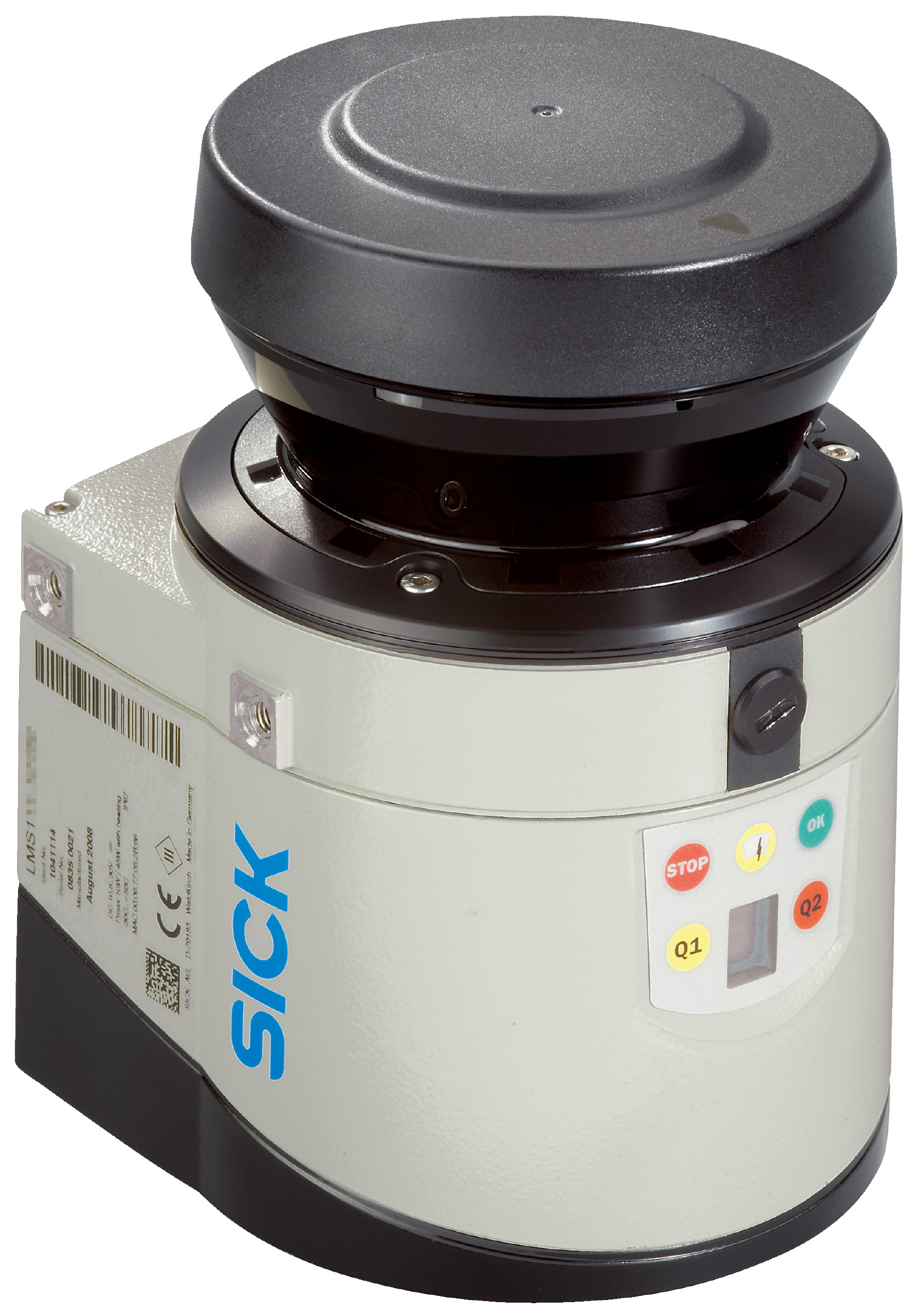

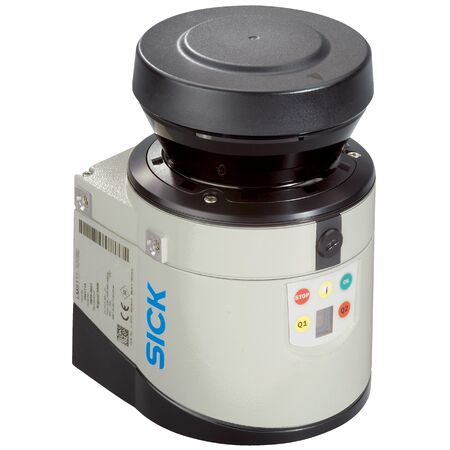

Infrared Laser Scanner LMS151-10100 | 270° Aperture Angle | 25/50 Hz Scanning Frequency | IP67 Rated | by SICK
The Infrared Laser Scanner LMS151-10100 is designed for precise scanning in both indoor and outdoor environments, featuring a wide 270° aperture angle and scanning frequency options of 25 Hz and 50 Hz. With a robust IP67 rating for dust and water protection, this scanner is perfect for industrial automation and safety monitoring, ensuring reliable performance even in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Infrared Laser Scanner LMS151-10100 | 270° Aperture Angle | 25/50 Hz Scanning Frequency | IP67 Rated | by SICK
Brand: SICK
SKU: 1047607
Alternatively Known As: Infrared Laser Scanner, SICK LMS151, Industrial Laser Scanner, 2D Laser Scanner
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution: 0.25° or 0.5°
- Scanning frequency: 25 Hz or 50 Hz
- Working range: 0.5 m to 50 m
- Scanning range at 10% remission factor: 18 m
- Scanning range at 90% remission factor: 50 m
- Amount of evaluated echoes: 2
- Heating: Yes
- Connection type: 1 x M12 round connector
- Supply voltage: 10.8 V DC to 30 V DC
- Power consumption: Typical 8 W, heating typical 35 W
- Enclosure rating: IP67 (EN 60529)
- Protection class: III (EN 61010-1:2010-10)
- Response time: ≥ 20 ms
- Detectable object shape: Almost any
- Systematic error: ± 30 mm
- Statistical error: 12 mm
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Object remission: 3% to > 1000% (reflectors)
- Electromagnetic compatibility: EN 61000-6-2:2005 / EN 61000-6-3:2007+A1:2011
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Ambient operating temperature: –30 °C to +50 °C
- Storage temperature: –30 °C to +70 °C
- Ambient light immunity: 80,000 lx
- Dimensions (H x L x W): 162mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source (905 nm) with laser class 1 safety
- Wide horizontal aperture angle of 270° with 0.25° angular resolution
- Scanning frequency options of 25 Hz and 50 Hz
- Working range from 0.5 m up to 50 m
- Fog correction capability for enhanced performance in adverse conditions
- IP67 rated enclosure for dust and water protection
- Integrated heating for operation in cold environments
- Multiple interfaces including Ethernet, RS-232, and CAN
- 7-segment display with LEDs for device status and warnings
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connections to ensure compliance with safety standards.
Applications
- Outdoor and indoor environment scanning
- Field evaluation and object detection
- Industrial automation and safety monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with typical 8 W operation and efficient heating system
- Durable IP67 housing reduces need for frequent replacements
- Supports long operational life with MTBF greater than 100 years
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now
The SICK LMS151-10100 Infrared Laser Scanner is available for immediate purchase, ideal for industrial automation, safety monitoring, and environmental scanning applications.
