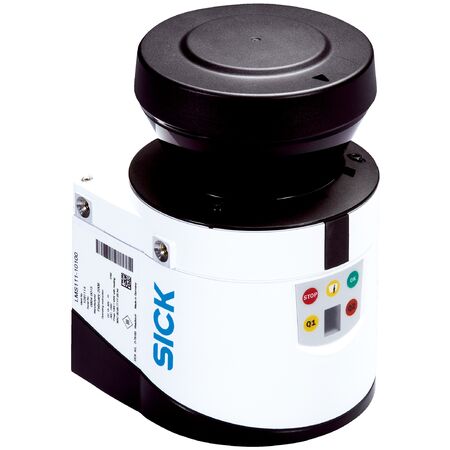

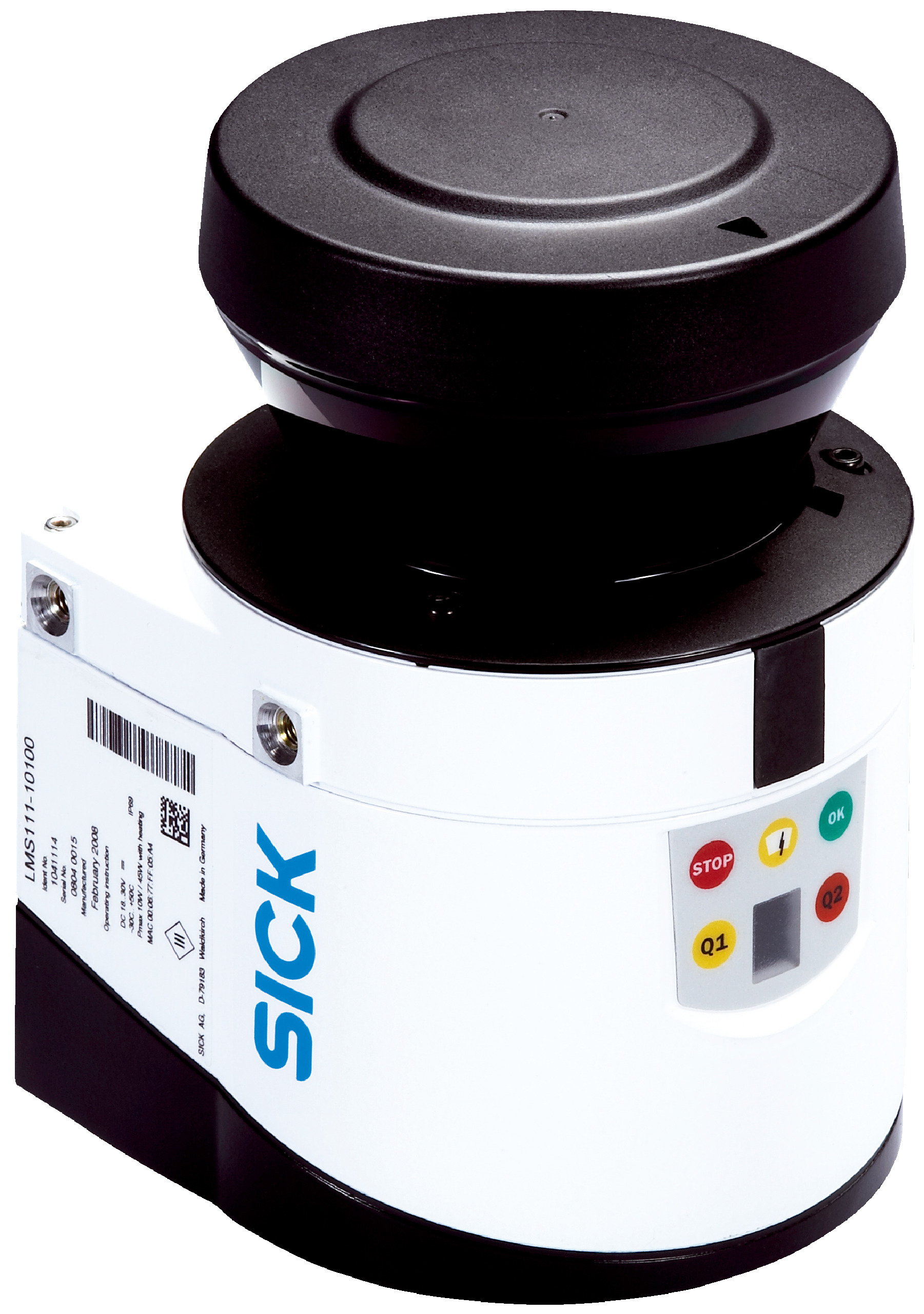

Infrared Laser Scanner LMS153-10100 | 270° Aperture Angle | 25/50 Hz Scanning Frequency | IP67 Rated | by SICK
The Infrared Laser Scanner LMS153-10100 is designed for precise environmental scanning and object detection, featuring a 270° horizontal aperture angle and scanning frequency options of 25 Hz and 50 Hz. With a robust IP67 enclosure, it ensures reliable performance in both indoor and outdoor settings, making it ideal for industrial automation and safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 270° horizontal
- Angular resolution: 0.25° and 0.5° options
- Scanning frequency: 25 Hz or 50 Hz
- Working range: 0.5 m to 50 m
- Scanning range at 10% remission factor: 18 m
- Scanning range at 90% remission factor: 50 m
- Amount of evaluated echoes: 2
- Heating: Yes
- Connection type: 1 x M12 round connector
- Supply voltage: 10.8 V DC to 30 V DC
- Power consumption: Typical 8 W, heating typical 35 W
- Enclosure rating: IP67 (EN 60529)
- Protection class: III (EN 61010-1:2010-10)
- Response time: ≥ 20 ms
- Detectable object shape: Almost any
- Systematic error: ± 30 mm
- Statistical error: 12 mm
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Data transmission rates: 9.6 kBaud to 115.2 kBaud
- Ethernet: TCP/IP 10/100 MBit/s
- Digital inputs: 4 (2 suitable for encoders)
- Digital outputs: 3
- Ambient operating temperature: –30 °C to +50 °C
- Storage temperature: –30 °C to +70 °C
- Ambient light immunity: 80,000 lx
- Dimensions (H x L x W): 162mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source (905 nm) with laser class 1 safety
- Wide horizontal aperture angle of 270° with 0.25° angular resolution
- Scanning frequency options of 25 Hz and 50 Hz
- Working range from 0.5 m up to 50 m
- Fog correction capability
- IP67 rated enclosure for dust and water protection
- Integrated heating for operation in cold environments
- Multiple communication interfaces including Ethernet, RS-232, and CAN
- 7-segment display with LEDs for device status and warnings
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with laser safety and industrial sensor integration to ensure compliance with safety standards and optimal performance.
Applications
- Outdoor and indoor environment scanning
- Object detection and field evaluation
- Industrial automation and safety monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient infrared laser technology reduces power consumption.
- Durable IP67 housing extends product life and reduces waste.
- Fog correction enhances reliability in adverse weather, reducing need for replacements.
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and duration.
Available Now
The SICK LMS153-10100 Infrared Laser Scanner is available for immediate purchase, ideal for industrial automation, safety monitoring, and environmental scanning applications.
