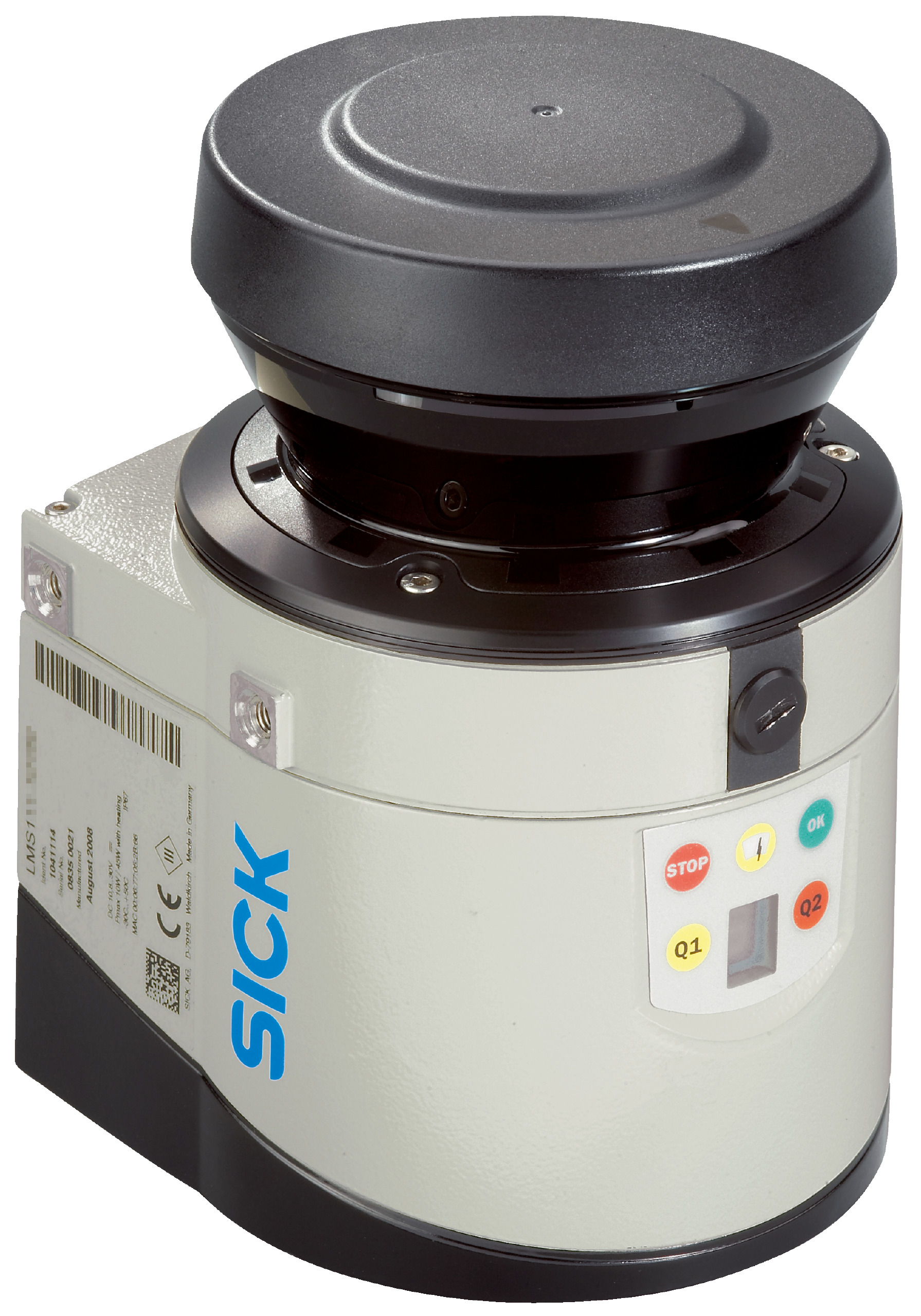

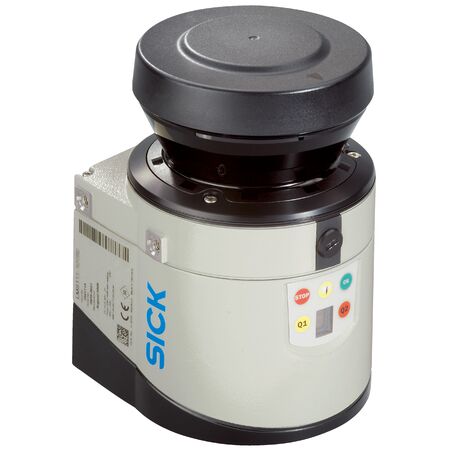

Infrared Laser Scanner LMS161-15100 | 270° Aperture Angle | 25/50 Hz Scanning Frequency | IP67 Rated | by SICK
The Infrared Laser Scanner LMS161-15100 is designed for precise object detection and field evaluation in both indoor and outdoor environments. With a wide 270° aperture angle and scanning frequency options of 25 Hz and 50 Hz, it ensures reliable performance in industrial automation and safety monitoring applications. Its IP67 rated enclosure provides excellent dust and water protection, while integrated heating allows for operation in cold conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 270° horizontal
- Angular resolution: 0.25° or 0.5°
- Scanning frequency: 25 Hz or 50 Hz
- Working range: 0.5 m to 50 m
- Scanning range at 10% remission factor: 30 m
- Scanning range at 90% remission factor: 50 m
- Amount of evaluated echoes: 2
- Heating: Yes
- Connection type: 4 x M12 round connectors
- Supply voltage: 10.8 V DC to 30 V DC
- Power consumption: Typical 8 W, heating typical 35 W
- Enclosure rating: IP67 (EN 60529)
- Protection class: III (EN 61010-1:2010-10)
- Response time: ≥ 20 ms
- Detectable object shape: Almost any
- Systematic error: ± 30 mm
- Statistical error: 12 mm
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Object remission: 3% to >1000% (reflectors)
- Electromagnetic compatibility: EN 61000-6-2:2005 / EN 61000-6-3:2007+A1:2011
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Ambient operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Ambient light immunity: 80,000 lx
- Dimensions (H x L x W): 162mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source (905 nm) with laser class 1 safety
- Wide horizontal aperture angle of 270° with 0.25° angular resolution
- Scanning frequency options of 25 Hz and 50 Hz
- Working range from 0.5 m up to 50 m
- Fog correction capability for enhanced performance in adverse conditions
- IP67 rated enclosure for dust and water protection
- Integrated heating for operation in cold environments
- Multiple interfaces including Ethernet (TCP/IP), RS-232 serial, and CAN
- Digital inputs and outputs with encoder support
- 7-segment display with LEDs for device status and warnings
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure compliance with electrical safety standards and optimal device performance.
Applications
- Outdoor and indoor environment scanning
- Object detection and field evaluation
- Industrial automation and safety monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with typical 8 W operation and efficient heating system
- Durable IP67 housing reduces need for frequent replacements
- Long MTBF (>100 years) ensures extended product life and reduced waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now
The SICK LMS161-15100 Infrared Laser Scanner is available for immediate purchase, ideal for industrial automation, safety monitoring, and object detection applications.
