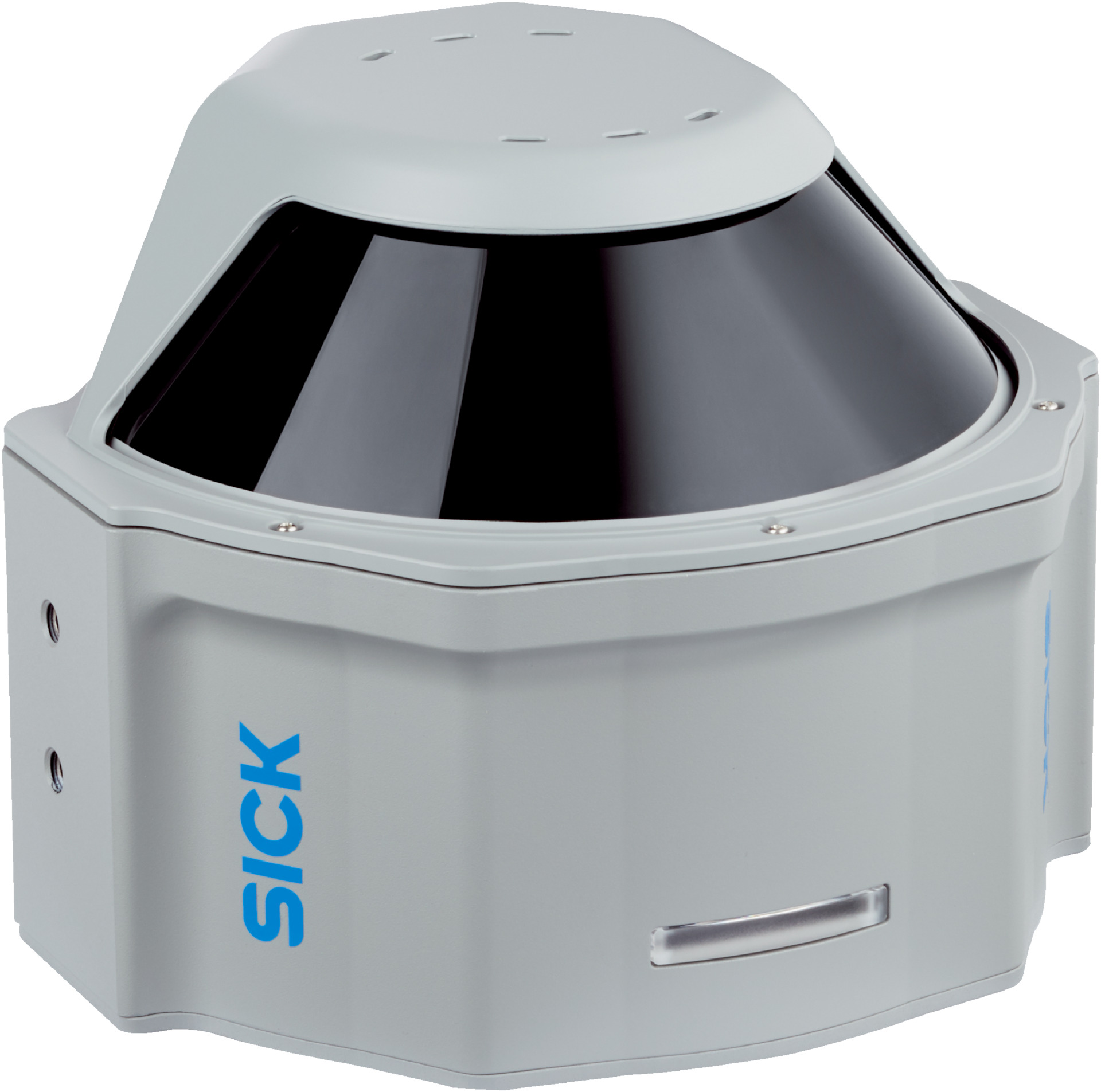

Infrared Laser Scanner MRS6224R-131001 | 870 nm Wavelength | IP65 & IP67 Rated | by SICK
The Infrared Laser Scanner MRS6224R-131001 features an 870 nm infrared light source and a wide aperture angle of 120° horizontal and 15° vertical, making it ideal for both indoor and outdoor distance measurement applications. With a robust aluminum and PMMA plastic housing, it offers IP65 and IP67 protection, ensuring durability in industrial environments. Perfect for automation and safety monitoring, this laser sensor supports multiple echo evaluations and operates efficiently in temperatures ranging from -20 °C to +60 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared light (870 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: Horizontal 120°, Vertical 15°
- Angular resolution: Horizontal 0.13°, Vertical 0.625°
- Scanning frequency: 10 Hz
- Working range: 0.5 m to 200 m
- Scanning range at 10% remission factor: 30 m (x1.4 in extended measuring mode)
- Scanning range at 90% remission factor: 75 m (x1.4 in extended measuring mode)
- Amount of evaluated echoes: 4
- Connection type: 3 x M12 round connectors (supply voltage, Ethernet, I/O)
- Supply voltage: 10 V to 29 V
- Power consumption: 20 W
- Housing material: Aluminum / plastic (PMMA)
- Enclosure rating: IP65, IP67
- Protection class: III
- MTBF: 9.5 years
- MTTFD: 19 years
- Systematic error: ±125 mm
- Statistical error: 30 mm
- Ethernet: TCP/IP, raw data interface/parameterization
- Data transmission rate: 100 Mbit/s to 1 Gbit/s
- Ambient operating temperature: -20 °C to +60 °C
- Dimensions (H x L x W): 131mm x 125.5mm x 176mm
- Weight: 2.4 kg
Key Features
- Infrared light source with 870 nm wavelength
- Laser class 1 compliant with IEC 60825-1:2014 and EN 60825-1:2014+A11:2021
- Wide aperture angle: Horizontal 120°, Vertical 15°
- High angular resolution: Horizontal 0.13°, Vertical 0.625°
- Scanning frequency of 10 Hz
- Working range from 0.5 m up to 200 m
- Multiple echo evaluation with up to 4 echoes
- Robust aluminum and PMMA plastic housing with IP65 and IP67 protection
- Ethernet interface with TCP/IP support and data rates from 100 Mbit/s to 1 Gbit/s
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and industrial sensor integration to ensure compliance and optimal performance.
Applications
- Outdoor and indoor distance measurement and scanning applications
- Industrial automation and safety monitoring
- Object detection and environmental mapping
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient infrared laser technology reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Supports precise measurement to optimize resource use in industrial applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MRS6224R-131001 Infrared Laser Sensor is available for immediate purchase, ideal for industrial automation, safety monitoring, and precise distance measurement applications.
