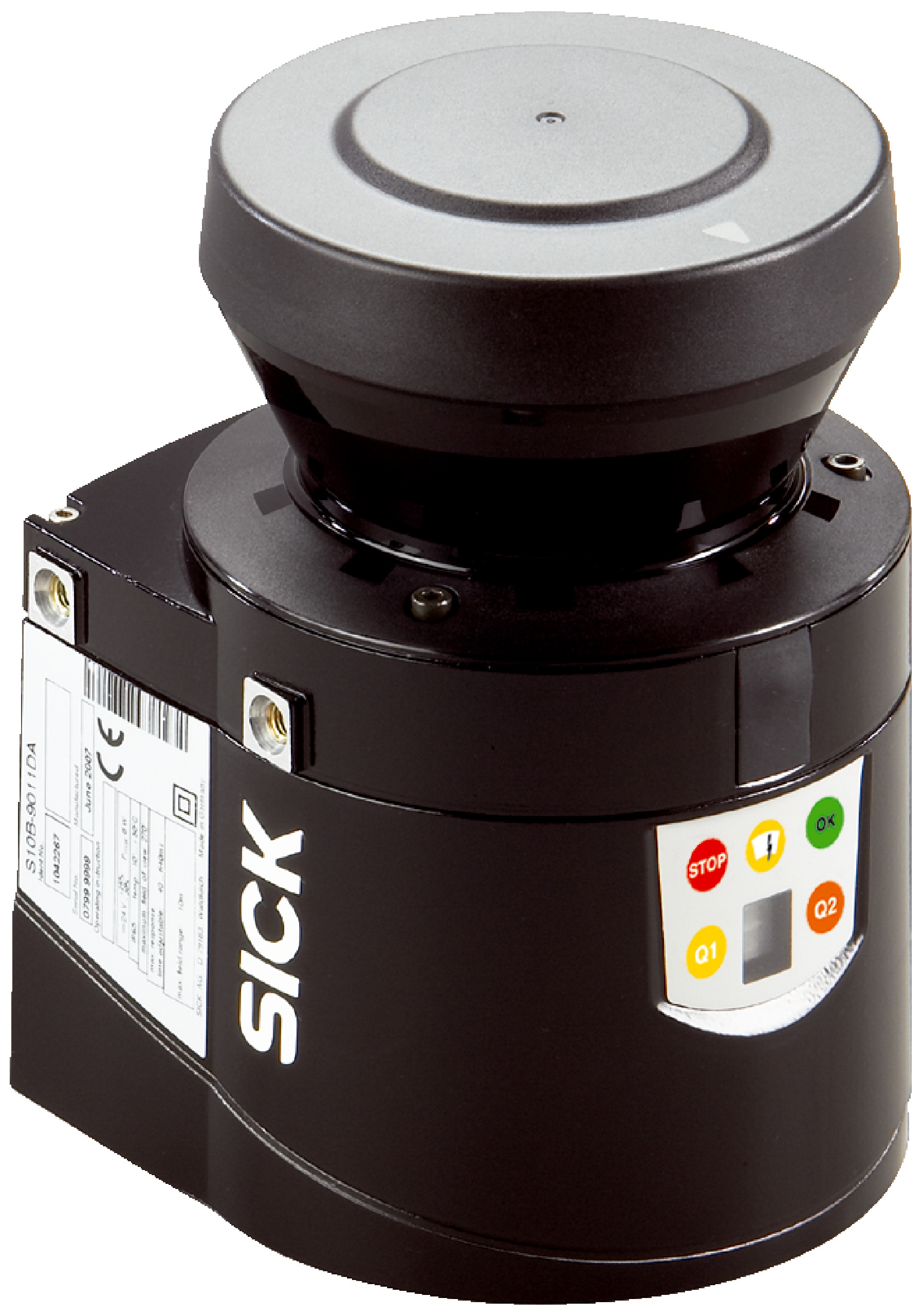

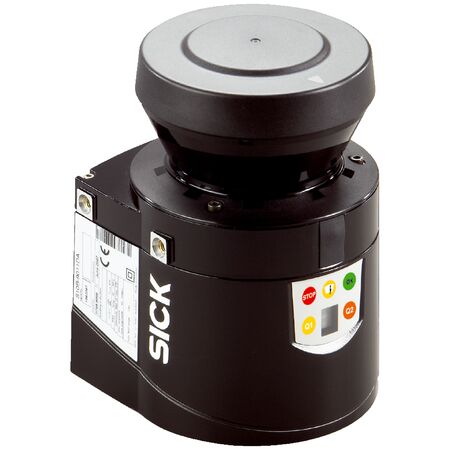

Infrared Laser Scanner S10B-9011BA | 270° Aperture Angle | 25 Hz Scanning Frequency | IP65 Rated | by SICK
The Infrared Laser Scanner S10B-9011BA is designed for precise indoor object detection, featuring a 270° aperture angle and a high scanning frequency of 25 Hz. With a robust IP65 rated enclosure, it ensures reliable performance in industrial automation and safety monitoring applications, making it ideal for machine safety and process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Infrared Laser Scanner S10B-9011BA | 270° Aperture Angle | 25 Hz Scanning Frequency | IP65 Rated | by SICK
Brand: SICK
SKU: 1042266
Alternatively Known As: Infrared Laser Scanner, Indoor Laser Sensor, SICK Laser Scanner, S10B Laser Sensor
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Horizontal angular resolution: 0.5° or 1° selectable
- Scanning frequency: 25 Hz
- Working range: 0 m to 10 m
- Scanning range at 10% remission factor: 4.5 m
- Connection type: 1 x system plug with screw terminal block (accessory)
- Supply voltage: 16.8 V DC to 30 V DC
- Power consumption: 8 W
- Output current: 250 mA
- Housing color: Black (RAL 9005)
- Enclosure rating: IP65 (EN 60529)
- Protection class: II (VDE 0106, EN50178)
- Weight: 1.2 kg without connecting cables
- MTBF: > 100 years
- Detectable object shapes: Almost any (diameter selectable from 30 mm to 150 mm)
- Number of field sets: 1 field pair (2 fields)
- Simultaneous evaluation cases: 1 (2 fields)
- Digital inputs/outputs: 1 input (standby), 5 outputs (Q1, Q2, Ǭ1, Ǭ2, diagnosis)
- Optical indicators: 7-segment display for contamination warning and initial condition
- Object remission: 1.8% to > 1000% (reflectors)
- EMC: EN 61000-6-2:2005-08
- Vibration resistance: IEC 60068-2-6:2007-12
- Shock resistance: IEC 60068-2-29:1987
- Ambient operating temperature: -10 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 152mm x 105mm x 102mm
- Weight: 1.2 kg
Key Features
- Infrared light source with 905 nm wavelength
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Wide horizontal aperture angle of 270°
- High scanning frequency of 25 Hz
- Angular resolution selectable between 0.5° and 1°
- Working range up to 10 meters
- Robust IP65 rated enclosure for dust and water protection
- Multiple digital outputs and inputs for versatile interfacing
- 7-segment display for contamination warning and status indication
- Long mean time between failures (MTBF) greater than 100 years
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connections to ensure compliance with safety standards.
Applications
- Indoor object detection and field evaluation
- Industrial automation and safety monitoring
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 8 W reduces energy usage
- Durable design with long MTBF minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now
The SICK S10B-9011BA Indoor Infrared Laser Scanner Sensor is available for immediate purchase, ideal for industrial indoor object detection and safety applications.
