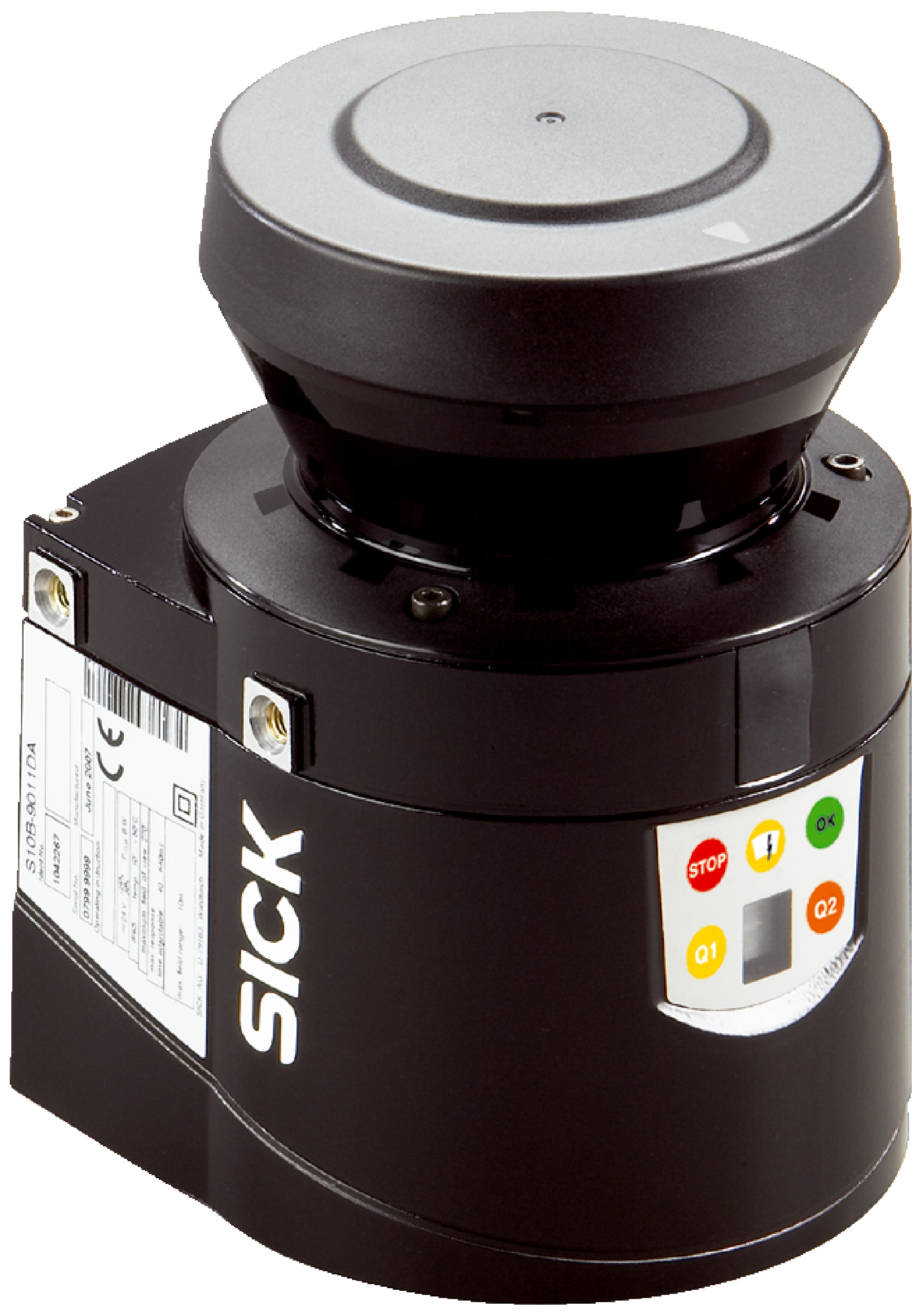

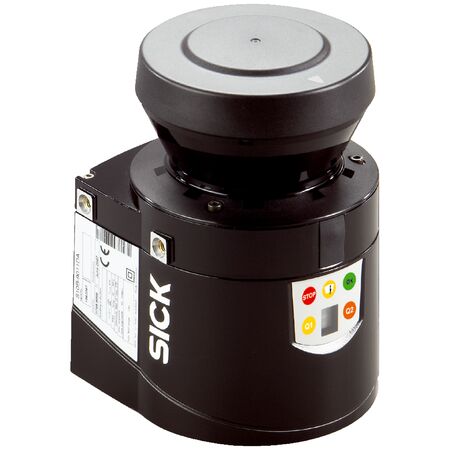

Infrared Laser Scanner S10B-9011DA | 270° Aperture Angle | 25 Hz Scanning Frequency | IP65 Rated | by SICK
The Infrared Laser Scanner S10B-9011DA is designed for precise indoor object detection and field evaluation, featuring a wide 270° aperture angle and a scanning frequency of 25 Hz. With a robust IP65 rated housing, it's perfect for industrial automation and safety monitoring, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Infrared Laser Scanner S10B-9011DA | 270° Aperture Angle | 25 Hz Scanning Frequency | IP65 Rated | by SICK
Brand: SICK
SKU: 1042267
Alternatively Known As: Infrared Laser Scanner, Indoor Laser Scanner, SICK S10B Scanner, Industrial Laser Scanner
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Horizontal angular resolution: 0.5° or 1° selectable
- Scanning frequency: 25 Hz
- Working range: 0 m to 10 m
- Scanning range at 10% remission factor: 4.5 m
- Connection type: 1 x system plug with screw terminal block (accessory)
- Supply voltage: 16.8 V DC to 30 V DC
- Power consumption: 8 W
- Output current: 250 mA
- Housing color: Black (RAL 9005)
- Enclosure rating: IP65 (EN 60529)
- Protection class: II (VDE 0106, EN50178)
- Weight: 1.2 kg without connecting cables
- MTBF: > 100 years
- Detectable object shapes: Almost any (diameter selectable from 30 mm to 150 mm)
- Number of field sets: 16 field pairs (32 fields)
- Simultaneous evaluation cases: 1 (2 fields)
- Digital inputs: 5 (4 x IN, standby)
- Digital outputs: 5 (Q1, Q2, Ǭ1, Ǭ2, diagnosis)
- Optical indicators: 7-segment display for contamination warning and initial condition
- Ambient operating temperature: –10 °C to +50 °C
- Storage temperature: –30 °C to +70 °C
- EMC: EN 61000-6-2:2005-08
- Vibration resistance: IEC 60068-2-6:2007-12
- Shock resistance: IEC 60068-2-29:1987
- Dimensions (H x L x W): 152mm x 105mm x 102mm
- Weight: 1.2 kg
Key Features
- Infrared light source (905 nm) with laser class 1 safety
- Wide horizontal aperture angle of 270° and scanning frequency of 25 Hz
- High angular resolution selectable between 0.5° and 1°
- Working range up to 10 meters with scanning range of 4.5 meters at 10% remission factor
- Robust IP65 rated black housing for industrial environments
- Multiple digital inputs and outputs with serial RS-232 and CANopen interfaces
- 7-segment display for contamination warning and initial condition indication
- Long mean time between failures (MTBF) greater than 100 years
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor object detection and field evaluation
- Industrial automation and safety monitoring
- Machine safety and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 8 W reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK S10B-9011DA Indoor Infrared Laser Scanner is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
