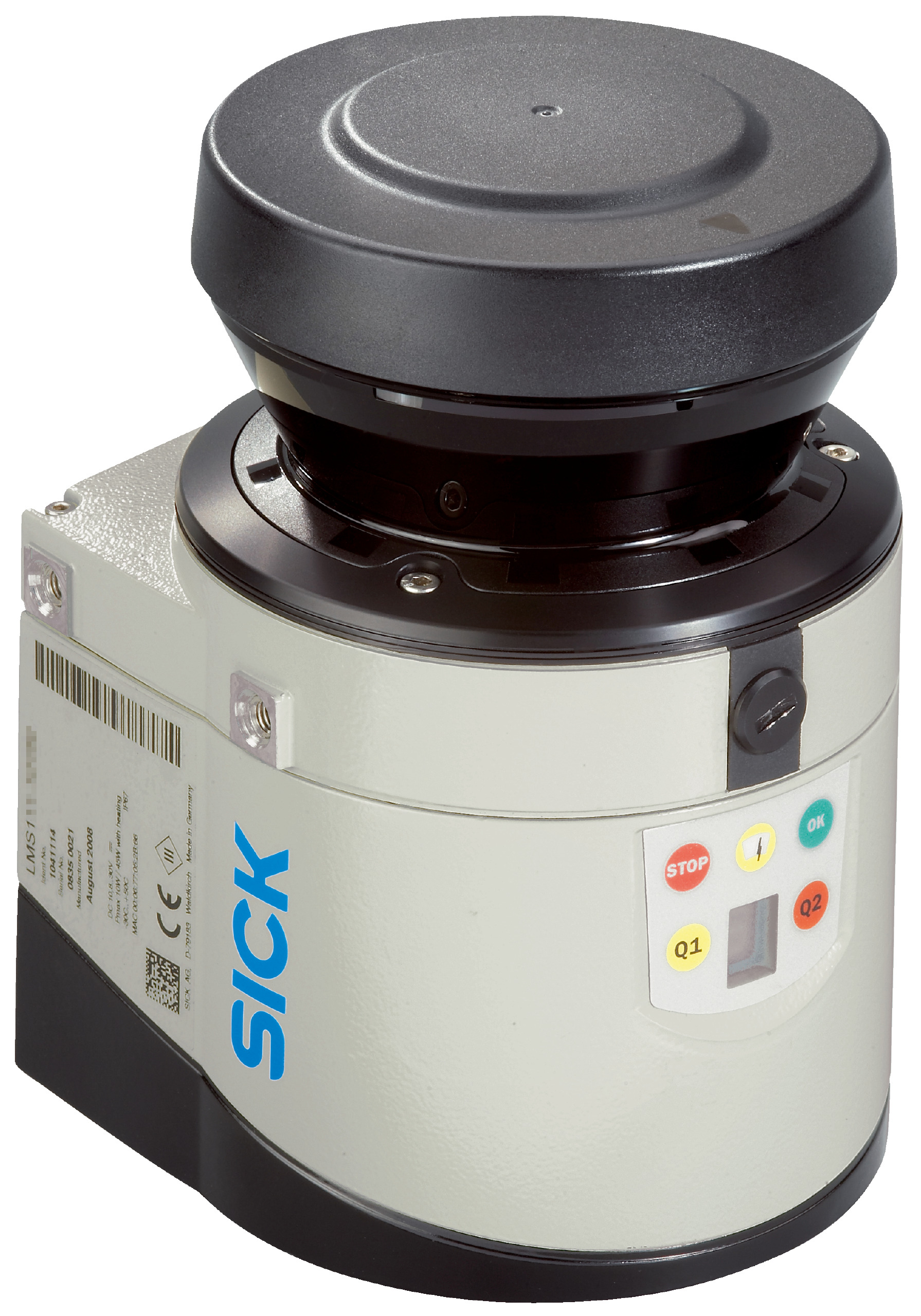

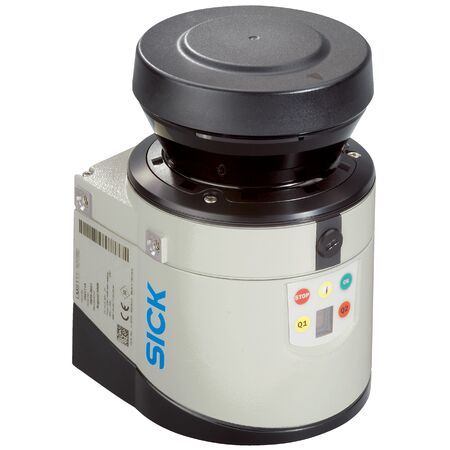

Infrared Laser Scanner SICK LMS111-10100S09 | 270° Aperture Angle | 25 Hz & 50 Hz Scanning Frequency | IP67 Rated | by SICK
The Infrared Laser Scanner SICK LMS111-10100S09 is designed for precise object detection and scanning in both indoor and outdoor environments. With a wide horizontal aperture angle of 270° and scanning frequency options of 25 Hz and 50 Hz, it ensures reliable performance in industrial automation and safety monitoring applications. Its robust IP67 rated enclosure and integrated heating make it ideal for challenging conditions, providing durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution: 0.25° and 0.5° options
- Scanning frequency: 25 Hz, 50 Hz
- Working range: 0.5 m to 20 m
- Scanning range at 10% remission factor: 18 m
- Scanning range at 90% remission factor: 20 m
- Amount of evaluated echoes: 2
- Fog correction: Yes
- Connection type: 1 x M12 round connector
- Supply voltage: 10.8 V DC to 30 V DC
- Power consumption: Typical 8 W, heating typical 35 W
- Housing color: Gray (RAL 7032)
- Enclosure rating: IP67 (EN 60529)
- Protection class: III (EN 61010-1:2010-10)
- Response time: ≥ 20 ms
- Detectable object shape: Almost any
- Systematic error: ± 30 mm
- Statistical error: 12 mm
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Data transmission rates: Ethernet 10/100 MBit/s, Serial 9.6 kBaud to 115.2 kBaud
- Digital inputs: 2 digital and 2 encoder inputs
- Digital outputs: 3
- Optical indicators: 7-segment display plus 5 LEDs
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Ambient light immunity: 80,000 lx
- EMC: EN 61000-6-2:2005 / EN 61000-6-3:2007+A1:2011
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 162mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source (905 nm) with laser class 1 safety
- Wide horizontal aperture angle of 270° with 0.25° angular resolution
- Scanning frequency options of 25 Hz and 50 Hz
- Working range from 0.5 m to 20 m with fog correction
- IP67 rated enclosure for robust outdoor and indoor use
- Integrated heating for operation in cold environments
- Multiple interfaces including Ethernet TCP/IP, RS-232 serial, and CAN
- 7-segment display with LEDs for device status and warnings
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Outdoor and indoor object detection and scanning
- Industrial automation and safety monitoring
- Robotics and navigation systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with typical 8 W operation and efficient heating system
- Durable IP67 housing reduces need for frequent replacements
- Supports precise detection reducing waste and improving operational efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LMS111-10100S09 Infrared Laser Scanner is available for immediate purchase, ideal for industrial automation, safety monitoring, and robotics applications.
