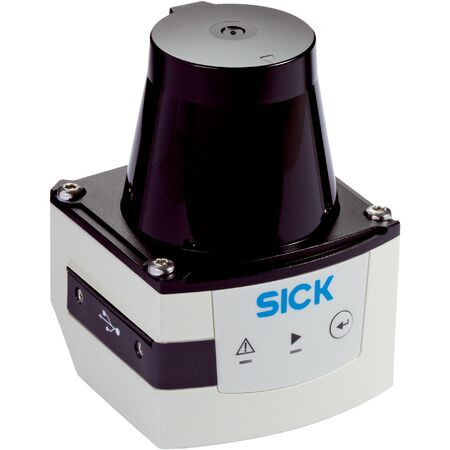

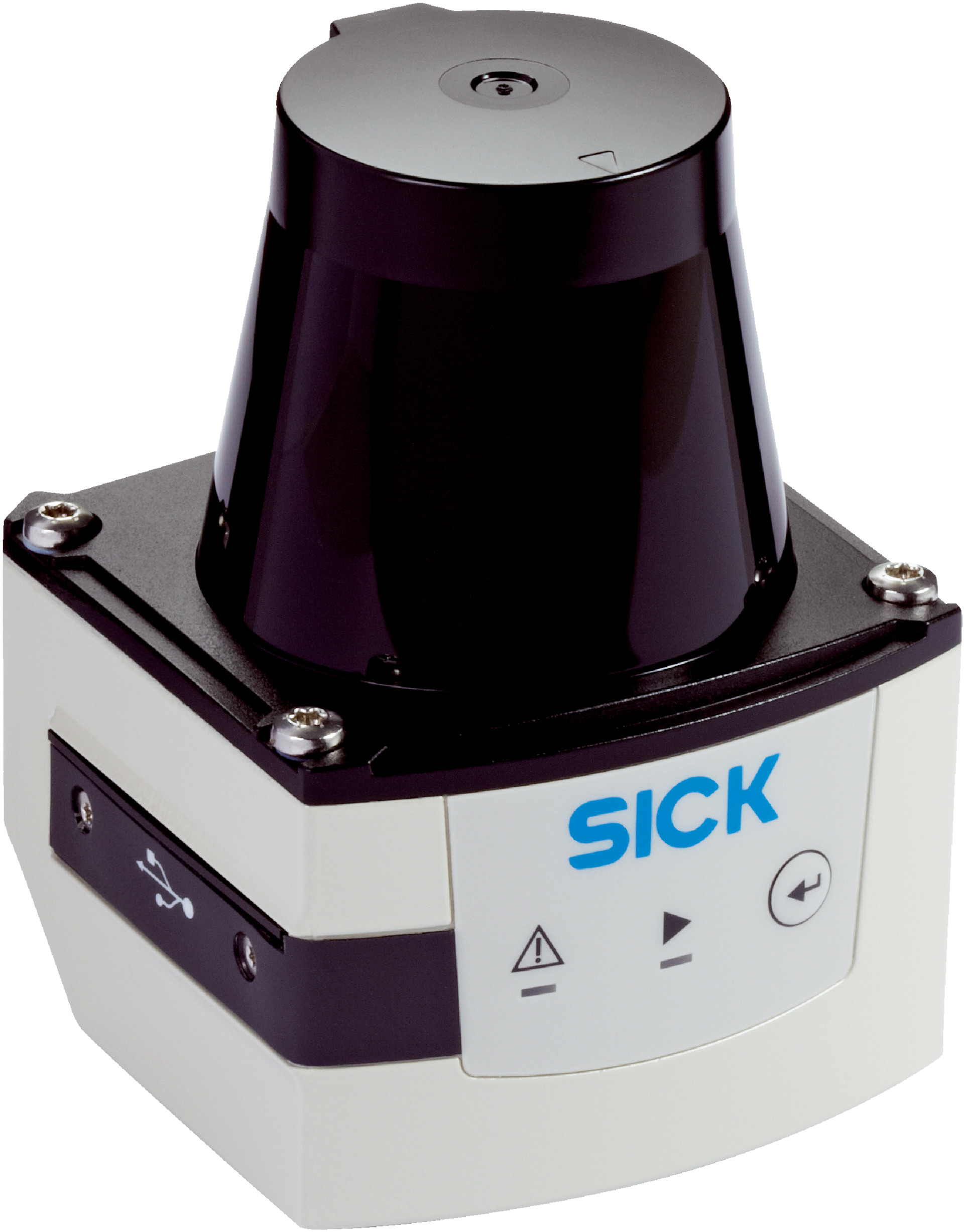

Infrared Laser Scanner TiM561-2050101 | HDDM+ Measurement | IP67 Rated | 270° Aperture Angle | by SICK
The Infrared Laser Scanner TiM561-2050101 features advanced HDDM+ measurement technology and an IP67 rated enclosure, making it perfect for both indoor and outdoor scanning applications. With a 270° aperture angle and a working range of 0.05 m to 10 m, this scanner is designed for industrial automation and safety systems, ensuring precise object detection and measurement in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 270° horizontal
- Angular resolution: 0.33° horizontal
- Scanning frequency: 15 Hz
- Working range: 0.05 m to 10 m
- Scanning range at 10% remission factor: 8 m
- Connection types: 1 x Ethernet (4-pin M12 female), 1 x Power/Synchronization output (5-pin M12 male), 1 x Micro USB type B
- Supply voltage: 9 V DC to 28 V DC
- Power consumption: typically 4 W
- Output current: ≤ 100 mA
- Enclosure rating: IP67 (with Aux interface cover closed)
- Protection class: III (IEC 61140:2016-1)
- Weight: 250 g without cables
- Response time: 1 scan typically 67 ms
- Systematic error: ± 60 mm
- Statistical error: < 20 mm
- Object remission: 4% to 1000% (reflectors)
- Electromagnetic compatibility: Residential and industrial standards
- Shock resistance: up to 50 g
- Operating temperature: -25°C to +50°C
- Storage temperature: -40°C to +75°C
- Relative humidity: Operation < 80%, Storage ≤ 95%, non-condensing
- Dimensions (H x L x W): 86mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Measurement principle: HDDM+
- Infrared light source (850 nm)
- Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- 270° horizontal aperture angle
- 0.33° angular resolution
- Scanning frequency of 15 Hz
- Working range from 0.05 m to 10 m
- Scanning range of 8 m at 10% remission factor
- IP67 rated enclosure for protection
- Supply voltage from 9 V DC to 28 V DC
- Power consumption typically 4 W
- Multiple connection types including Ethernet, Micro USB, and power/synchronization output
- Shock and vibration resistant
- Operating temperature range from -25°C to +50°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Outdoor and indoor environment scanning
- Object detection and measurement
- Industrial automation and safety systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of approximately 4 W reduces energy usage.
- Durable IP67 rated housing extends product life and reduces waste.
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK TiM561-2050101 infrared laser scanner is available for immediate purchase, ideal for industrial automation, safety, and measurement applications.
