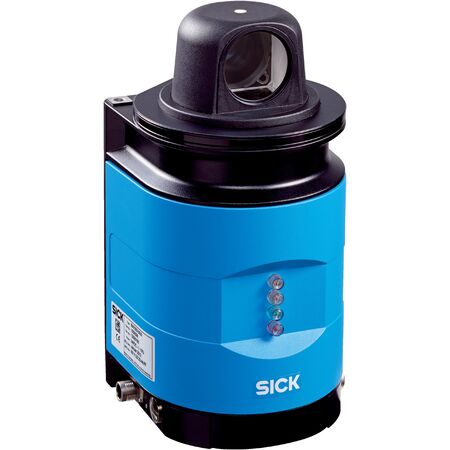

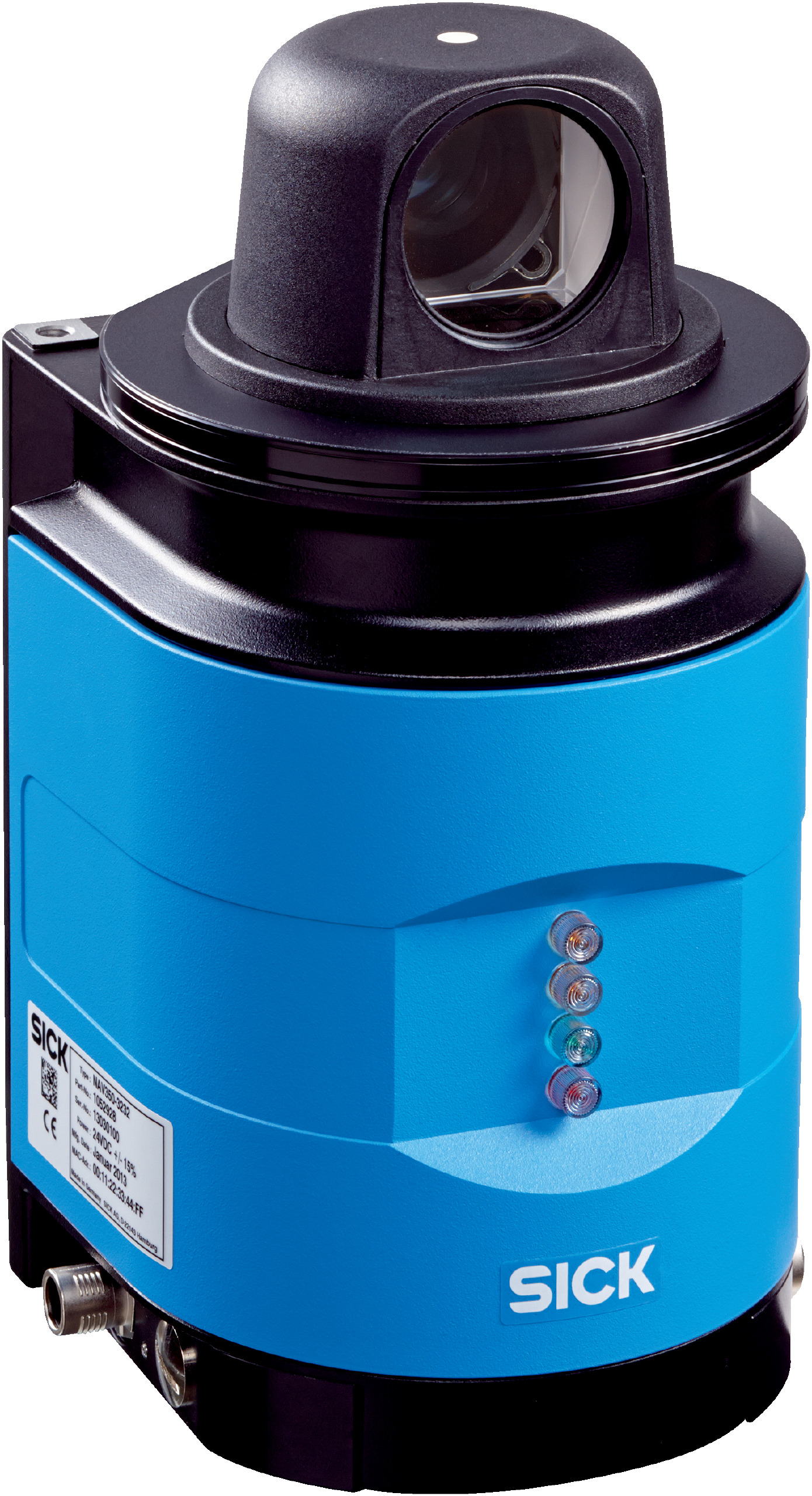

Infrared Laser Sensor LD-OEM1501 | 905 nm Wavelength | IP65 Rated | 360° Horizontal Aperture | by SICK
The Infrared Laser Sensor LD-OEM1501 is designed for precise distance measurement and object detection in indoor environments. With a 905 nm wavelength and a robust IP65-rated aluminum housing, it ensures durability and reliability. Ideal for industrial automation applications, this sensor features adjustable scanning frequencies and a working range of up to 250 m, making it perfect for various measurement tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 222mm x 115mm x 120mm
- Weight: 2.4 kg
Key Features
- Infrared light source with 905 nm wavelength
- Laser class 1 compliant with IEC 60825-1:2014 standards
- 360° horizontal aperture angle with 0.125° angular resolution
- Scanning frequency adjustable between 5 Hz and 20 Hz
- Working range from 0.5 m up to 250 m
- Scanning range of 55 m at 10% remission factor and 180 m at 90% remission factor
- Robust aluminum die cast housing with IP65 enclosure rating
- Multiple interfaces including Ethernet (TCP/IP) and RS-232 serial communication
- Low power consumption of 36 W
- Operating temperature range from 0 °C to +50 °C
- High mean time between failures (MTBF) of 86 years
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper setup and compliance with safety standards.
Applications
- Indoor use for precise distance measurement and object detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces waste and replacement frequency
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LD-OEM1501 Infrared Laser Sensor is available for immediate purchase, ideal for indoor industrial and automation applications requiring precise distance measurement.
