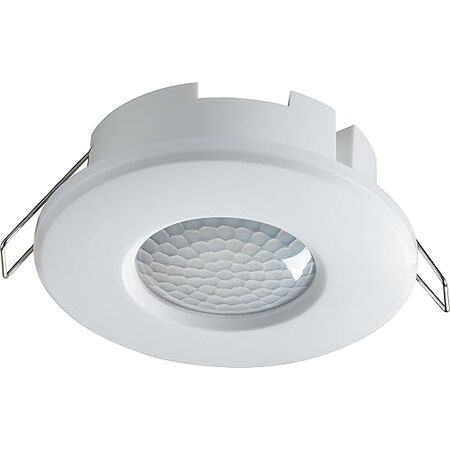

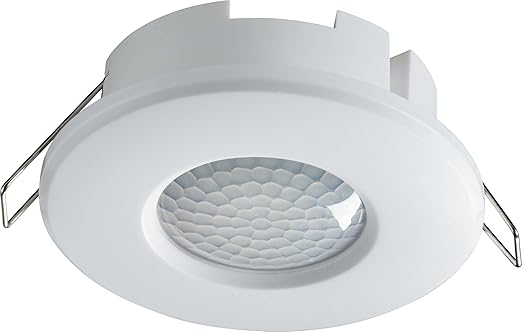

Infrared Motion Detector 360° | Adjustable Light Sensor | Time-Delay Function | by Lawell Lighting
<p>The Infrared Motion Detector 360° is designed for efficient indoor lighting control, featuring a comprehensive 360° detection range and an adjustable ambient light sensor. Perfect for residential and commercial spaces, it automatically activates lighting in hallways and rooms, helping to save energy and reduce your carbon footprint. With a time-delay function adjustable from 10 seconds to 7 minutes, this sensor ensures optimal performance while consuming less than 0.9W.</p>
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Infrared Motion Detector 360° | Adjustable Light Sensor | Time-Delay Function | by Lawell Lighting
Brand: Lawell Lighting
SKU: TLEYS01
Alternatively Known As: Infrared Motion Sensor, 360 Degree Motion Detector, Automatic Light Sensor, Eye Sensor Motion Detector
Technical Specifications
- Power Source: 220–240V AC
- Power Frequency: 50 Hz
- Detection Range: 360°
- Working Temperature: –20°C to +40°C
- Ambient Light Sensitivity: Adjustable from <10 to 2000 LUX
- Time-Delay Settings: Minimum 10 sec ± 3 sec, Maximum 7 min ± 2 min
- Rated Load: 800W (incandescent), 400W (energy-saving lamp), 300W (LED)
- Detection Distance: Up to 6 meters at 24°C
- Working Humidity: Less than 93% RH
- Installation Height: 2.2 to 4 meters
- Power Consumption: Less than 0.9W during operation and standby
- Dimensions (H x L x W): 28mm x 75mm x 93mm
- Weight: 0.15 kg
Key Features
- 360° detection range for comprehensive motion sensing
- Adjustable ambient light sensor to operate during day or night
- Time-delay function with adjustable settings from 10 seconds to 7 minutes
- Supports maximum load of 800W for incandescent lamps and 400W for energy-saving lamps
- Low power consumption under 0.9W during operation and standby
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and optimal sensor performance.
Applications
- Indoor lighting control for residential and commercial spaces
- Automatic lighting activation in hallways, corridors, and rooms
- Energy-saving lighting solutions for offices and retail environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting based on occupancy
- Helps lower carbon footprint through efficient lighting management
Warranty Information
Standard manufacturer warranty applies. Please refer to Lawell Lighting for specific warranty details.
Available Now
The Lawell Lighting 2 IN 1 Design 360 Sensor Infrared Motion Detector is available for immediate purchase, ideal for energy-efficient lighting control in residential and commercial applications.
