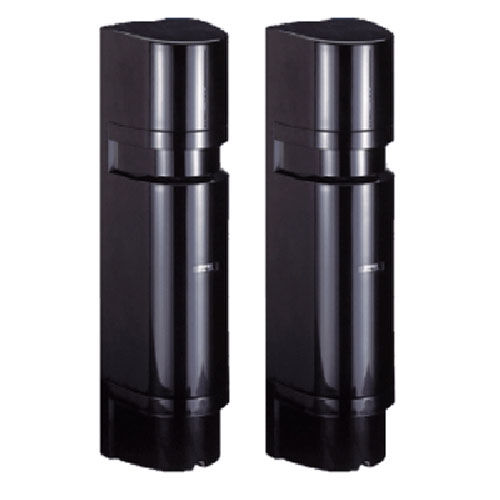

Infrared Photobeam 100m Synchro-Quad Anti-Fog Takex Ness
Ness infrared photobeam features a 100m range, Synchro-Quad detection and anti-fog circuitry. Ideal for outdoor perimeter alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Takex PB-IN-100HFA, Takex Intelligent Quad Beam, 100m Outdoor Infrared Beam Sensor, Ness Takex Photobeam
Technical Specifications
- Model: PB-IN-100HFA
- Detection System: Near-infrared beam interruption with four simultaneous beams
- Protection Distance: Up to 100m outdoors
- Maximum Arrival Distance: 1,000m
- Power Supply: 12–30V DC, non-polarity
- Current Consumption: 70mA typical; 105mA maximum
- Alarm Output: Selectable N.C. or N.O. dry-contact relay, 30V AC/DC, 1A maximum
- Environmental Output: Selectable N.C. or N.O. dry-contact relay, 30V AC/DC, 1A maximum
- Tamper Output: N.C. dry-contact relay, 30V AC/DC, 0.1A maximum
- Response Time: 50–700ms adjustable; 50ms standard
- Beam Adjustment: Horizontal ±90°, vertical ±10°
- Operating Temperature: -35°C to +66°C
- Ingress Protection: IP55 for outdoor mounting
- Housing Material: Polycarbonate/resin
- Product Configuration: Transmitter and receiver pair
- Environmental Compliance: RoHS compliant
- Dimensions (H x L x W): 390mm x 47mm x 98mm
- Weight: 2.5 kg
Key Features
- Four synchronised high-power infrared beams with AND-gated detection
- Selectable beam frequencies help prevent cross-talk between multiple units
- Programmed automatic gain control increases sensitivity during fog, rain, frost and snow
- Environmental monitoring output indicates reduced beam reception in poor weather
- Frost and dew protection hood helps maintain detection when the cover is affected by condensation
- Auto-gain lock automatically sets sensitivity for the installed coverage distance
- External light compensation provides resistance to sunlight, vehicle headlights and artificial lighting
- Audible alignment tone, sensitivity attenuation LED and monitor jack support commissioning
- Selectable alarm memory and beam transmission strength
- Suitable for long-range outdoor perimeter security applications
Professional Installation Requirements
- Installation, alignment and commissioning should be performed by a suitably qualified security installer. Provide a regulated 12–30V DC supply, correctly terminate the alarm, environmental and tamper outputs, and install in accordance with the alarm system manufacturer’s instructions and AS/NZS 2201.1 requirements for intruder alarm systems. Standards applicability and system compliance must be verified for the complete installation.
Applications
- Outdoor perimeter alarm systems
- Commercial and industrial site boundaries
- Warehouses, factories and logistics facilities
- Gates, driveways and access approaches
- Long-range security zones requiring weather-resistant beam detection
Standards & Compliance
- AS/NZS 2201.1:2007 — relevant to the design, installation, commissioning and maintenance of intruder alarm systems; compliance applies to the completed installation and should be verified by the installer.
Environmental Benefits
- RoHS compliant and manufactured without lead, mercury, cadmium, hexavalent chromium, PBB or PBDE substances
- Polycarbonate housing and weather-resistant construction support extended service life and reduced replacement waste
- Automatic gain and environmental monitoring help maintain reliable detection in adverse weather, reducing nuisance alarms and unnecessary service call-outs
Warranty Information
Ness Corporation’s general warranty provides 3 years from the date of purchase for Ness manufactured or supplied products, subject to the published warranty terms. ([ness.com.au](https://ness.com.au/product-warranty?utm_source=openai))
Available Now
Available through Ness and authorised Australian security distributors, subject to current distributor stock.
