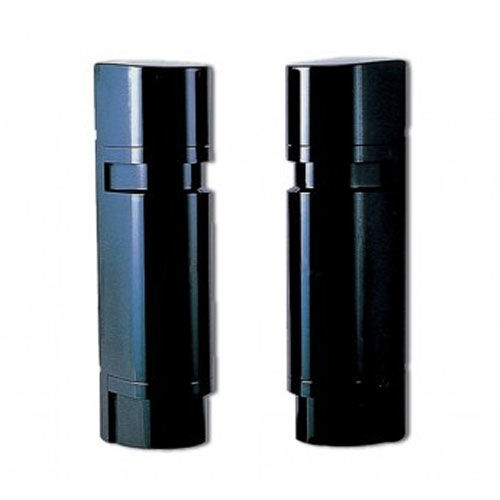

Infrared Photobeam Sensor 200m Synchro-Quad -20 to +60 Degree C Ness

BRAND: Ness
SKU: 106-213
$1,409.40 List price: $1,879.20
+ −
30 Days Return Electricians Unlock Trade Access
Ness infrared photobeam sensor features a 200m range, Synchro-Quad detection and anti-fog circuitry. Ideal for outdoor perimeter alarm systems.

Alternatively Known As: Ness 200 m Infrared Photobeam, Takex Intelligent Synchro-Quad Beam, Outdoor Quad Photoelectric Beam, PB-IN200HF

Technical Specifications
  • Model: PB-IN200HFA
  • Detection Type: Active infrared photoelectric beam interruption
  • Outdoor Protection Distance: Up to 200 m
  • Indoor Protection Distance: Up to 400 m
  • Beam Configuration: Four synchronised high-power beams, 16 beam paths
  • Infrared Source: Pulsed LED with double modulation
  • Maximum Arrival Distance: Approximately 2,000 m
  • Supply Voltage: 12–30 V DC, non-polarity
  • Current Consumption: Up to 85 mA operating; up to 120 mA during adjustment
  • Response Time: Adjustable from 0.05 to 0.7 seconds
  • Alarm Output: Selectable N/O or N/C dry-contact relay, 30 V AC/DC, 1 A maximum
  • Environmental Output: Selectable N/O or N/C dry-contact relay, 30 V AC/DC, 0.5 A maximum
  • Tamper Output: N/C dry contact, 30 V AC/DC, 0.1 A maximum
  • Beam Adjustment: ±90° horizontal and ±10° vertical
  • Operating Temperature: -35°C to +66°C
  • Environmental Protection: IP55
  • Light Immunity: Up to 50,000 lux
  • Housing Material: PC resin
  • Mounting: Indoor or outdoor; pole mounting supported
  • Dimensions (H x L x W): 390mm x 104mm x 98mm
  • Weight: 2.5 kg
Key Features
  • 200 m outdoor detection range and 400 m indoor range
  • Synchronised quad-beam operation helps reduce false alarms from leaves and small animals
  • Environmental monitoring and anti-fog circuitry for adverse weather conditions
  • Automatic gain control and auto-gain lock maintain beam sensitivity
  • Four selectable transmission frequencies help prevent cross-talk in multiple-beam installations
  • Double modulation and external-light compensation improve immunity to sunlight and vehicle headlights
  • Audible alignment tone, monitor jack and sensitivity attenuation LED assist commissioning
  • Selectable alarm relay output and separate environmental fault output
  • Alarm memory indication on the receiver
  • Wide internal optical adjustment for flexible aiming
Professional Installation Requirements
  • Installation, optical alignment and commissioning should be performed by a competent security installer. The beam pair requires a 12–30 V DC supply and connection to an alarm control system; any mains-voltage power supply installation must be completed by a suitably licensed electrician.
Applications
  • Outdoor perimeter intrusion detection
  • Industrial and commercial site boundaries
  • Warehouses, depots and logistics facilities
  • Gated compounds and long driveways
  • Fence lines and high-security perimeter systems
  • Beam tower installations
Standards & Compliance
  • AS/NZS 2201.1:2007 – relevant to the design, installation, commissioning and maintenance of intruder alarm systems; product-specific AS/NZS compliance is not stated.
Environmental Benefits
  • Long-life outdoor construction can reduce replacement frequency and associated waste
  • Automatic gain control and environmental monitoring help maintain reliable operation in changing weather, reducing nuisance alarm events and unnecessary service visits
  • Operates from a low-voltage DC supply and uses no consumable materials during normal operation
Warranty Information

Ness Corporation's general warranty for Ness-manufactured or supplied products is 3 years from the date of purchase, unless otherwise specified. Warranty claims are subject to Ness terms and conditions.

Available Now

Available through Ness Corporation and authorised Australian security-equipment distributors; confirm current stock and lead time before ordering.
