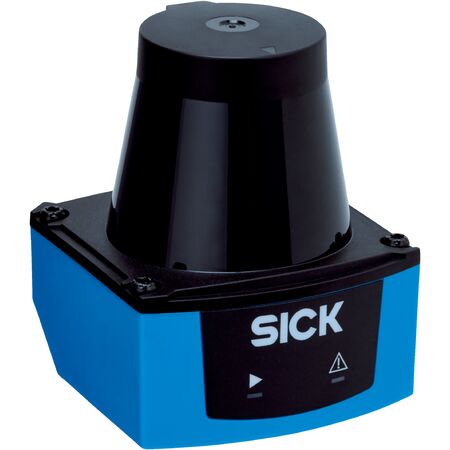

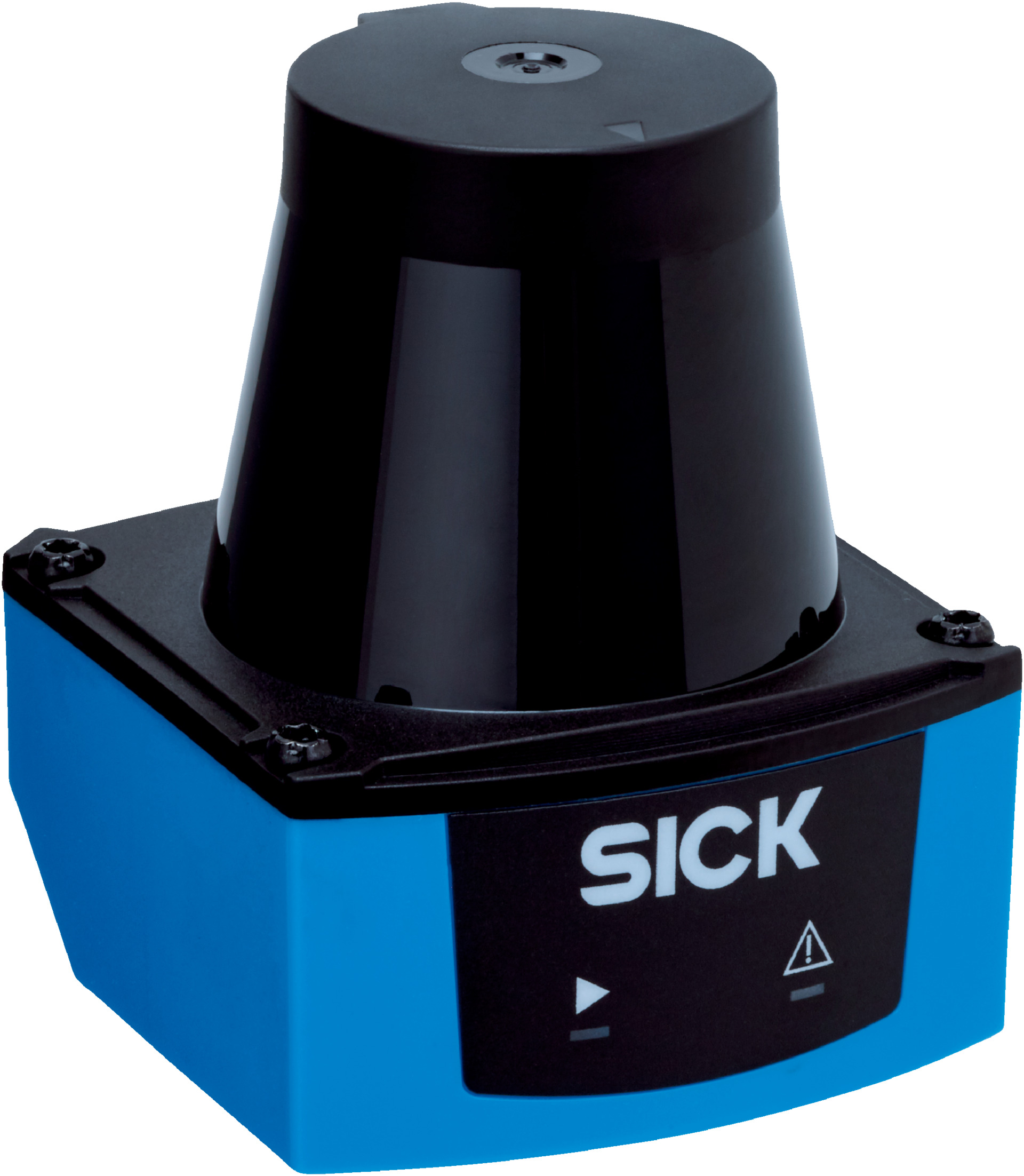

Infrared Proximity Sensor TIM100-3010200 | HDDM+ Measurement | IP65 Rated | 200° Aperture Angle | by SICK
The Infrared Proximity Sensor TIM100-3010200 features advanced HDDM+ measurement technology and a wide 200° aperture angle, making it ideal for indoor object detection and industrial automation. With an IP65 rating for dust and water protection, this sensor operates efficiently within a working range of 0.05 m to 3 m, ensuring reliable performance in various applications. Its low power consumption and robust design make it a perfect choice for safety systems and field evaluations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 200° horizontal, 1° angular resolution
- Scanning frequency: 14.5 Hz
- Working range: 0.05 m to 3 m
- Scanning range at 10% remission factor: 1.2 m to 1.5 m depending on angle
- Connection type: 1 x 5-pin M12 male device connector (rotatable)
- Supply voltage: 9 V DC to 28 V DC
- Power consumption: Typically 2.2 W
- Output current: ≤ 100 mA
- Enclosure rating: IP65
- Protection class: III (IEC 61140:2016-1)
- Response time: Typically 70 ms
- Digital inputs/outputs: 1 input, 2 push-pull outputs
- Delay and dwell time configurable from 69 ms to 30,015 ms
- Optical indicators: 2 LEDs (ON, switching status)
- Ambient operating temperature: -10 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Permissible relative humidity: ≤ 95%, non-condensing
- Electromagnetic compatibility: IEC 61000-6-3:2006+AMD1:2010 / IEC 61000-6-2:2005
- Vibration resistance: 10 Hz to 500 Hz, 5 g
- Dimensions (H x L x W): 75.8mm x 60mm x 60mm
- Weight: 0.1 kg
Key Features
- Measurement principle: HDDM+ with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Wide aperture angle of 200° horizontal and 1° angular resolution
- Scanning frequency of 14.5 Hz with working range from 0.05 m to 3 m
- IP65 rated enclosure for dust and water protection
- Low power consumption at typically 2.2 W
- Equipped with IO-Link for service interface and parameterization
- Digital inputs/outputs: 1 input and 2 push-pull outputs
- Robust vibration resistance and ambient light immunity up to 80,000 lx
- Light blue housing (RAL 5012) with compact dimensions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Indoor object detection and measurement
- Industrial automation and safety systems
- Field evaluation applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK TIM100-3010200 sensor is available for immediate purchase, ideal for indoor industrial automation and object detection applications.
