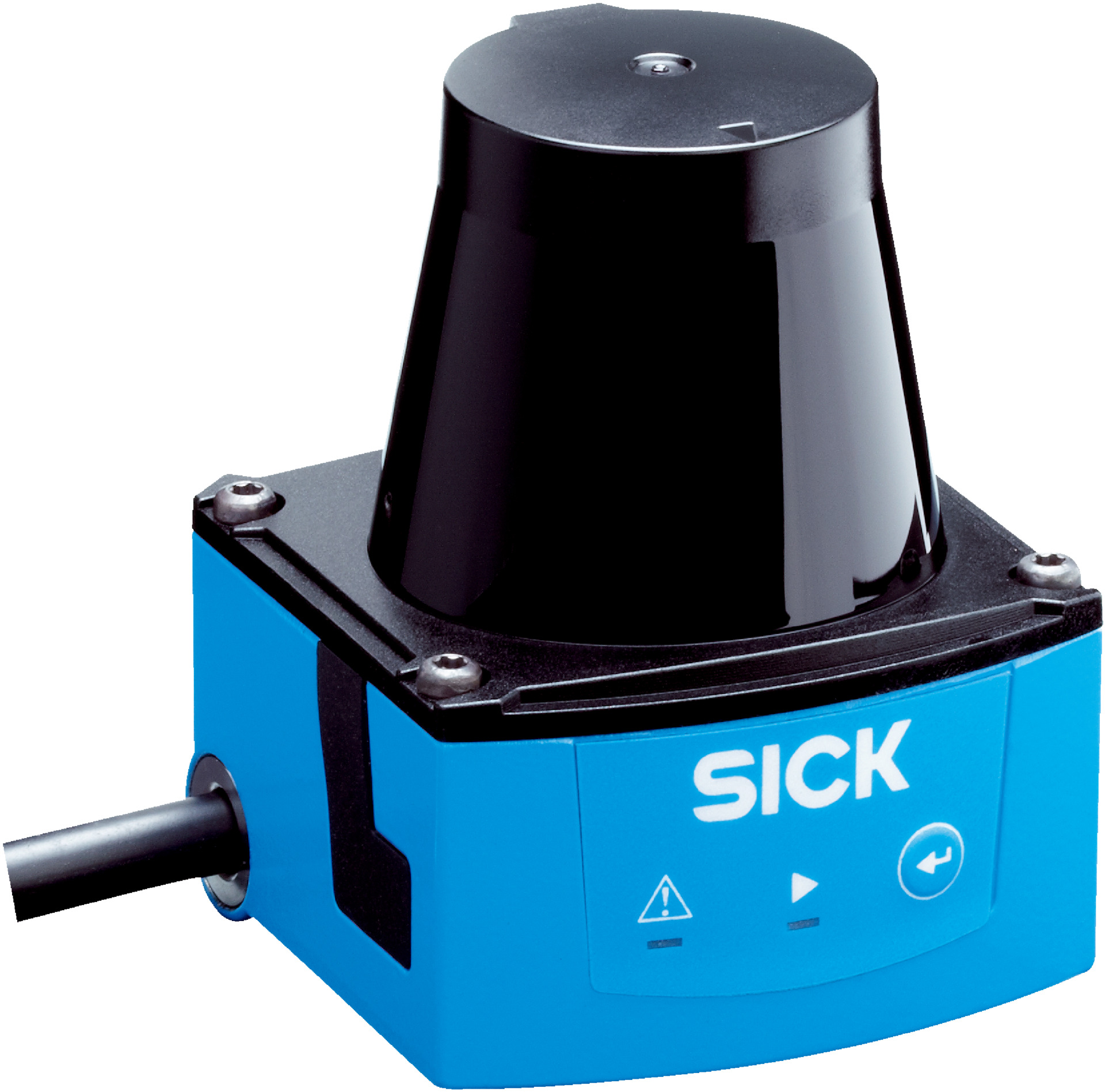

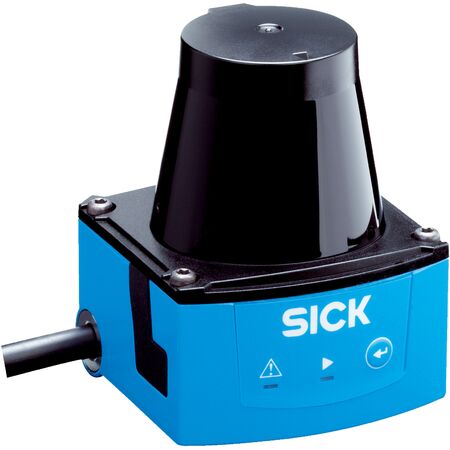

Infrared Proximity Sensor TIM310-1030000S02 | HDDM+ Measurement | IP65 Rated | 270° Aperture Angle | by SICK
The TIM310-1030000S02 infrared proximity sensor is designed for precise indoor object detection and measurement, featuring HDDM+ technology and a wide 270° aperture angle. With an IP65 rated enclosure, it ensures durability in industrial environments, making it ideal for automation and safety systems. Its low power consumption and robust design enhance efficiency and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution horizontal: 1°
- Scanning frequency: 15 Hz
- Working range: 0.05 m to 4 m
- Scanning range at 10% remission factor: 2 m
- Connection type: 1 x 15-pin D-sub HD male connector (0.9 m cable)
- Supply voltage: 9 V DC to 28 V DC
- Power consumption: Typical 4 W, 16 W with 4 max loaded digital outputs
- Output current: ≤ 100 mA
- Housing color: Light blue (RAL 5012)
- Enclosure rating: IP65 (IEC 60529)
- Protection class: III (IEC 61140)
- Response time: 1 scan typ. 67 ms, 2 scans ≤ 134 ms
- Digital inputs: 4
- Digital outputs: 3 (NPN) plus 1 device ready output
- Delay time configurable: 67 ms to 30,000 ms
- Dwell time configurable: 67 ms to 600,052 ms
- Optical indicators: 2 LEDs (ON, switching status)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 10 Hz to 1,000 Hz sine resonance scan
- Shock resistance: 50 g, 11 ms single shocks
- Dimensions (H x L x W): 79mm x 60mm x 60mm
- Weight: 0.15 kg
Key Features
- Measurement principle: HDDM+ with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Wide horizontal aperture angle of 270° with 1° angular resolution
- Scanning frequency of 15 Hz with working range from 0.05 m to 4 m
- Robust IP65 rated enclosure for protection against dust and water
- Low power consumption typically 4 W, up to 16 W with loaded outputs
- Multiple digital inputs and outputs with configurable delay and dwell times
- Micro USB interface for service and parameterization
- High vibration and shock resistance suitable for industrial environments
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and configuration.
Applications
- Indoor object detection and measurement
- Industrial automation and safety systems
- Field evaluation applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK TIM310-1030000S02 sensor is available for immediate purchase, ideal for indoor industrial automation and safety system applications.
