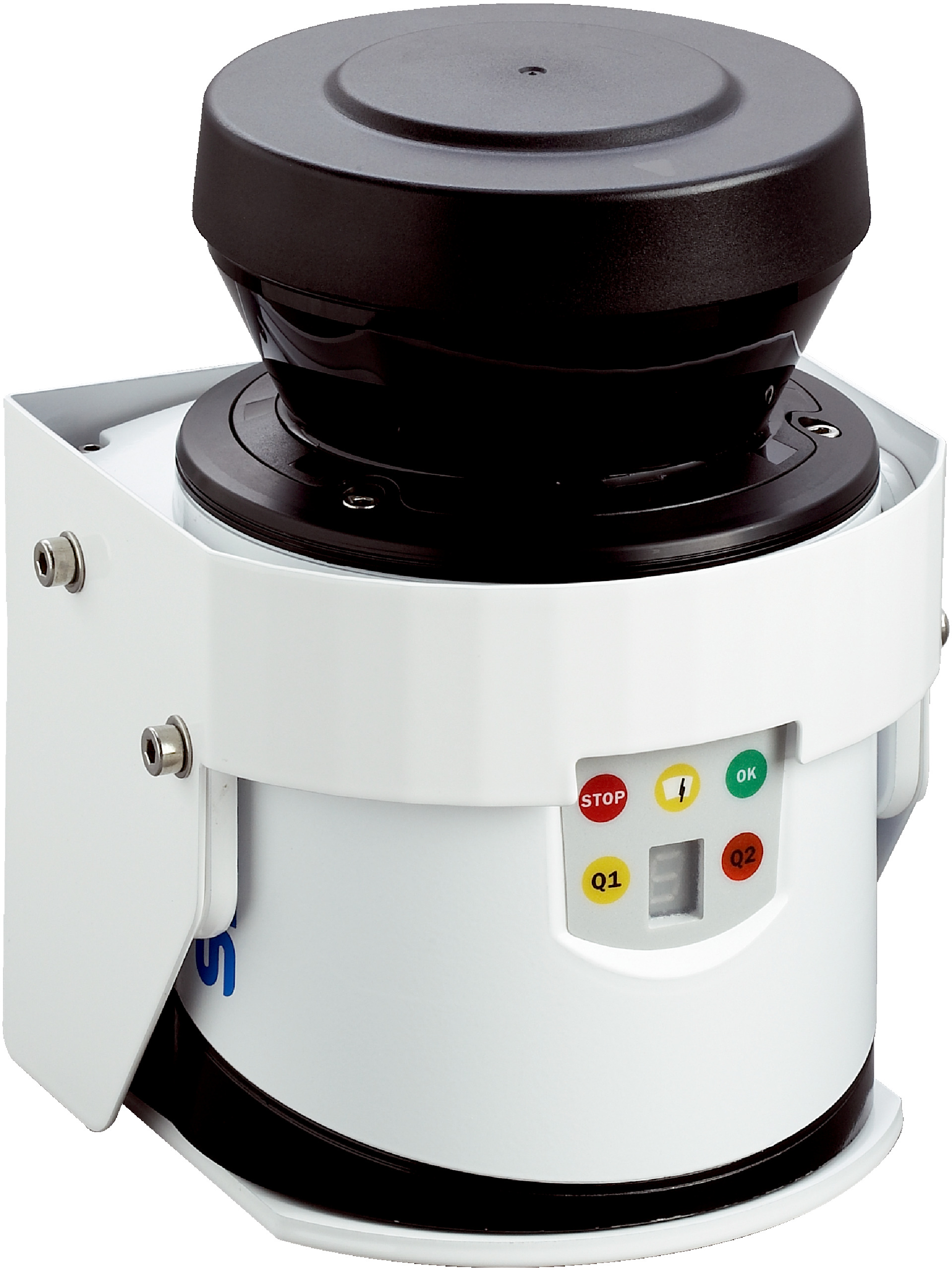

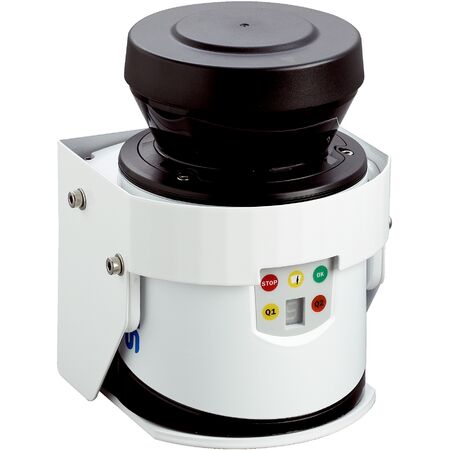

Infrared Security Sensor LMC131-11101 VdS | IP67 Rated | 270° Aperture Angle | Dual Echo Evaluation | by SICK
The Infrared Security Sensor LMC131-11101 VdS is designed for robust security applications, featuring a wide 270° horizontal aperture angle and dual echo evaluation for precise detection. With an IP67 rated enclosure, it ensures reliable operation in both indoor and outdoor environments, making it ideal for intrusion detection and perimeter protection. Its low power consumption and high reliability with an MTBF of over 100 years further enhance its appeal for industrial safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Infrared Security Sensor LMC131-11101 VdS | IP67 Rated | 270° Aperture Angle | Dual Echo Evaluation | by SICK
Brand: SICK
SKU: 1051487
Alternatively Known As: Infrared Security Sensor, VdS Certified Laser Scanner, Outdoor Security Laser Sensor
Technical Specifications
- Connection type: 1 x M12 round connector
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: Typical 8 W, 20 W, heating typical 35 W
- Housing color: Gray (RAL 7032)
- Protection class: III (EN 50178)
- Mean time between failures (MTBF): > 100 years
- Response time: ≥ 20 ms
- Systematic error: ± 30 mm
- Statistical error: 12 mm
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Object remission range: 2% to > 1000% (reflectors)
- Electromagnetic compatibility: EN 61000-6-2:2005 / EN 61000-6-4 (2007-01)
- Vibration resistance: EN 60068-2-6 (1995-04)
- Shock resistance: EN 60068-2-27 (1993-03)
- Storage temperature: -30 °C to +70 °C
- Ambient light immunity: 40,000 lx
- Dimensions (H x L x W): 152mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source with 905 nm wavelength
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Wide horizontal aperture angle of 270° with 0.25° angular resolution
- Scanning frequency of 50 Hz for rapid detection
- Heating function for reliable operation in cold environments
- Working range from 0.5 m up to 20 m, with scanning range up to 18 m at 10% remission factor
- Dual echo evaluation capability
- Robust IP67 rated enclosure for protection against dust and water
- Multiple interface options including Ethernet TCP/IP, RS-232 serial, and CAN
- Digital inputs and outputs with relay and digital output options
- Integrated 7-segment display and LED indicators for device status and warnings
- Wide ambient operating temperature range from -30 °C to +50 °C
- High electromagnetic compatibility and vibration/shock resistance
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure compliance with safety and operational standards.
Applications
- Security systems for outdoor and indoor environments
- Intrusion detection and perimeter protection
- Industrial safety monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP67 housing extends product lifespan reducing waste
- High reliability with MTBF over 100 years minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LMC131-11101 VdS Infrared Security Sensor is available for immediate purchase, ideal for security and safety applications in both indoor and outdoor environments.
