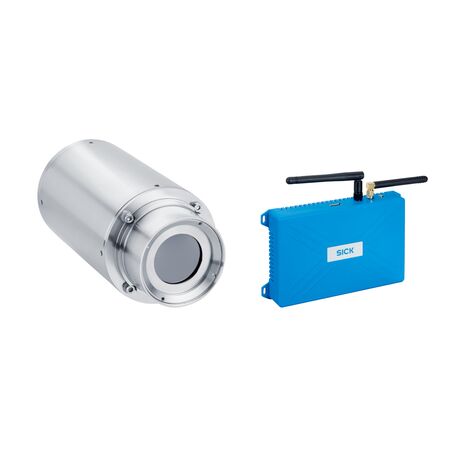

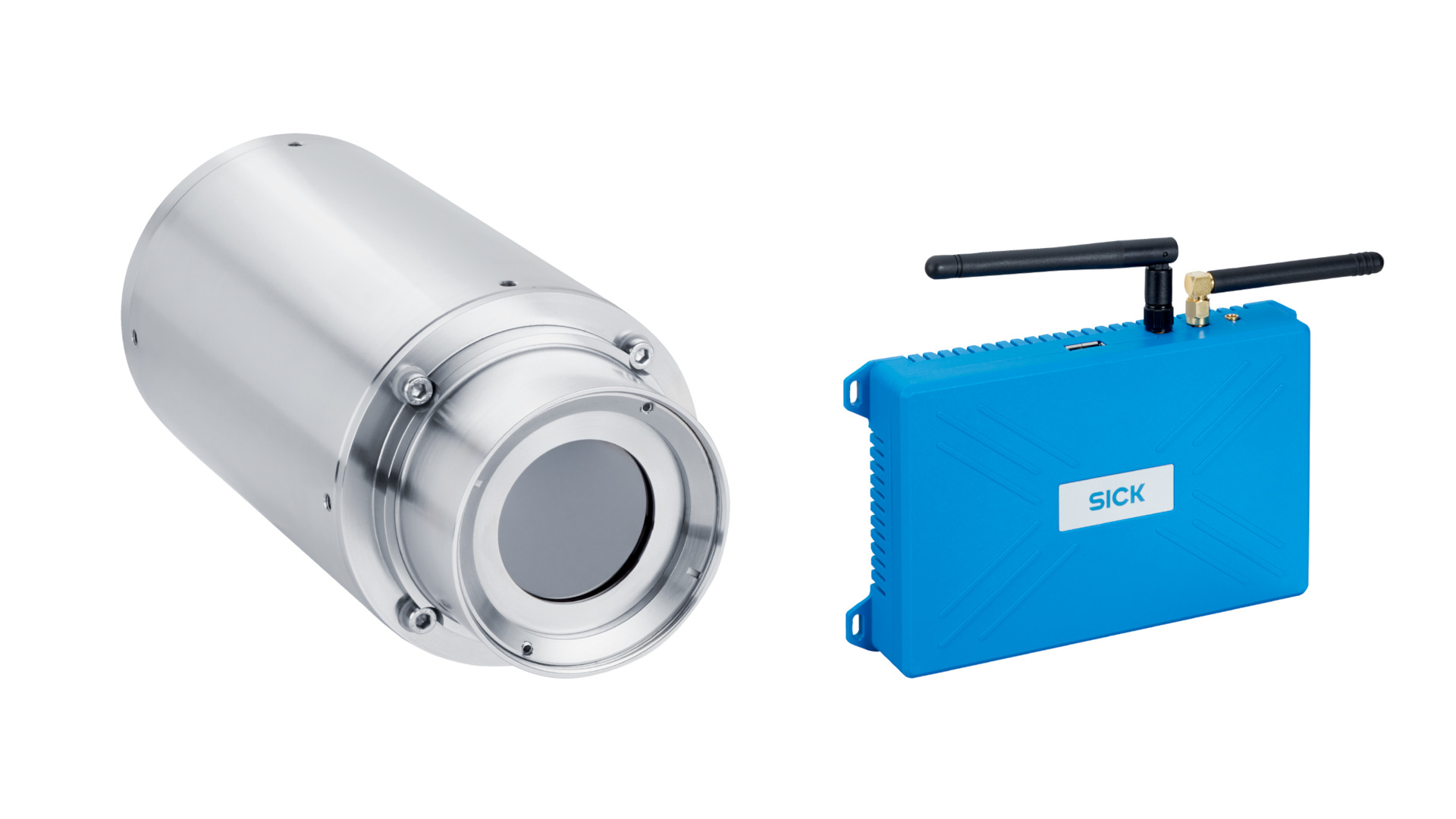

Infrared Temperature Camera CHD160TG | 128 px x 1 px Resolution | IP65 Rated | by SICK
The Infrared Temperature Camera CHD160TG is designed for precise industrial temperature monitoring, featuring a 128 px x 1 px image resolution and a measuring frequency of up to 256 Hz. With an adjustable alarm threshold from 0 °C to +500 °C and an IP65 enclosure rating, this camera is perfect for applications in loading and unloading processes, conveyor belts, and predictive maintenance in various industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Image resolution: 128 px x 1 px
- Measuring frequency: ≤ 256 Hz
- Sensor type: Infrared camera, 8 μm to 14 μm wavelength
- Aperture angle: 60°
- Temperature measuring range: 0 °C to +500 °C
- Alarm threshold: Adjustable from 0 °C to +500 °C
- Controller: TDC-E210GC
- Supply voltage: 24 V DC (12 V DC to 36 V DC)
- Enclosure rating: IP65
- Installation height: ≥ 50 cm
- Ambient operating temperature: –10 °C to +50 °C
- Output data: Alarms, alarm data, temperature data, system status, thermal images
- Operator interface: TEMS Info Interface (TCP/IP), digital I/Os
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Infrared camera with 8 μm to 14 μm wavelength sensitivity
- Image resolution of 128 px x 1 px
- Measuring frequency up to 256 Hz
- Adjustable alarm threshold from 0 °C to +500 °C
- Controller model TDC-E210GC included
- Enclosure rating IP65 for dust and water protection
- Supply voltage 24 V DC (range 12 V DC to 36 V DC)
- Variable installation position with minimum installation height of 50 cm
- Operator interface with TEMS Info Interface (TCP/IP) and digital I/Os
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct setup and compliance with safety standards.
Applications
- Loading and unloading of cargo ships
- Loading and unloading of rail freight transport
- Transport between processing stages
- Infeed for ovens and mills
- Conveyor belts in production facilities, mines and power plants
- Conveyor belts in sorting and recycling systems
- Silo inlets and outlets
- Briquetting and pelletizing plants
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables efficient monitoring to prevent overheating and reduce energy waste
- Supports predictive maintenance to extend equipment life and reduce resource consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK CHD160TG Infrared Camera is available for immediate purchase, ideal for industrial temperature monitoring and safety applications.
