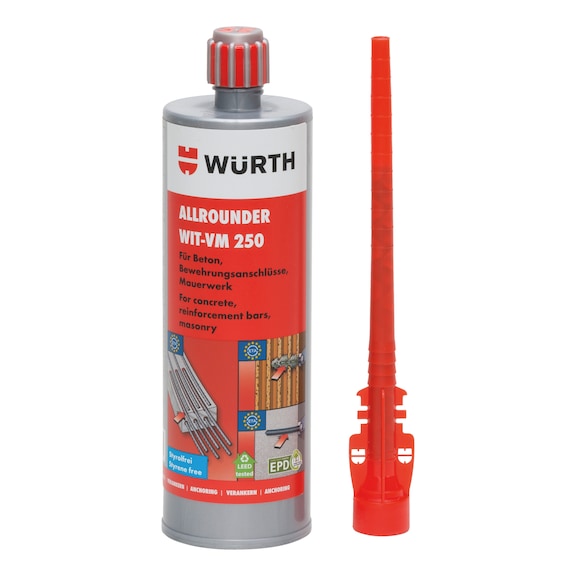

All-rounder Injectable Mortar WIT-VM 250 | Styrene-Free | 420 ml Cartridge | by Wurth
All-rounder Injectable Mortar WIT-VM 250 is a styrene-free vinyl ester resin mortar, perfect for concrete and masonry fixing. With a processing temperature range of -10 to 40 °C and long-term temperature resistance up to 72 °C, it ensures reliable anchoring in seismic performance category C1 applications. This 420 ml cartridge includes a mixer nozzle, making it ideal for professional use in construction and structural projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: All-rounder Injectable Mortar WIT-VM 250 | Styrene-Free | 420 ml Cartridge | by Wurth
Brand: Wurth
SKU: 903450205
Alternatively Known As: Injectable resin mortar, Vinyl ester mortar, Chemical anchor mortar, Post-installed rebar mortar, Styrene-free injectable mortar
Technical Specifications
- Type description: WIT-VM 250
- Contents: 420 ml mortar cartridge (coaxial) with 1 mixer nozzle
- Suitable application guns: Battery-powered 420 ml, MULTI, WIT 420 ml, Pneumatic 420 ml, EasyMax 420 ml, HandyMax 420 ml
- Processing temperature range: -10 to 40 °C (anchorage ground during processing and hardening)
- Ambient temperature range after curing: -40 to 120 °C
- Long-term temperature resistance: 72 °C
- Short-term temperature resistance: 120 °C
- Shelf life: 18 months when stored cool and dry (5°C to 25°C)
- Chemical basis: Vinylester, styrene free
- Colour: Grey
- Approvals: ETA-12/0164, ETA-13/1040, ETA-12/0166, ETA-16/0757, ETA-20/0854
- Dimensions (H x L x W): 250mm x 50mm x 50mm
- Weight: 1.2 kg
Key Features
- Two-component, styrene-free vinyl ester resin mortar
- Individual fixing points for concrete and masonry
- Compatible with various anchor rods including W-VD-A, W-VI-A, WIT-AS
- Suitable for seismic performance category C1
- Includes mortar cartridge and mixer nozzle
- Approved under multiple European Technical Assessments (ETA)
Professional Installation Requirements
- Professional installation by qualified personnel is required to ensure proper mixing, application, and curing according to manufacturer guidelines and safety standards.
Applications
- Concrete fixing and anchoring
- Masonry fixing with perforated sleeves
- Post-installed rebar connections
- Suitable for cracked and uncracked concrete
- Seismic performance category C1 applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Styrene-free formulation reduces harmful emissions
- Long shelf life reduces waste
- Durable chemical composition extends structural lifespan
Warranty Information
Warranty as per Wurth standard terms and conditions. Please refer to Wurth for detailed warranty information.
Available Now
The Wurth All-rounder Injectable Mortar WIT-VM 250 is available for immediate purchase. Ideal for construction and structural anchoring applications requiring high performance and seismic compliance.
