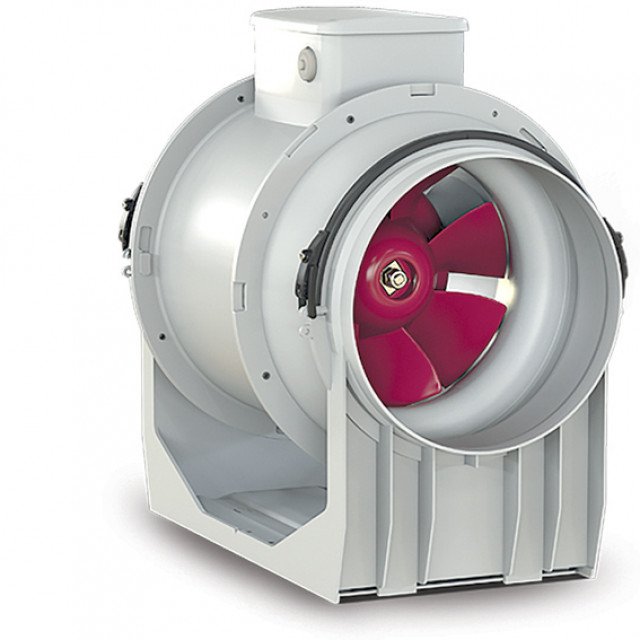

Inline Ventilation Fan Vortice Lineo 125 | 250 m³/h Max Airflow | Low Noise 27.5 dB | 25W Power by Allvent

BRAND: Allvent
SKU: ALV17145
$283.90 List price: $343.60
Free pick up (over 25 kg or over 1 meter)
For delivery quote message
30 Days Return Delivery Options
The Vortice Lineo 125 inline ventilation fan offers a powerful 250 m³/h airflow and operates at a low noise level of just 27.5 dB, making it ideal for residential ventilation in small spaces like bathrooms and kitchens. Built for efficiency and easy maintenance, this fan ensures optimal airflow while minimizing energy consumption.

Product Name/Title: Inline Ventilation Fan Vortice Lineo 125 | 250 m³/h Max Airflow | Low Noise 27.5 dB | 25W Power by Allvent

Brand: Allvent

SKU: ALV17145

Alternatively Known As: Vortice Lineo 125, Vortice Lineo 125 T, Residential Ventilation Fan, Inline Ventilation Fan

Technical Specifications
  • Voltage: 220–240V, 50/60Hz
  • Speed: Low
  • Motor Power: 25W
  • Current: 0.11 Amps
  • RPM: 1570
  • Max Airflow: 250 m³/h
  • Max Pressure: 69.4 Pa
  • Noise Level: 27.5 dB(A) at 3m
  • Max Operating Temperature: 33.9°C
  • Dimensions (H x L x W): 125mm x 150mm x 125mm
  • Weight: 60 kg
Key Features
  • Designed to fit into small spaces
  • Easily removed to facilitate maintenance
  • Optimised air flow for maximised performance and increased efficiency
  • Minimal noise emissions
  • High flow rates and flow around the axis of the impeller
  • Long-life motors with shafts mounted on ball bearings for virtually maintenance-free operation
  • Timer models available
Professional Installation Requirements
  • Professional installation by a qualified electrician or ventilation specialist is recommended to ensure optimal performance and compliance with local regulations.
Applications
  • Residential ventilation for small spaces
  • Ventilation in bathrooms, kitchens, and utility rooms
  • Suitable for residential buildings requiring efficient airflow
Standards & Compliance
  • Complies with AS/NZS 60335 for electrical safety of household and similar electrical appliances
Environmental Benefits
  • Optimised airflow reduces energy consumption
  • Long-life motor reduces waste and replacement frequency
  • Low noise emissions contribute to a better living environment
Warranty Information

Standard manufacturer warranty applies. Please refer to Allvent for specific warranty details.

Available Now

The Allvent Vortice Lineo Series is available now for immediate purchase. Ideal for residential ventilation applications requiring efficient airflow in compact spaces.

Exhaust Fan Airflow Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
