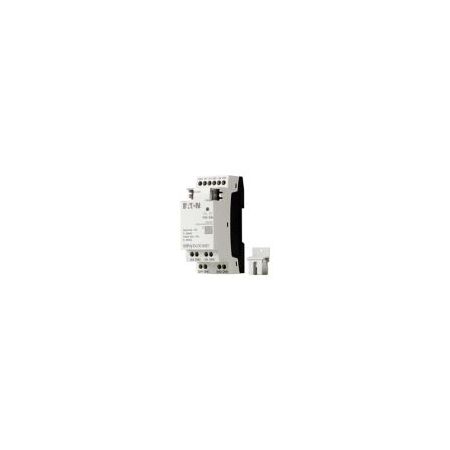

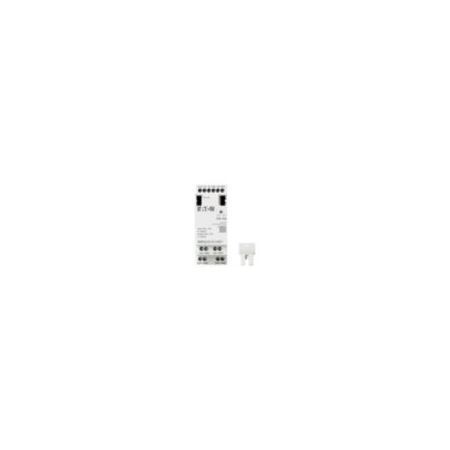

Input Module 28.8VDC 2.5W Eaton
Eaton C-Bus input unit features 2.5 W, 20.4 28.8 V DC, 4. Ideal for industrial automation systems requiring analog input expansion.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Power consumption: 2.5 W
- Rated operational voltage: 20.4 - 28.8 V DC
- Number of analog inputs: 4
- Resolution: 12 Bit (0 - 4095)
- Input impedance: 11.2 kΩ
- Signal range: 0-10 V DC, 0-20 mA, 4-20 mA
- Connection type: Screw terminal
- Degree of protection: IP20
- Shock resistance: 15 g, IEC/EN 60068-2-27
- Vibration resistance: 2 g constant acceleration, IEC/EN 60068-2-6
- Operating temperature: -25 °C to 55 °C
- Mounting: Rail, wall, or direct mounting
- Dimensions (H x L x W): 90mm x 58mm x 36mm
- Weight: 0.1 kg
Key Features
- Expandable I/O expansion device for easyE4 series
- 4 analog inputs with 12-bit resolution
- Supports TCP/IP MODBUS protocol
- Screw terminal connection
- IP20 degree of protection
- Shock and vibration resistant according to IEC/EN standards
- Operating temperature range from -25 °C to 55 °C
- Overvoltage category III and pollution degree 2
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation systems requiring analog input expansion
- Control relays and PLC systems using easyE4
- Factory and process control environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of 2.5 W reduces energy usage
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard Eaton warranty applies; refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller EASY I/O expansion module EASY-E4-DC-6AE1 is available for immediate purchase, ideal for industrial automation and control system expansions.
FAQ
Q: What analog input options does this expansion module support?
A: The Y7-197223 supports a signal range of 0-10V DC, 0-20mA, or 4-20mA across its 4 analog inputs with 12-bit resolution.
Q: What system is this module designed to expand?
A: It's an expandable I/O device for the Eaton easyE4 series, supporting TCP/IP MODBUS protocol, and is backed by SCHNAP's 30-day returns policy.
For 24V C-Bus systems on the Clipsal platform, a Clipsal C-Bus input board offers a comparable input option.
An NHP C-Bus input board provides an alternative wide-voltage option for similar automation setups.
A Schneider C-Bus input board suits installations already standardised on Schneider control hardware.
