Inspection Housing for Earth Connection | Lockable Lid & UV Stabilized | Lightweight Design by Cabac
The Cabac Inspection Housing is a lockable earth connection pit made from high-impact polypropylene, offering secure protection for grounding terminations with UV resistance and suitability for paving and hot tar applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

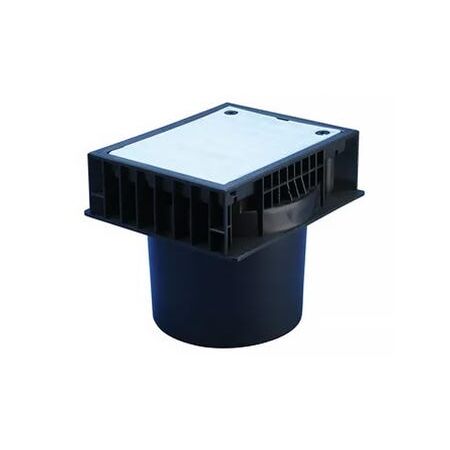

Product Name/Title: Inspection Housing, High-Impact Polypropylene, 216 mm x 241 mm x 208 mm
Brand: Cabac
SKU: ECB3
Alternatively Known As: Lockable Earth Connection Pit, Grounding Inspection Housing, Earthing Pit Box
Technical Specifications
- Material: High-Impact Polypropylene
- Height: 216 mm
- Length: 241 mm
- Width: 207 mm
- Lockable lid with security key access
- UV stabilized for sunlight resistance
- Dimensions (H x L x W): 216mm x 241mm x 207mm
- Weight: 1.2 kg
Key Features
- Lockable lid providing high security for earth connection pits
- UV-stabilized polypropylene material resists degradation from sunlight
- Lightweight design for easy handling, storage, and transportation
- Easy-locking lid accessible only with a security key
Professional Installation Requirements
- Installation should be performed by a qualified electrician or licensed professional to ensure compliance with electrical safety standards.
Applications
- Electrical grounding and earthing systems
- Protection of critical grounding terminations in residential, commercial, and industrial sites
- Suitable for installation in paving and hot tar applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable UV-stabilized polypropylene extends product life, reducing replacement frequency
- Lightweight design reduces transportation energy and associated emissions
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms for details.
Available Now
The Cabac Inspection Housing is available for immediate purchase, ideal for secure and durable earthing and grounding applications.
