Installation Contactors 24V AC | 25A to 63A Rated Current | 2 or 4 Contacts | IEC/EN 61095 by Noark
Installation contactors with 24V AC control coil and rated current options from 25A to 63A—ideal for industrial control systems and automation. Built for electrical installations requiring reliable switching, with compliance to IEC/EN 61095 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

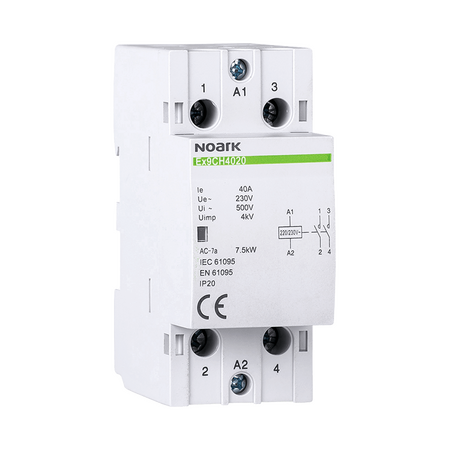

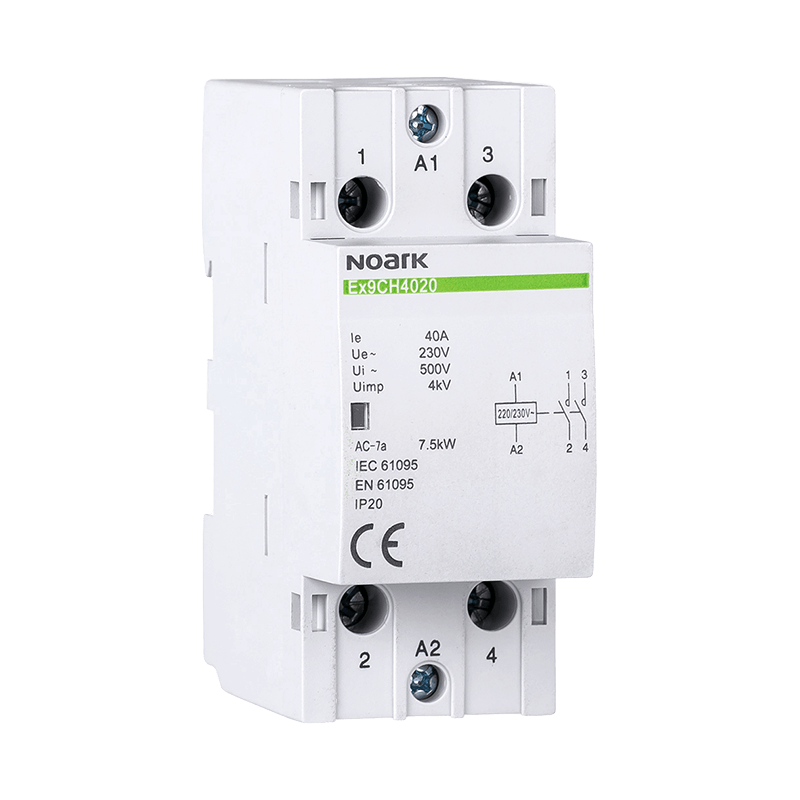

Product Name/Title: Ex9CH40 40 24V 50/60Hz
Brand: Noark
SKU: 102419
Alternatively Known As: Ex9CH Contactor, Noark Installation Contactor, Electrical Contactors 24V Coil
Technical Specifications
- Complies with IEC/EN 61095
- Contact versions: 2 or 4 contacts
- Rated current: 25A, 40A, 63A
- Control coil voltage: 24V AC, 240V AC
- Frequency: 50/60Hz
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.5 kg
Key Features
- Meets requirements of IEC/EN 61095
- Available in 2 or 4-contact versions
- Rated current options up to 25A, 40A, 63A
- Control coil voltage options of 24V and 240V AC
- Various contact combinations available
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial control systems
- Electrical installations requiring contactors
- Automation and motor control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed for energy-efficient switching to reduce power loss
- Durable construction extends product lifecycle reducing waste
Warranty Information
Standard manufacturer warranty applies, typically 1 year against defects.
Available Now
The Noark Ex9CH Installation Contactors are available for immediate purchase, ideal for industrial and commercial electrical control applications.
