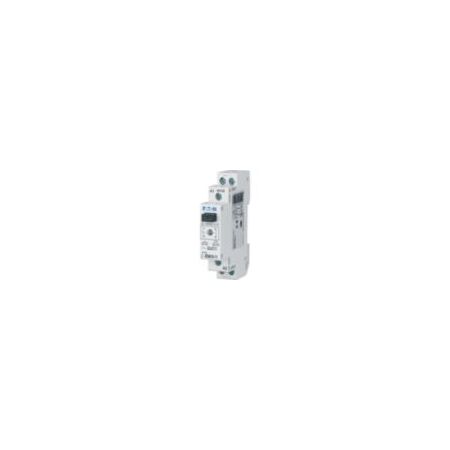

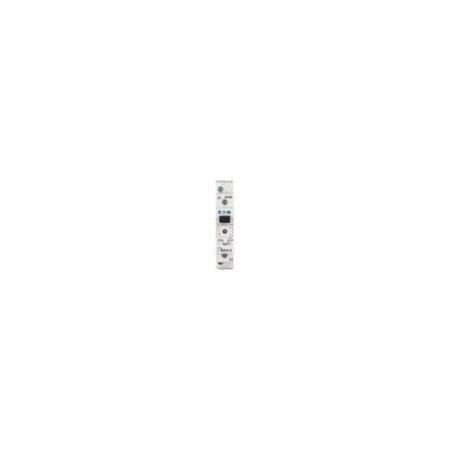

Installation Relay 16A | 230V AC Control Voltage | DIN Rail Mount | Low Heat Dissipation by Eaton
This 16A installation relay operates at 230V AC and features 2 normally open contacts—ideal for industrial control panels and automation systems. Built for reliable performance, it offers low heat dissipation and easy DIN rail mounting for efficient installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Installation Relay 16A | 230V AC Control Voltage | DIN Rail Mount | Low Heat Dissipation by Eaton
Brand: Eaton
SKU: ICS-R16A230B200
Alternatively Known As: Eaton 230V AC Relay, Eaton Installation Relay 16A, Eaton DIN Rail Relay, Z-R230 16A Relay
Technical Specifications
- Control voltage: 230 V AC (196 V min - 250 V max)
- Frequency: 50-60 Hz
- Number of contacts: 2 normally open (NO)
- Rated operational current: 16 A
- Incandescent lamp load max: 720 W
- Fluorescent lamp load max: 303 VA
- Fluorescent lamp (duo circuit) max: 541 VA
- Fluorescent lamp (parallel compensated) max: 271 VA
- Switching current (cos phi = 0.6) max: 5 A
- Mounting: DIN rail
- Width in modular spacings: 1
- Built-in depth: 60 mm
- Mechanical function relay
- Heat dissipation: 1.6 W
- Dimensions (H x L x W): 73mm x 90mm x 17.5mm
- Weight: 0.097 kg
Key Features
- Installation relay with 2 normally open (NO) contacts
- Rated operational current of 16 A
- Control voltage: 230 V AC
- Mechanical function relay
- Mounting method: DIN rail
- Low heat dissipation of 1.6 W
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with DIN rail mounted electrical components and relevant safety standards.
Applications
- Industrial control panels
- Electrical distribution systems
- Automation and machinery control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Low power heat dissipation improves energy efficiency
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Z-R230/16-20 installation relay is available now for immediate purchase. Ideal for industrial and commercial electrical control panel applications.
